Overview
HBO HF-50K electronic tension meter is an upgraded version of HG series electronic tension meter. It is a Portable push-pull load detection instrument. It can be used for push-pull load test, insertion and unplugging force test, failure test of various products, etc., and can be combined with different brackets or fixtures to form a small experimental machine. The remarkable feature of HF series electronic tension meter is that it can maintain the first peak during the test and can perform key action force and rebound force test, realizing 200 sets of Data storage functions. The load value of the HF-50K electronic tension meter is 5000kg, and the Measured value range is wide, which is convenient to operate.
Features
1. High Accuracy High resolution, Stability, sampling speed up to 960HZ
2. With button pressure and resilience test function
3. Operating interface Chinese and English display can be selected, and the display test content can be flipped 180 degrees, which is convenient for multi-angle observation
4. point array LCD, green backlight screen
5. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
6. Test direction display (pull, thrust)
7. Four test modes: real-time force tracking mode, peak hold mode, first peak mode, button pressure-rebound mode
8. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
9. Store 200 sets of test data and automatically calculate the average, MAX Maximum and MIN Minimum of the stored data
10. Peak hold time can be set (can be set from 0 to 99 seconds)
11. Gravity acceleration value can be set
12. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
13. Limit protection: with over-range sound alarm and mechanical two-level limit protection

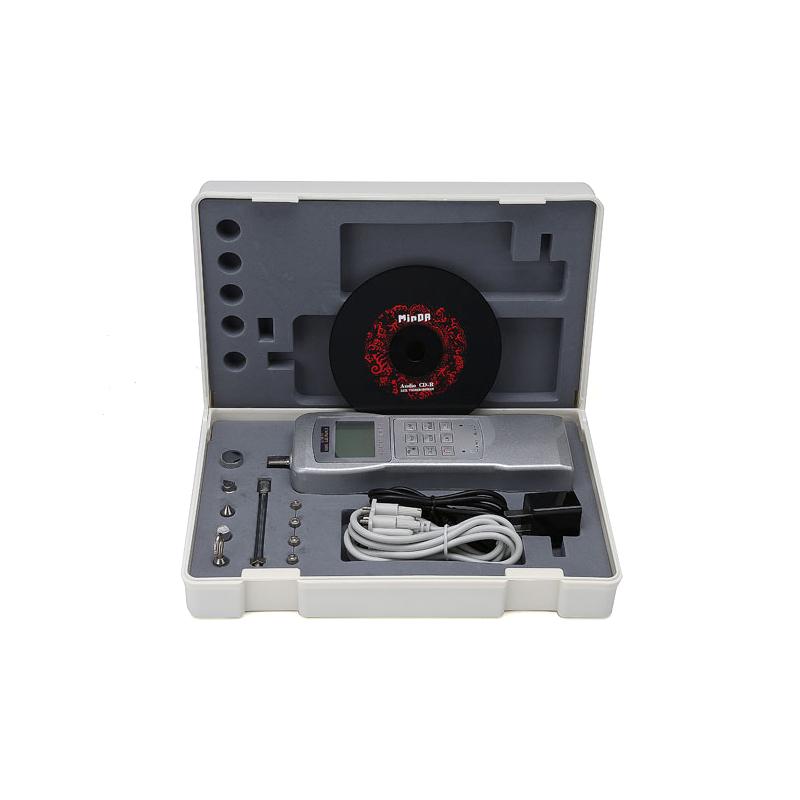

14. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry
15. Smart Charging, Safe Charging, Extend Battery life
16. With the company's electric testing device, it can realize various new practical functions such as stop or reset when the tested product is damaged, stop or reset when it reaches the preset force value, fatigue test, etc
17. Host computer software: Chinese WINDOWS interface
18. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
19. Qualification judgment: In addition to automatically obtaining the test results, the qualified judgment and batch inspection pass rate can be made according to the qualified range of the preset Standard value
20. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
21. Test data: The data obtained from the test can be queried and exported in excel format
22. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle

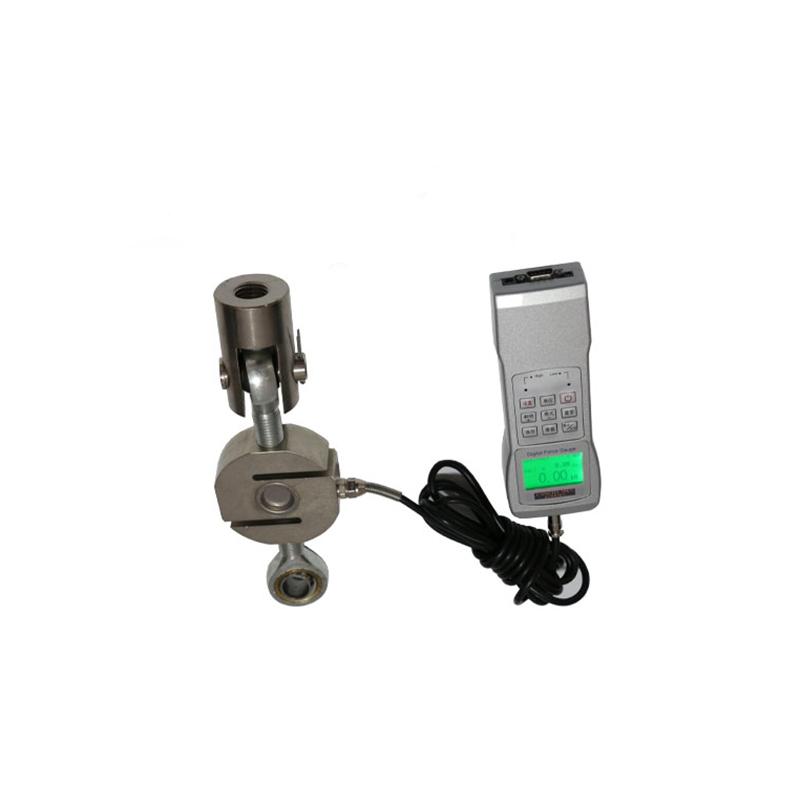

The HBO HF-50K electronic tension meter uses the external Sensor structure to detect the push-pull load. It uses High Accuracy sampling technology (sampling speed up to 960HZ) to measure the force value in real time, and processes and displays the data according to the selected test mode (such as real-time force value tracking, peak holding, first peak or key pressure-rebound force mode). The instrument displays the test value, unit, battery level, storage number, Operating Mode and other information through the point array LCD display, and supports Data storage, qualified judgment and alarm functions.
Applications
Chemical, Machinery, Construction, Electronics, Hardware, Auto Parts, Fire Protection Devices, Scientific Research Institutions
Steps
1. Select the test mode: real-time force tracking mode, peak hold mode, first peak mode or button pressure-rebound mode
2. Set the unit: select the desired unit in N, KN, Kgf, gf, lbf, tf
3. Perform a push-pull load test and observe the test value reading area, direction symbol and mode indication in the display window
4. Use the Data storage function to record test results, up to 200 sets of data can be stored
5. Export data or generate test reports through the host computer software
Notice
• Charge in time when the battery power indicator is low, and automatically shut down when the power is exhausted
• The working environment should be free of vibration and corrosion medium
• Operating temperature is 0~ 40 ℃, storage temperature is -20~ 70 ℃
• The relative humidity should be kept at 15% to 80%
• Smart charging with a dedicated charger to extend Battery life
• Pay attention to the sound alarm and limit protection mechanism when exceeding the range
