Overview

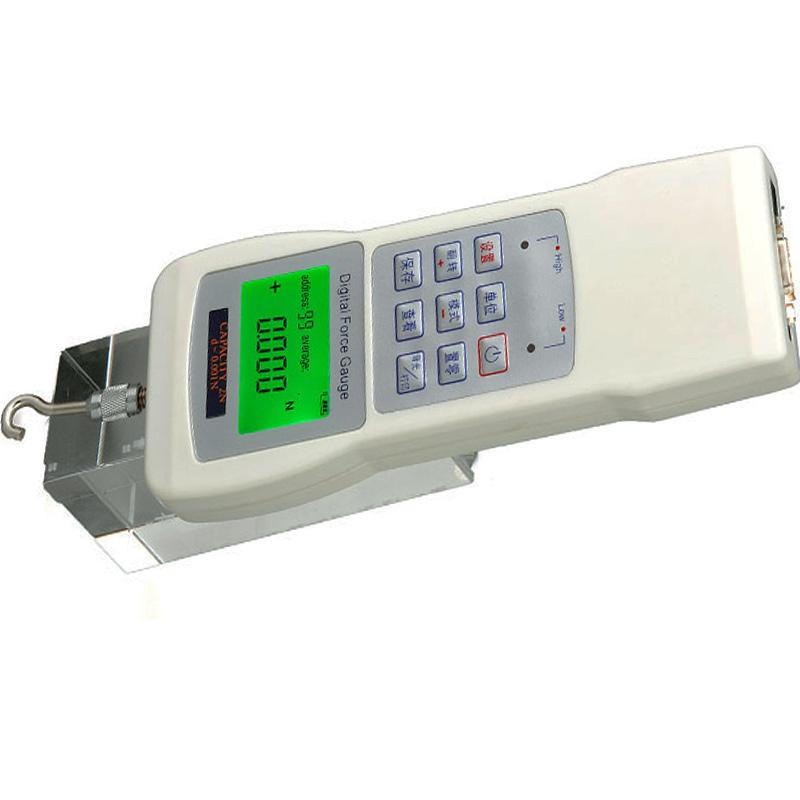

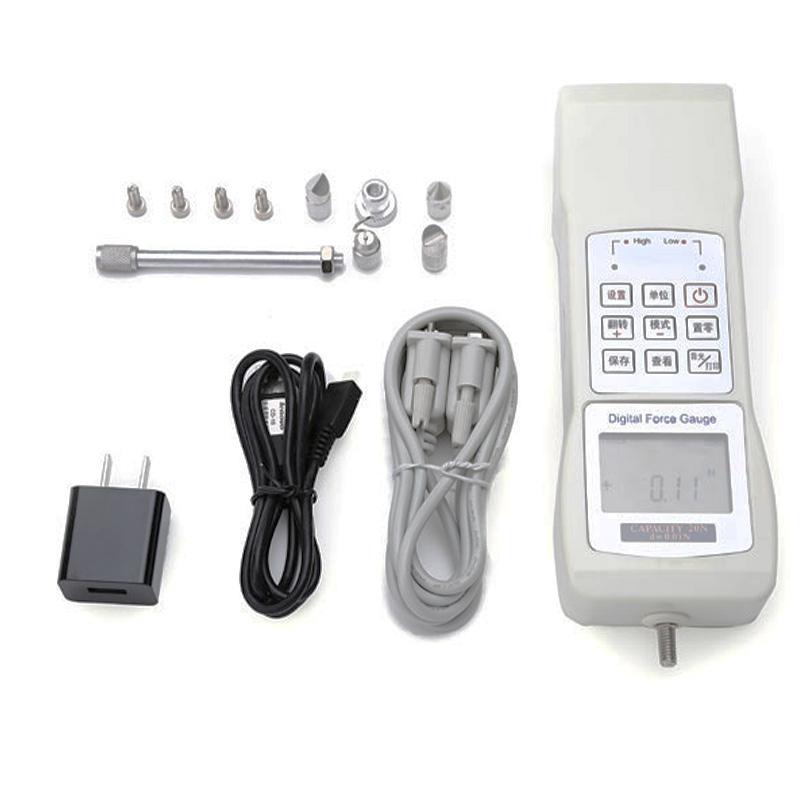

The HBO HF-100K Force Gauge is a wheel-mounted tensile tester designed with an external Sensor. The Sensor is wheel-shaped and is dedicated to the measurement of test sites with large load values. The maximum measurement load value of this model can reach 100KN, which is one of the high-load tensile testers in the Hypertherm HF series.
Features
1. High Accuracy High resolution, Stability, sampling speed up to 960HZ
2. With button pressure and resilience test function
3. Operating interface Chinese and English display optional, test content can be flipped 180 degrees, easy to observe from multiple angles
4. point array LCD, green backlight screen
5. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
6. Test direction display (pull, thrust)
7. Four test modes: real-time force tracking mode, peak hold mode, first peak mode, button pressure-rebound mode
8. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
9. Store 200 sets of test data, automatically calculate the average, MAX Maximum and MIN Minimum
10. Peak hold time can be set (0 to 99 seconds)
11. Gravity acceleration value can be set
12. Automatic shutdown without operation can be set (0~ 99 minutes)
13. Limit protection: with over-range sound alarm and mechanical two-level limit protection

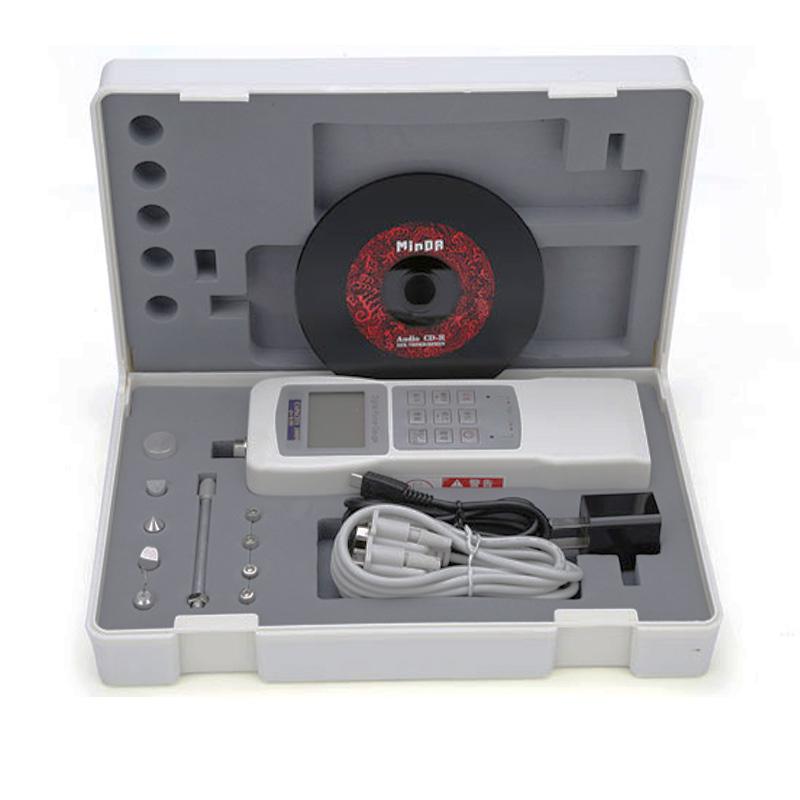

14. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry
15. Smart Charging for Safe Charging and Extended Battery life
16. With the electric testing device, it can realize the functions of stop after destruction, stop the preset force value, fatigue test and so on
17. Host computer software: Chinese WINDOWS interface
18. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
19. Qualification judgment: according to the preset Standard value automatically judge qualified and batch detection pass rate
20. Automatic storage: Test data and Linear dispersion are automatically stored to the computer, and the number of storage is unlimited
21. Test data can be queried and exported in excel format
22. Test reports can be prepared and printed according to user requirements
Principle

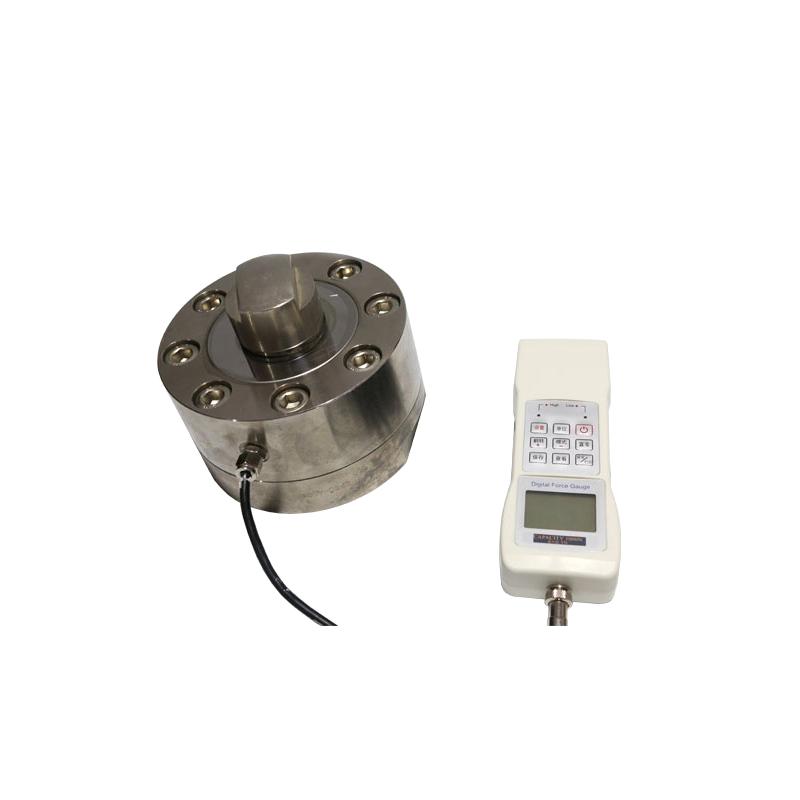

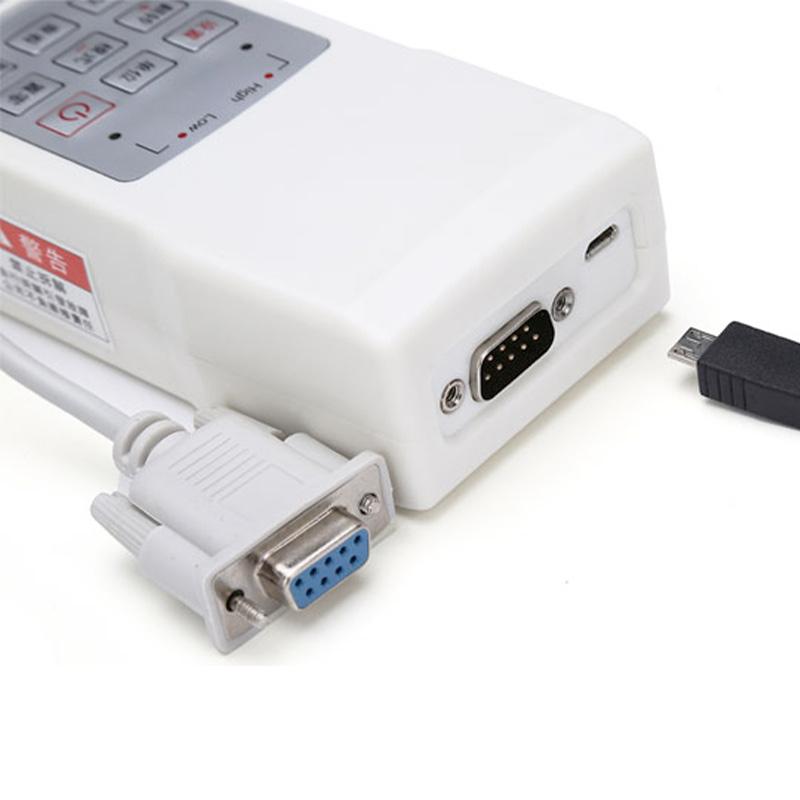

HBO HF-100K Force Gauge adopts wheel-width Sensor structure, through external Sensor measurement force value, real-time data acquisition and processing display. With level signal output interface and Communication interface, data transmission and external device control are realized.
Steps
1. Connect Sensors and Test Equipment
2. Power on and select the display language and unit
3. Set the test mode (real-time force tracking, peak hold, first peak, button pressure-rebound)
4. Set the upper and lower limit comparison value, peak holding time, gravitational acceleration and other parameters as needed
5. Start the test and observe the display data
6. View stored data or export results after the test is completed
7. Turn off the machine after use and store it properly
Notice
• The working environment should be free of vibration and corrosion medium
• Operating temperature range is 0~ 40 ℃
• Storage Temperature range -20~ 70 ℃
• The relative humidity should be kept at 15% to 80%
• Charge with a dedicated charger
• Pay attention to over-range protection to avoid damage to the equipment
• Measurement accuracy calibrated regularly
