Overview

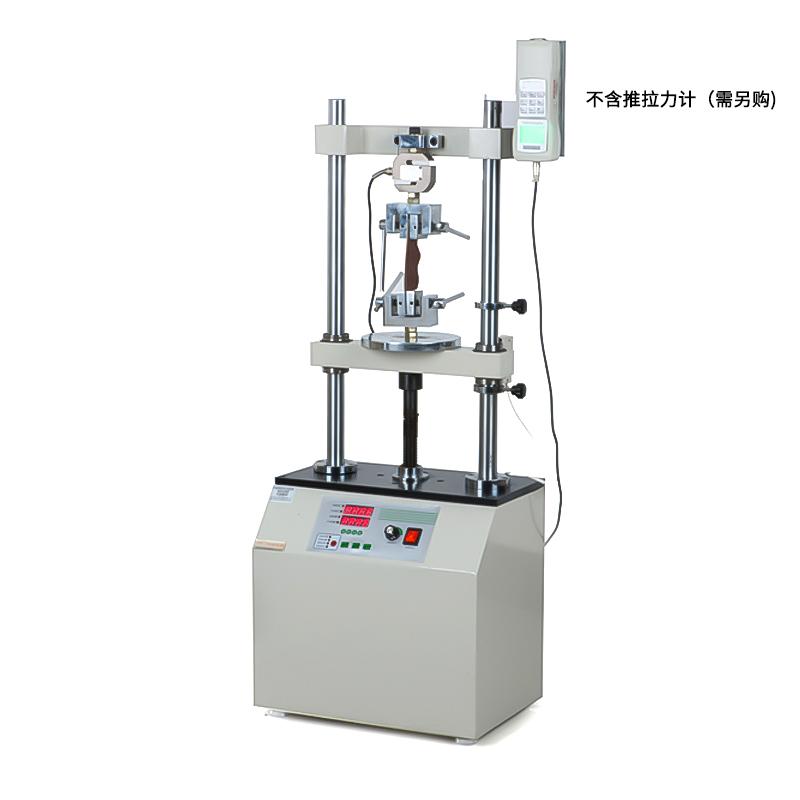

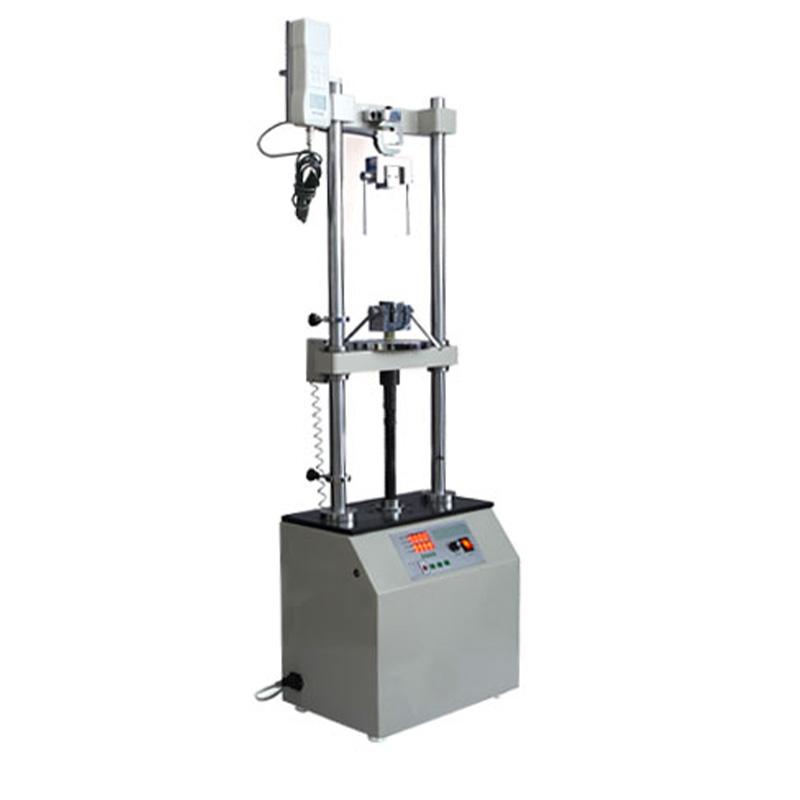

The HDD-5K electric double-column vertical machine is a test equipment designed and produced by HBO for HF, HG, and NK series Force Gauge. It adopts a double guide rod structure and has the characteristics of good Stability and wide applicability. The machine is equipped with a digital tube screen to display the test load value in real time, and can be equipped with a digital display Force Gauge to realize various functions such as pull-off and stop, force value maintenance, force limit, fatigue test, etc. It is widely used in tensile force, pressure, and destructive force tests of the tested object.
Features

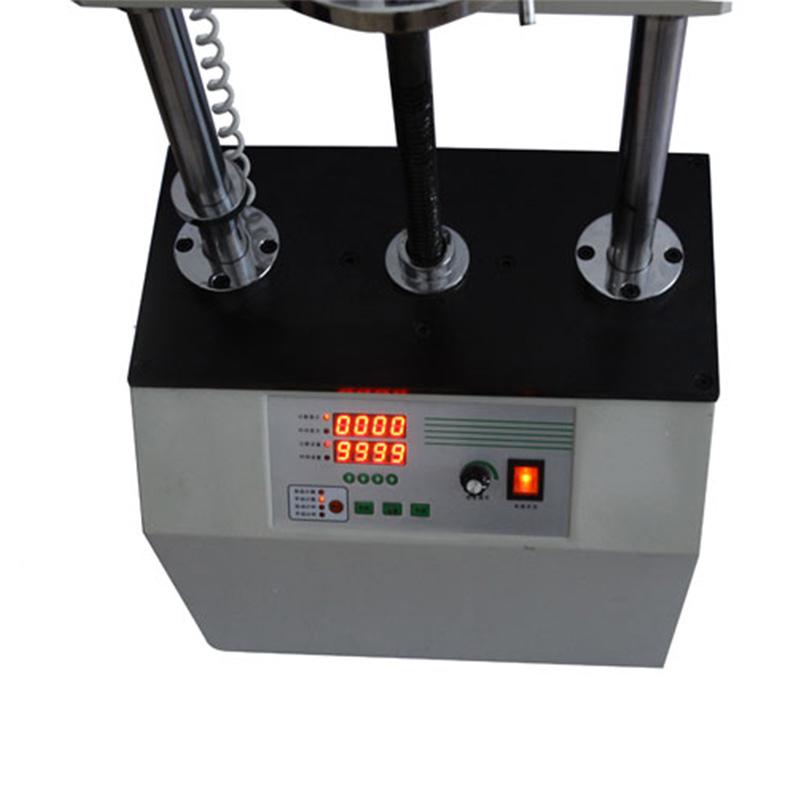

1. Digital tube screen display
2. Four test modes: automatic counting mode, automatic timing mode, manual counting mode, manual timing mode
3. Test speed adjustable (stepless speed regulation)
4. Timing and counting round-trip test
5. It can be pointed and operated automatically, which is convenient for adjusting the upper and lower positions of the fixture before the test
6. The pause time during the sample batch test can be set, and the sample clamping time can be customized
7. The loading force can be set (the force value can be controlled), and the beam remains stationary when the preset force is reached (the holding time can be set) or returns to the origin
8. Force holding function: Loading force holding time can be freely set
9. Set the force value round-trip function: when the equipment runs to the specified force value, the force value, holding time, and the number of movements can be freely set
10. Pull and break and stop function: after the measured object is discharged, the beam remains stationary or returns to the origin
11. Equipped with limit protection device, leakage protection device
12. Optional micro printer, matching the company's corresponding digital display Force Gauge, can print test data
Principle
The HDD-5K electric double-column vertical machine drives the double guide rod structure through electric loading to realize up and down movement for tension or stress testing. The supporting digital display Force Gauge monitors the force value in real time, and automatically performs corresponding actions when the preset conditions are reached, such as maintaining the force value, returning to the origin or stopping operation.
Applications
Tensile test, pressure test, destructive force test
Steps
1. Equipped with the required model Hypertherm Force Gauge
2. Install the tensile gauge and machine fixture
3. Fix both ends of the specimen and fixture
4. Travel limit protection switch
5. Turn on the total power supply of the machine and the power supply of the tension meter, and set the functional parameters of the electric double-column vertical machine HDD-5K
6. Press the forward or backward button to start the test test
7. After the electric double-column vertical machine HDD-5K is completed, press the forward or backward button to return the machine to its original initial state
Notice
• Install the Force Gauge and Fixture correctly before use
• Ensure that the specimen is firmly fixed at both ends of the fixture
• Travel limit protection switch must be adjusted
• Check whether the power connection is safe before operation
• After the test is completed, the machine needs to return to the initial state
