Overview

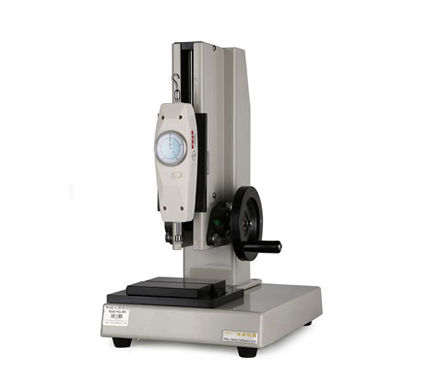

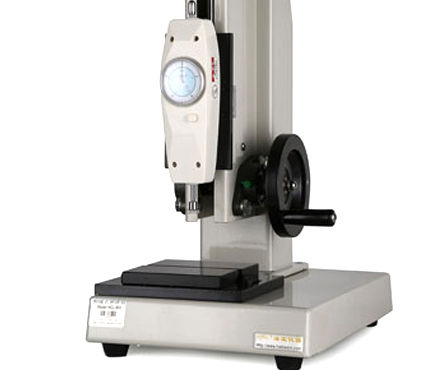

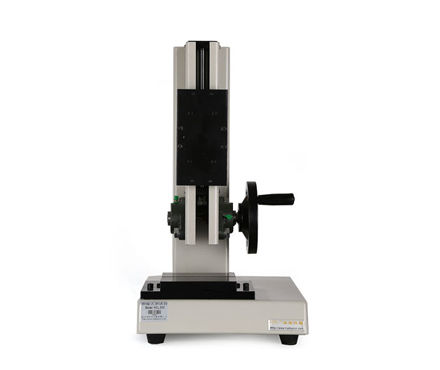

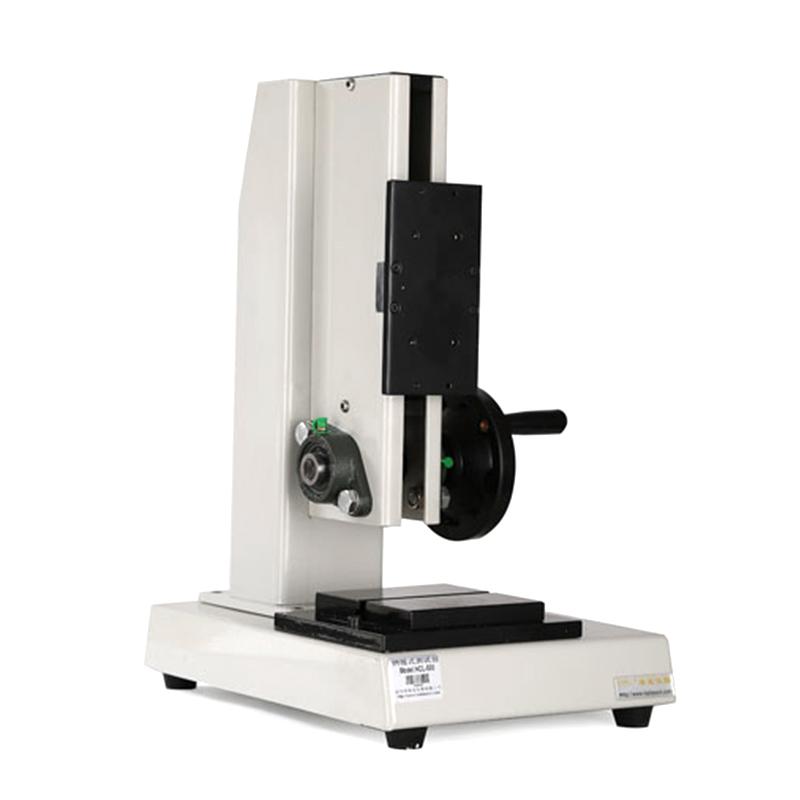

The Hypertherm HCL-500 side-rolling spiral test bench is a manual vertical structure test bench with a large base, which can be used for tensile test with different Force Gauges. The test bench is loaded by side handwheels, the base is a mobile platform, the rated load is 500N, and the Test Travel is 250mm. It is suitable for testing work such as insertion and unplugging force, pressing pressure, and failure test.
Features
1. Large Base, High Stability, Can be Tested and Used on Indoor Table
2. The trapezoidal screw rotates, the side handwheel is loaded, and the operation is stable and simple

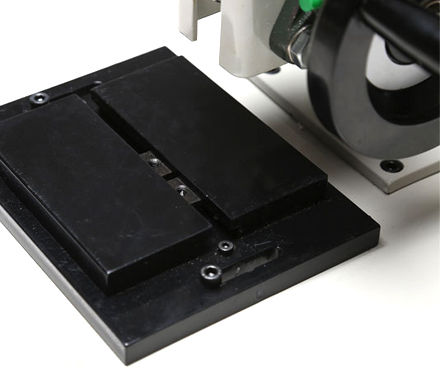

3. The base is equipped with a mobile platform as standard, which can be moved left and right, back and forth, and is convenient for accurate clamping
4. Can be installed on the table for use, making the test more stable
Principle
The side handwheel drives the trapezoidal screw to rotate, realizes the loading function, and carries out tensile test with Force Gauge.
Applications
Insertion force test, stress testing, failure test
Steps
1. Install the test bench on the desktop or in a suitable location
2, with the corresponding Force Gauge clamping
3. Loading operation through the side handwheel
4. Clean all components in a timely manner after completing the test
Notice
• Rated load is 500N, do not overload
• Clean all parts in time after use
• If the operation of the machine is sluggish and inflexible, a little lubricating oil can be added to the refueling holes on the bearing seats on both sides of the machine
