Overview

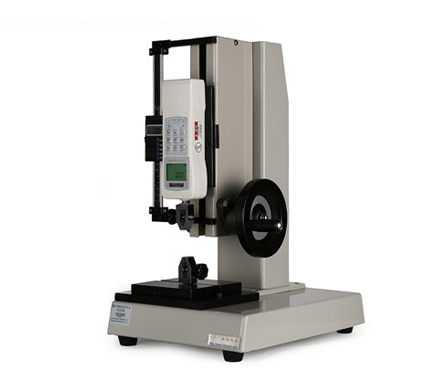

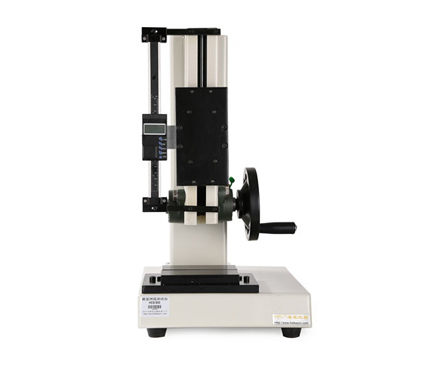

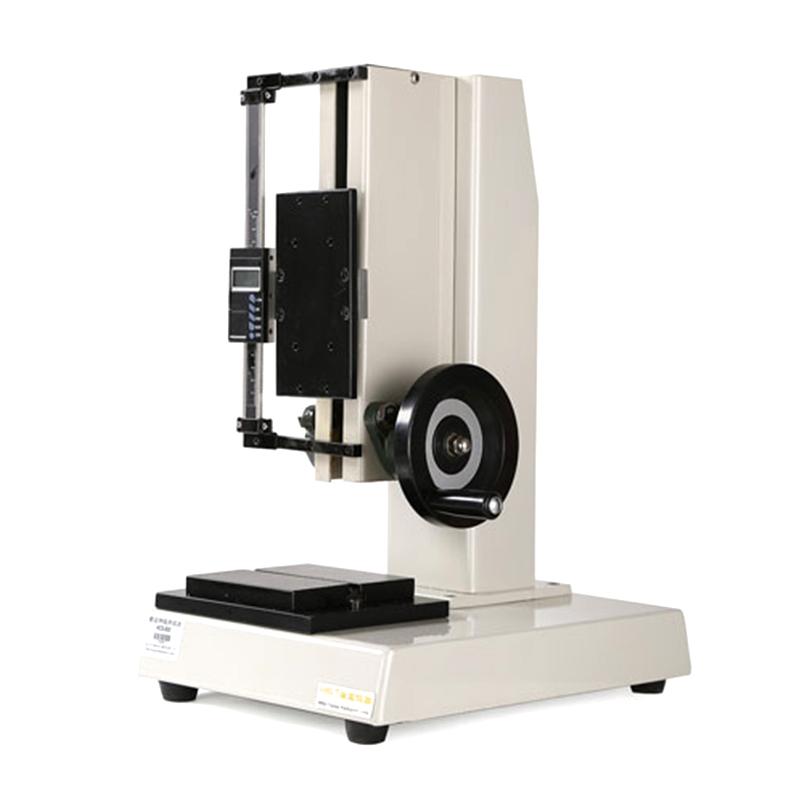

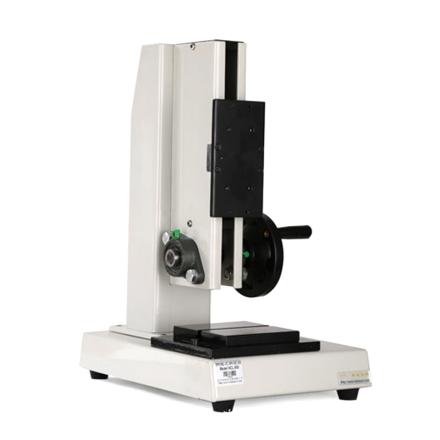

HCS-500 digital side-rolling spiral test bench is an upgraded product equipped with digital display ruler on the basis of HCL-500, which can collect test data and display displacement, and support the comparison test of different workpieces under the same displacement. The test bench is suitable for HF series, HG series, NK series thrust force gauges, and can form a Universal Testing Machine with a maximum measurement load of 500N.
Features
1. Stability of the machine base, side handwheel loading, simple and convenient operation, suitable for indoor table test

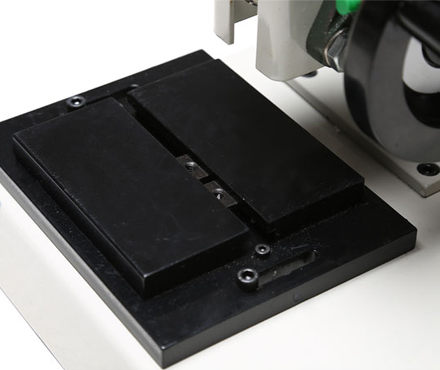

2. The base is equipped with a mobile platform as standard, which can move freely left and right, front and rear, which is convenient for installing fixtures

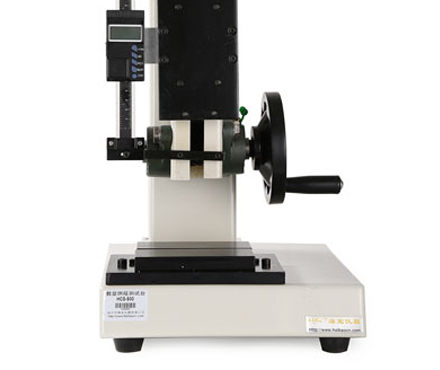

3. Equipped with a digital display ruler, capable of collecting and forming data
4. Suitable for insertion force, pressing pressure, failure test, etc
Principle
The test bench is driven by the side hand wheel loading mode, and the digital ruler collects and displays the displacement data in real time to realize the mechanical properties test of the workpiece.
Applications
Insertion force test, stress testing, failure test
Steps
1. Install Force Gauge (to be purchased separately) on the Force Gauge mounting board
2. Adjust the fixture position through the base moving platform
3. Turn the handwheel for loading test
4. Observe the displacement data collected by the digital display ruler
Notice
• Force Gauge to be purchased separately
• Test space is 210mm (excluding fixtures)
• Maximum measurement load does not exceed 500N
• Pay attention to the loading force control of the handwheel during operation
