Overview

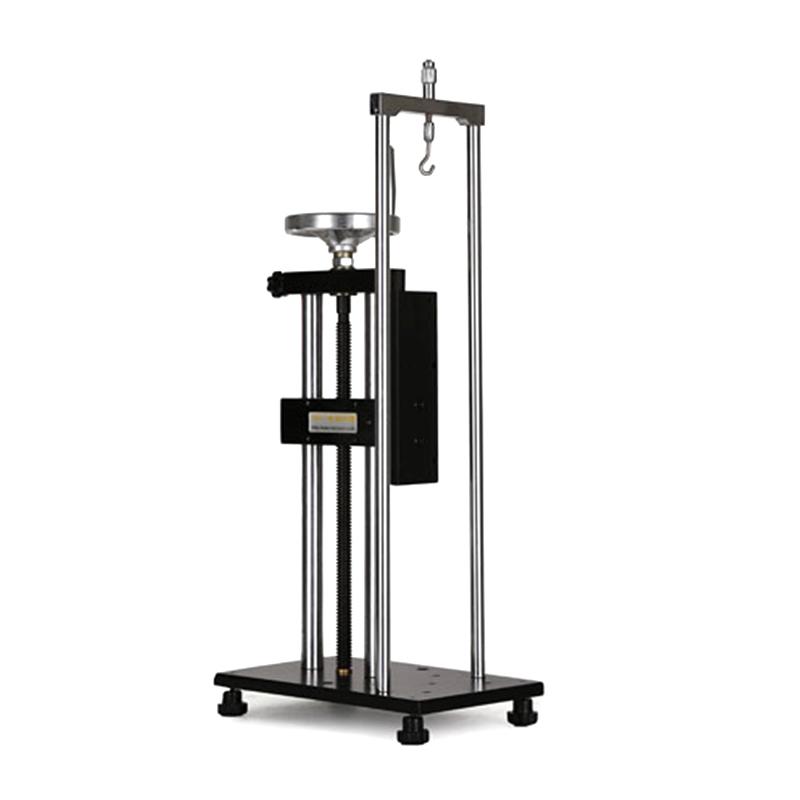

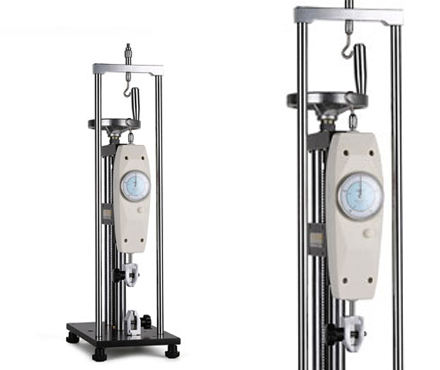

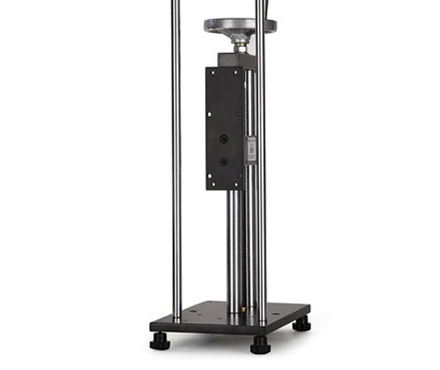

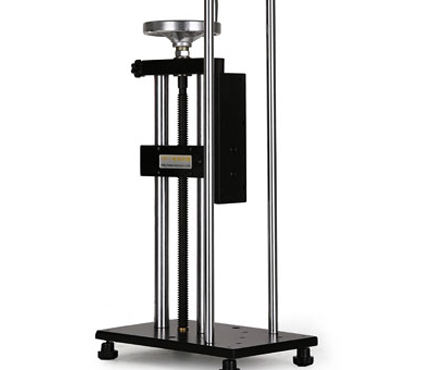

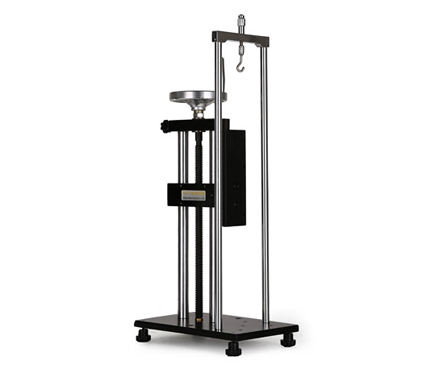

HLX-J spiral tension and compression test stand is a vertical and lying dual-use testing device specially used by HBO for Force Gauge, with a rated load of 500N and a Test Travel range of 0~ 200mm. The product adopts a handwheel swirl/spin screw to drive the Force Gauge up and down, which can effectively control the displacement. With the fixture, it can be tested for tension and compression load and damage. It has the characteristics of smooth operation, simple operation, and convenient mobile installation.
Features
1. Vertical horizontal dual-use design
2. Smooth and reliable operation
3. Simple and convenient operation
4. Easy mobile installation
5. Handwheel swirl/spin screw control displacement
Principle
Through the handwheel on the swirl/spin table, the screw is driven to make the Force Gauge move up and down smoothly to realize the tensile and compressive load test of the tested product. Users can place it in a suitable position on the table according to the product characteristics and complete the test work through handwheel control.
Applications
All walks of life, scientific research institutions of tension and compression load testing, insertion force testing, failure testing
Steps
1. Place it in a suitable position on the workbench according to the characteristics of the tested product
2. hand wheel on swirl/spin table
3. Force Gauge smooth up and down movement to complete the test
Notice
• Pay attention to keep all parts of the workbench clean
• When you feel that the movement of the worktable is sluggish and inflexible, please add a little oil lubrication at the connection between the guide rail and the guide sleeve (there is an oil storage tank on the copper guide sleeve)
