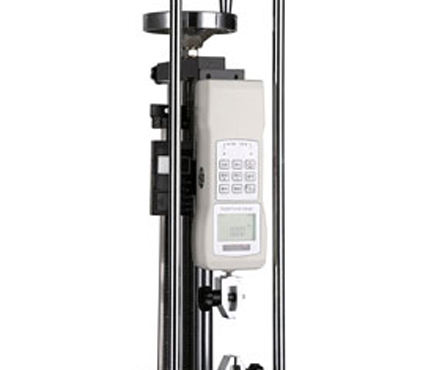

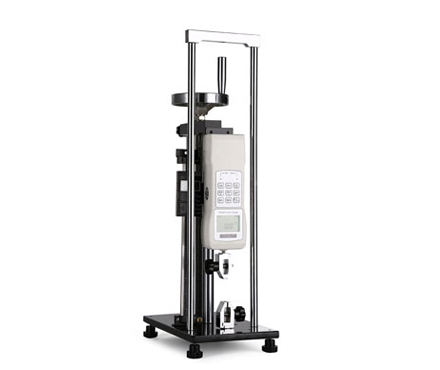

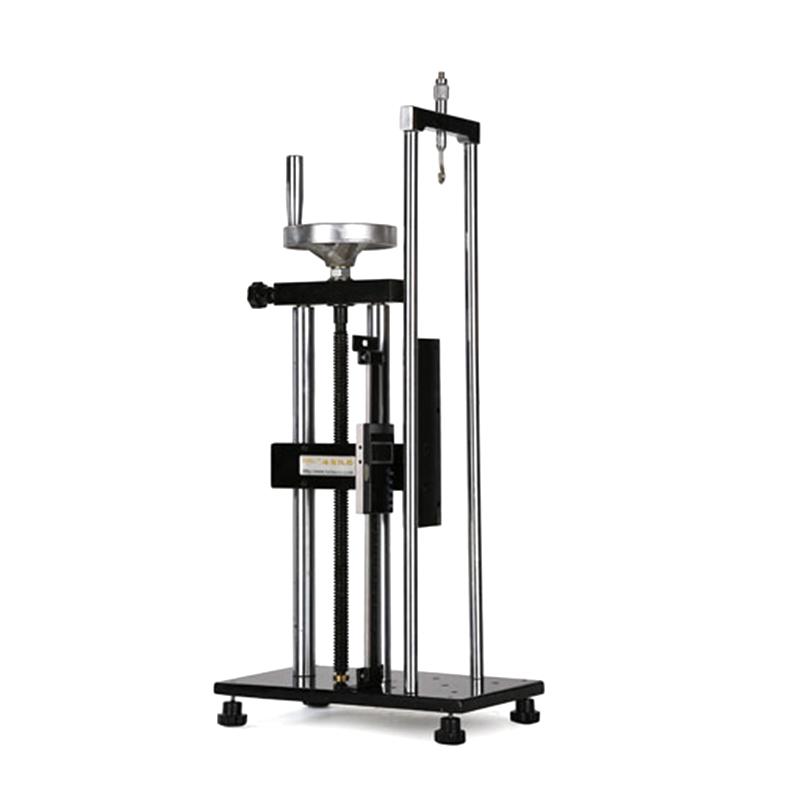

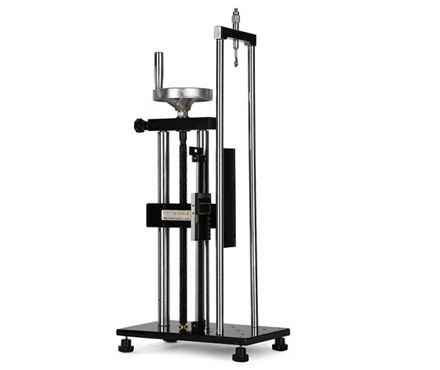

HBO HLX-S spiral tension and compression test stand, digital display ruler, maximum load 500N tension Travel 200mm

Name: HBO HLX-S spiral tension and compression test stand, digital display ruler, maximum load 500N tension Travel 200mm
Brand: HBO
SKU: NB001376
Price: 200.0 USD
Availability: InStock

$ 200.00Ex works

Adopting spiral trapezoidal screw, it has the characteristics of manual operation, simple stability, vertical and lying dual-use, the maximum load is 500N, and the tensile force is Travel 200mm. It is suitable for tensile and compressive load, insertion and unplugging force, and failure test.

Model

HLX-S
HLX-J

Get Quote

Category : Push-Pull Gauge

Brand : HBO

SKU : NB001376

Service :The delivery and service By NBCLab.Com

Overview

HBO HLX-S digital display spiral tensile and compression test stand is a spiral tensile and compression test stand with digital display ruler. It is specially designed to match imported and Chinese pointers, digital display push-pull Force Gauge (0-500N). It is suitable for all walks of life and scientific research institutions to carry out tensile and compression load, insertion and unplugging force, failure test test, etc. The maximum load of the test stand is 500N, and the test tensile force Travel is 200mm. It has the characteristics of vertical horizontal dual-use, simple operation and stable test.

Features

1. Adopt a spiral ladder screw 2. It has the characteristics of manual operation, simple and stable, vertical and lying dual-use, etc 3. Suitable for all walks of life and scientific research institutions for tensile and compressive load, insertion force, failure test, etc

Principle

The HLX-S digital display spiral tension and compression test stand drives the Force Gauge up and down smoothly through the handwheel on the swirl/spin table to realize the test work in both pulling and pressing directions.

Steps

1. According to the characteristics of the product to be tested, place the test stand in the appropriate position on the workbench 2. The handwheel on the swirl/spin table, the Force Gauge will move up and down smoothly to complete the test work

Maximum load
500N / 50Kg
Digital ruler
150Mm (resolution 0.01mm)
loading method
Handwheel rotation
Size
240*150*500mm
weight
About 9kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
