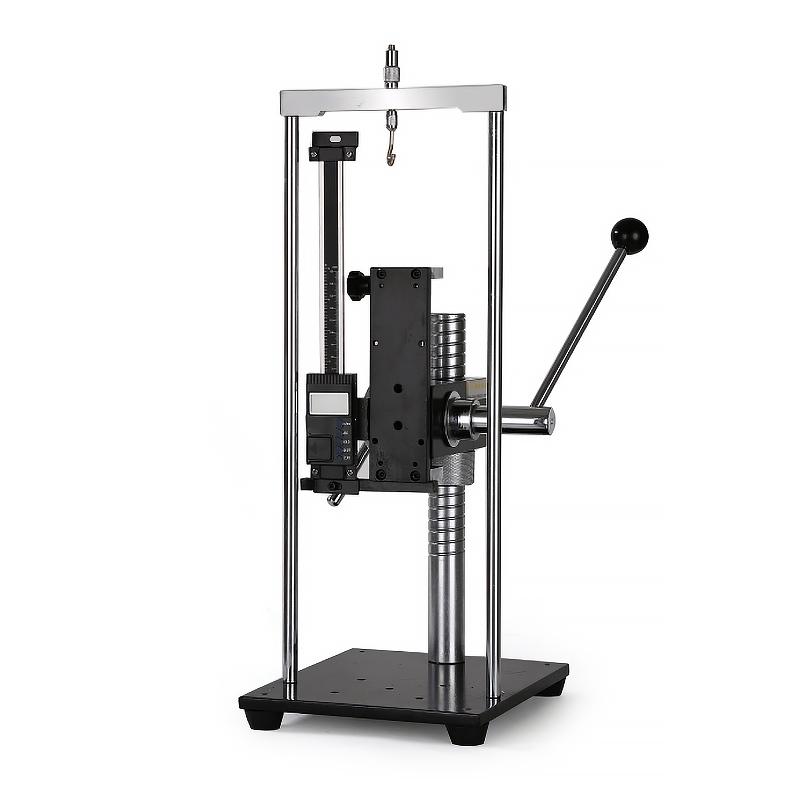

HBO HST-S Hand Pressure Tensile and Compression Test Rack Digital Ruler 500N Load 200mm Travel

Name: HBO HST-S Hand Pressure Tensile and Compression Test Rack Digital Ruler 500N Load 200mm Travel
Brand: HBO
SKU: NB001378
Price: 245.0 USD
Availability: InStock

$ 245.00Ex works

Hand pressure type is easy to operate, the rack and pinion transmission is smooth, the digital display ruler can display the displacement and lock the Travel, the maximum test load is 500N, the measurement Travel is 200mm, and the base is stable and the fuselage is heavy.

Model

HST-S
HST-J

Get Quote

Category : Push-Pull Gauge

Brand : HBO

SKU : NB001378

Service :The delivery and service By NBCLab.Com

Overview

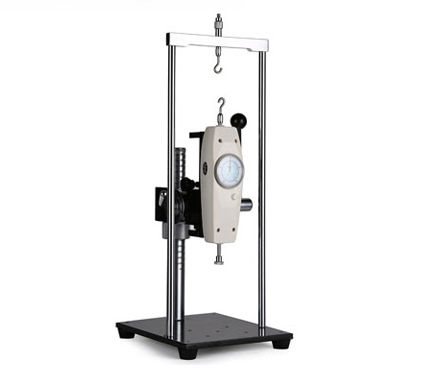

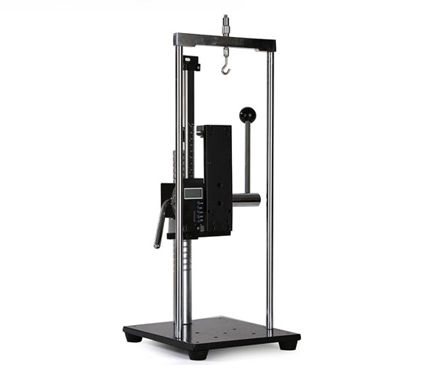

The HBO HST-S Hand Pressed Tension and Compression Test Rack is a test device with a digital scale that can display the measured force value and displacement at the same time. The test rack can be locked to Travel for easy comparison of tensile values of different test pieces under the same displacement. The test load is 500N and the measurement Travel is 200mm.

Features

1. Simple operation - hand pressure operation 2. Smooth operation - rack and pinion rotation 3. Display ruler - digital display 4. Stable installation - base, large feet, heavy fuselage

Principle

Drive the rack and pinion to rotate by hand pressure, and drive Force Gauge to conduct tension and compression tests. During the test, Force Gauge displays the force value, and the digital ruler displays the displacement. The actual displacement of the measured object is calculated by the formula.

Steps

1. Install the Force Gauge on the test stand and select the appropriate fixture to install it on the Force Gauge. 2. Swirl/spin the nut up and down to make the fixture come into contact with the object under test, and then clear the digital ruler to start the test. 3. The value displayed by the Force Gauge is the measured force value. 4. Displacement calculation: displacement mm = scale reading mm- {measured force value (N)/push-pull force Measurement range (N) } × 10mm

Notice

• Ensure that the test rack is firmly installed • The digital display ruler needs to be cleared before the test • To calculate the displacement correctly, subtract the displacement of the Force Gauge itself • Note that the test load does not exceed 500N

Maximum load
500N / 50Kg
Digital ruler
without
Test space
190Mm (excluding fixture)
Travel
75mm
loading method
Hand pressure
Size
255*240*503mm
weight
About 12kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
