Overview

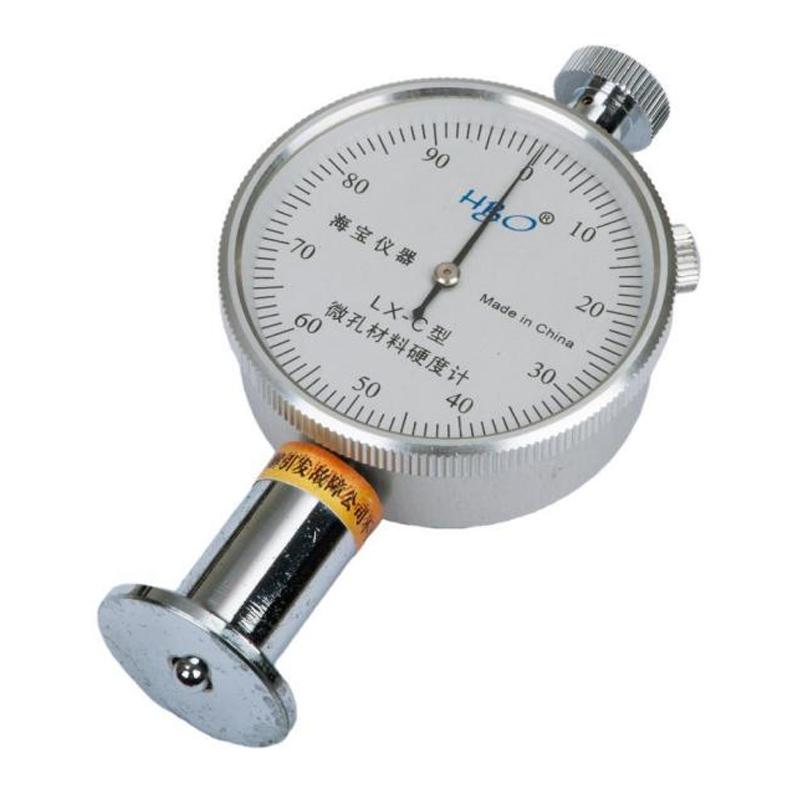

LX-C microporous material hardness gauge is a kind of equipment for measuring the hardness of materials produced by HBO brand. It is suitable for measuring the hardness of rubber and plastic microporous materials and is widely used in various mass testing, physical experiments and other fields.
Features
1. Measurement range 20-90HC
2. Resolution 1HC
3. Indication Error ≤ +/- 1HC
4. Dimensions are small, only 113 * 60 * 24mm
5. Lightweight, only 0.2kg
Principle

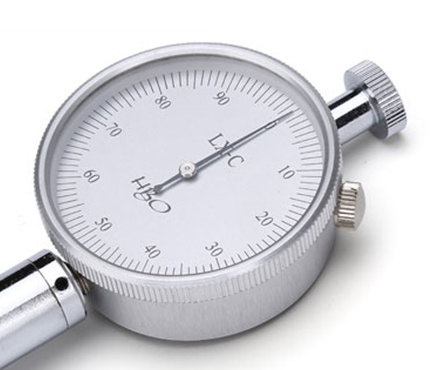

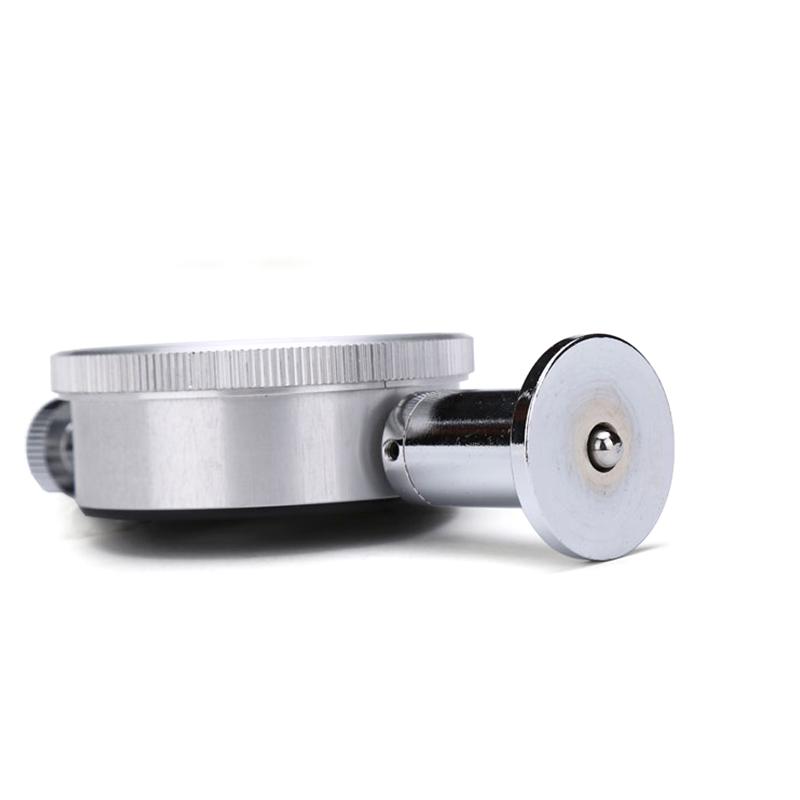

The hardness gauge applies pressure to the surface of the microporous material by pressing the needle, and displays the Hardness value on the dial through the pointer according to the degree of deformation of the material, so as to realize the Hardness measurement function.
Standards
HG/T2489-2007 Test method for microporous hardness of materials for shoes
Steps
1. Check whether the pointer indicates the zero position in the free state
2. If there is a slight deviation, loosen the compression screw, turn the dial to align with the zero position, and then tighten the compression screw
3. Press the hardness gauge on the flat reference plane to verify that the pointer should refer to 100 +/- 1Hc
4. Measurement range 10Hc-90Hc
Notice
• You must check whether the pointer points to the zero position before use
• When pressed on the reference plane, the pointer should refer to 100 +/- 1Hc, otherwise it cannot be used
Measurement range is 10Hc-90Hc, beyond the range Miscellaneous Measuring method
• If it cannot be displayed accurately, you should contact customer service and send it back to the manufacturer for adjustment.
