Overview
DCY-0504 Low Temperature Circulating Bath is an upgrade product of SDPTOP brand DC series Low Temperature Circulating Bath. It adopts microcomputer thermostatic Control system and LCD display, and has liquid level alarm and communication functions. The instrument consists of intelligent temperature control part, temperature sensor Pt100 platinum resistance, circulating stirring part, heater, refrigeration part, stainless steel inner tank and shell.
Features
1. Upgraded Products of DC Series Low Temperature Circulating Bath
2. Adopt newly designed LCD display, microcomputer thermostatic Control system
3. Can add communication function, two-way communication with computer
4. Liquid level alarm function
5.6 liters agitation pump capacity 8 L/min, Power 900W-2000W
6.15 liters agitation pump capacity 10 L/min, Power 1500W-3500W

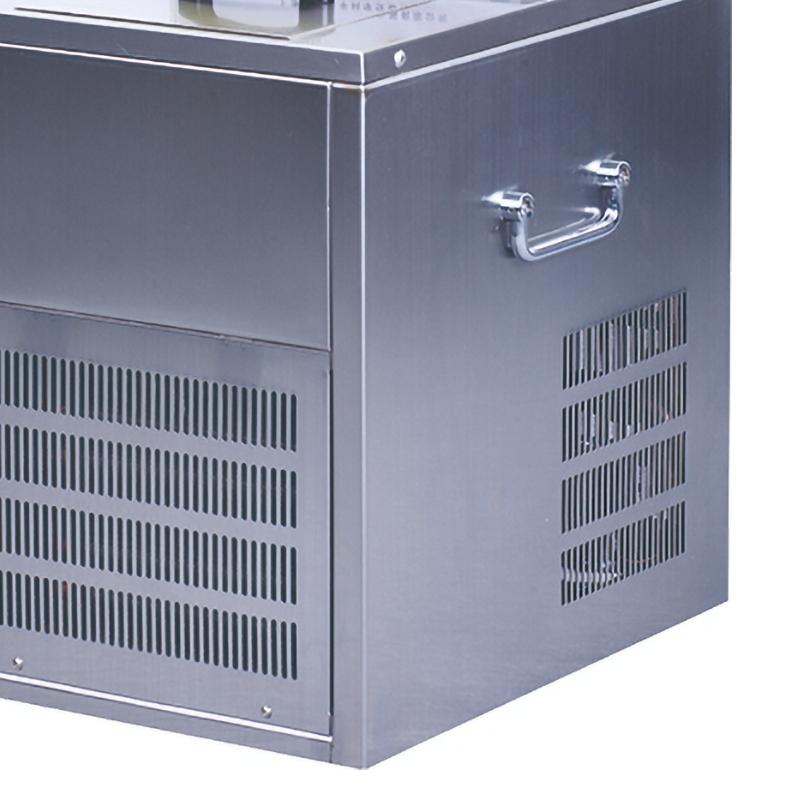

7. Both the inner tank and the box are made of high-quality stainless steel
8. Temperature Fluctuation +/- 0.05 ℃, Display resolution 0.1 ℃
Principle
Control system, combined with Pt100 platinum resistance temperature sensor, monitors and adjusts temperature in real time. The system adjusts temperature through the heater and refrigeration section, and the circulating stirring part ensures uniform temperature distribution in the tank to achieve accurate thermostatic control.
Applications
Laboratory thermostatic control, scientific research, industrial testing
Steps
1. Turn on the power switch
2. Turn on the refrigeration switch or cycle switch as needed
3. Use the function key, increase key, decrease key and shift key to set the temperature parameters
4. Monitoring PV display Measuring temperature, SV display Set temperature
5. Observe the beam to display the heating control output percentage
6. Pay attention to the status of the hydration indicator light, running indicator light, heating light and alarm light
Notice
• When the water level is low, the water replenishment indicator light is on, and it is necessary to replenish water in time
• The running indicator light is always on when running, and flashes when self-tuning
• The heating light is on when the heating output is output
• When the alarm light is on, it indicates that the over-temperature alarm or water level indication is abnormal
• Check whether the connection of each part is normal before use
