Overview

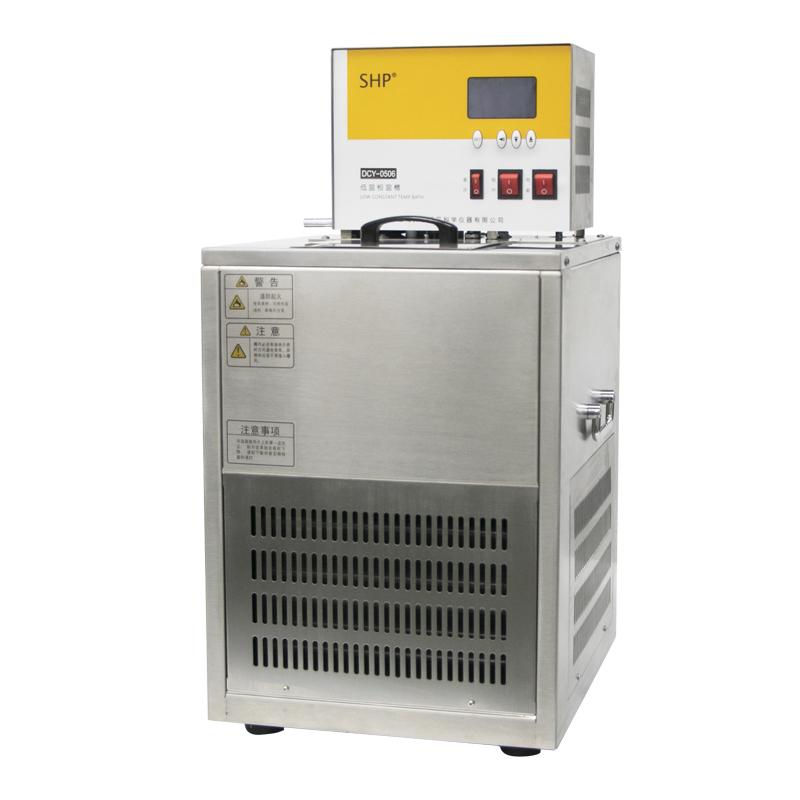

SDPTOP DCY-0506 Low Temperature Circulating Bath is an upgrade product of DC series Low Temperature Circulating Bath. It adopts microcomputer thermostatic Control system and LCD display, and has liquid level alarm function. The instrument consists of intelligent temperature control part, temperature sensor Pt100 platinum resistance, circulating stirring part, heater, refrigeration part, stainless steel inner tank and shell.
Features
1. Upgraded Products of DC Series Low Temperature Circulating Bath
2. Adopt newly designed LCD display and microcomputer thermostatic Control system
3. Can add communication function, two-way communication with computer
4. Liquid level alarm function
5.6 liters agitation pump capacity 8 L/min, Power 900W-2000W
6. Both the inner tank and the box are made of high-quality stainless steel
7. Temperature Fluctuation +/- 0.05 ℃, Display resolution 0.1 ℃
Principle
The DCY series Low Temperature Circulating Bath precisely controls the temperature through a microcomputer thermostatic Control system, using the Pt100 Platinum Resistance Sensor to monitor the temperature, and combines the circulating stirring system, heater and cooling section to achieve temperature stabilization. The LCD panel displays the Measuring temperature and the set temperature in real time, and the user can set and adjust the parameters by pressing the button.
Applications
Laboratory temperature control, scientific research experiments, industrial thermostatic testing
Steps
1. Turn on the power switch to start the device
2. Use the function key, increase key, decrease key and shift key to set the temperature and parameters
3. Turn on the cycle switch and refrigeration switch as needed
4. Monitoring PV display Measuring temperature, SV display Set temperature
5. Pay attention to the status of the hydration indicator light and alarm light, and deal with abnormalities in time
Notice
• When the water level is low, the water replenishment indicator light is on, and it is necessary to replenish water in time
• The running indicator light is always on when running, and flashes when self-tuning
• The heating light is on when the heating output is output
• When the alarm light is on, it indicates that the over-temperature alarm or water level indication is abnormal
• Make sure the device is placed on a smooth surface to avoid tilting
