Overview

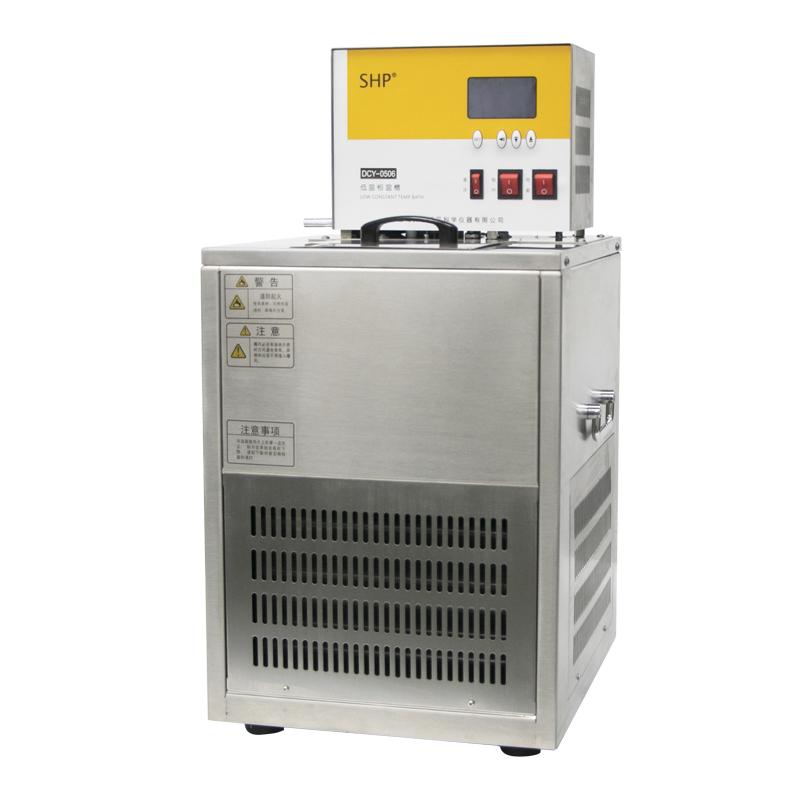

DCY-2015 Low Temperature Circulating Bath is an upgrade product of SDPTOP brand DC series Low Temperature Circulating Bath. It adopts intelligent LCD display and microcomputer thermostatic Control system, and has High Accuracy performance of Temperature Fluctuation +/- 0.05 ℃. The instrument consists of temperature control part, Sensor, circulating stirring part, heater, refrigeration part and stainless steel inner tank, which is suitable for experimental environments that require precise temperature control.
Features
1. Upgraded Products of DC Series Low Temperature Circulating Bath
2. Adopt newly designed LCD display and microcomputer thermostatic Control system
3. Can add communication function, two-way communication with computer
4. Liquid level alarm function
5.15 liter model Mixing pump capacity 10 L/min, Power 1500W-3500W
6. Both the inner tank and the box are made of high-quality stainless steel
7. Temperature Fluctuation +/- 0.05 ℃, Display resolution 0.1 ℃
Principle
DCY-2015 Low Temperature Circulating Bath monitors the temperature in real time through a microcomputer thermostatic Control system and a Pt100 platinum resistance temperature sensor, and adjusts the temperature in combination with the heater and refrigeration section. The circulating stirring section ensures uniform temperature distribution in the tank for accurate temperature control.
Applications
Laboratory, scientific research, industry
Steps
1. Turn on the power switch
2. Use the function key, increase key, decrease key and shift key to set the temperature parameters
3. Turn on the circulation switch to start the mixing pump
4. Turn on the cooling switch as needed
5. Monitoring PV display Measuring temperature and SV display setting temperature
6. Pay attention to the status of the hydration indicator light and alarm light
Notice
• When the water level is low, the water replenishment indicator light is on, and it is necessary to replenish water in time
• The running indicator light is on when running, and flashes when self-tuning
• The heating light is on when the heating output is output
• When the alarm light is on, it indicates that the over-temperature alarm or water level indication is abnormal
• Make sure the device is placed smoothly and avoid tilting before use
