Overview

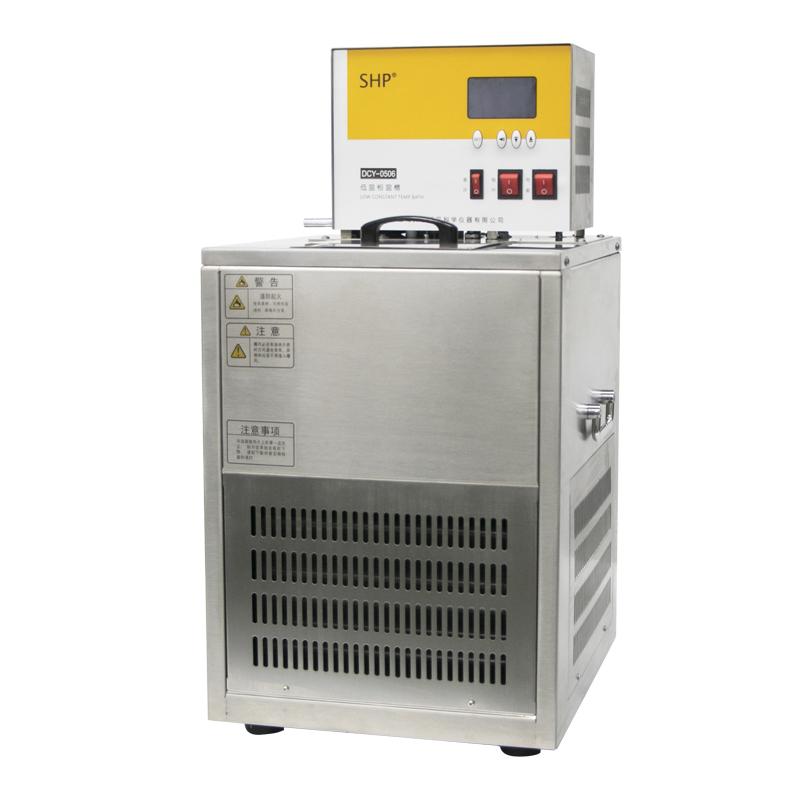

DCY-3015 Low Temperature Circulating Bath is an upgrade product of SDPTOP brand DC series Low Temperature Circulating Bath, which adopts intelligent LCD display and microcomputer thermostatic Control system, with High Accuracy Temperature Control and a variety of practical functions.
Features
1. Adopt newly designed LCD display and microcomputer thermostatic Control system
2. Can add communication function, two-way communication with computer
3. Liquid level alarm function
4.15 liter model Mixing pump capacity 10L/min, Power 1500W-3500W
5. Both the inner tank and the box are made of high-quality stainless steel
6. Temperature Fluctuation +/- 0.05 ℃, Display resolution 0.1 ℃
Principle
DCY series products are composed of intelligent liquid crystal display temperature control part, temperature sensor Pt100 platinum resistance, circulating stirring part, heater, refrigeration part, stainless steel inner tank and shell, and realize accurate temperature control through microcomputer Control system.
Steps
1. Use the function keys to modify the setting value and call up the parameters
2. Modify the setting value or control parameters by increasing the key and decreasing the key
3. Use the shift key to shift the setting value and view the running time
4. Turn on the power switch to start the device
5. Turn on the refrigeration switch and cycle switch as needed
Notice
• When the water level is low, the hydration indicator light will light up
• The running indicator light remains normally on during operation and flashes when self-tuning
• The heating light will turn on when the heating output is output
• When the alarm light is on, it indicates that the over-temperature alarm or water level indication is abnormal
