SDPTOP NDJ-8S Viscometer Intelligent Speed Regulation Viscosity Test Device 8 Rotation speeds

Name: SDPTOP NDJ-8S Viscometer Intelligent Speed Regulation Viscosity Test Device 8 Rotation speeds
Brand: SDPTOP
SKU: NB013937
Price: 751.0 USD
Availability: InStock

$ 751.00Ex works

Measurement accuracy of +/- 5% F.S., support intelligent speed regulation and wide voltage adaptation, can determine the absolute viscosity of Newtonian liquid.

Model

NDJ-8S

Get Quote

Category : Rotational Viscometer

Brand : SDPTOP

SKU : NB013937

Service :The delivery and service By NBCLab.Com

Overview

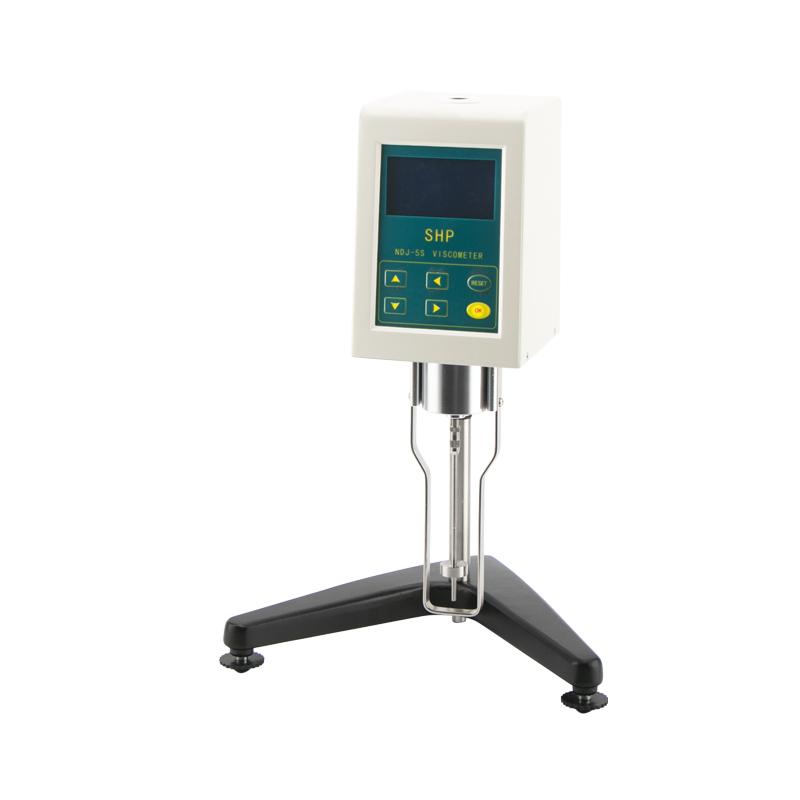

The SDPTOP NDJ-8S Viscometer is a digital viscosity measurement instrument for the measurement of Tack resistance and absolute viscosity of fluids such as grease, paints, food, gluing agents, etc. The instrument has intelligent speed regulation, wide voltage adaptation and other characteristics to meet the viscosity measurement needs in different scenarios.

Features

1. Tack resistance and absolute viscosity measurement of oils, paints, food, gluing agents and other fluids 2. Intelligent speed regulation, Chinese and English interface display 3. Using programmable motor, Frequency change does not affect Measurement accuracy 4.8 Rotation speeds for different Measurement ranges 5. Can measure the absolute viscosity of Newtonian liquid, that is, dynamic viscosity 6. Wide voltage to adapt to 110~ 240V voltage 7. Optional No. 0 rotor

Principle

The Viscometer measures viscosity by the Tack Resistance of the rotor as it swirls/spins in the fluid, uses a programmed motor to drive the rotor at a specific Rotation speed swirl/spin, measures resistance and calculates absolute viscosity values.

Applications

Grease, paints, food, gluing agent

Display mode
digital
Viscosity Range
10~2000000 mPa·s
Rotor specification
1#、2#、3#、4#
Rotor speed
0.3/0.6/1.5/3/6/12/30/60 rpm
Measurement accuracy
±5%
Power supply Voltage
110-220 V
Dimension
275*265*445mm
Speed control
Eight-level adjustment

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
