Overview

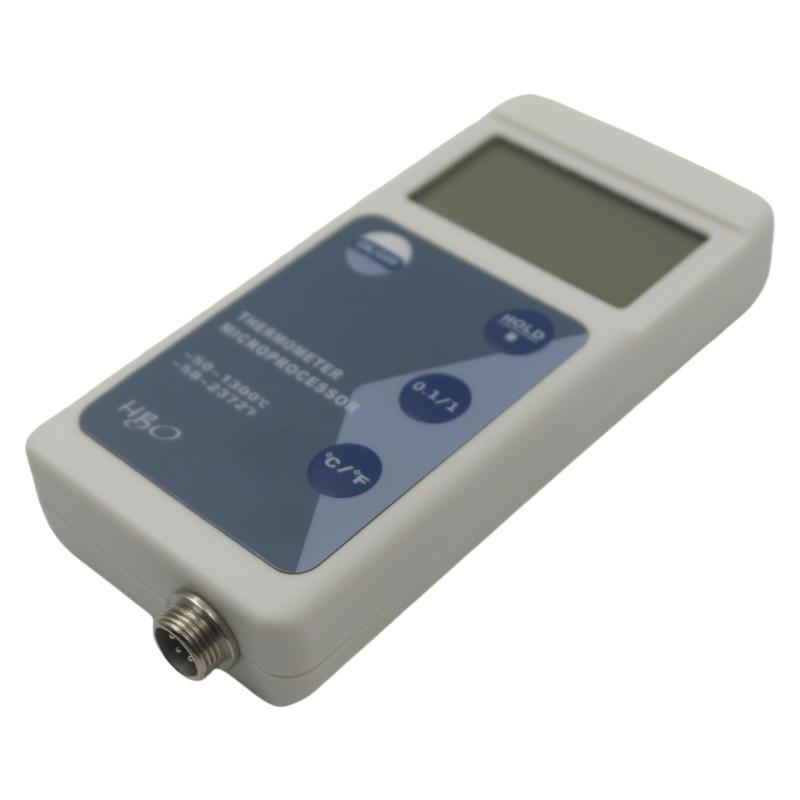

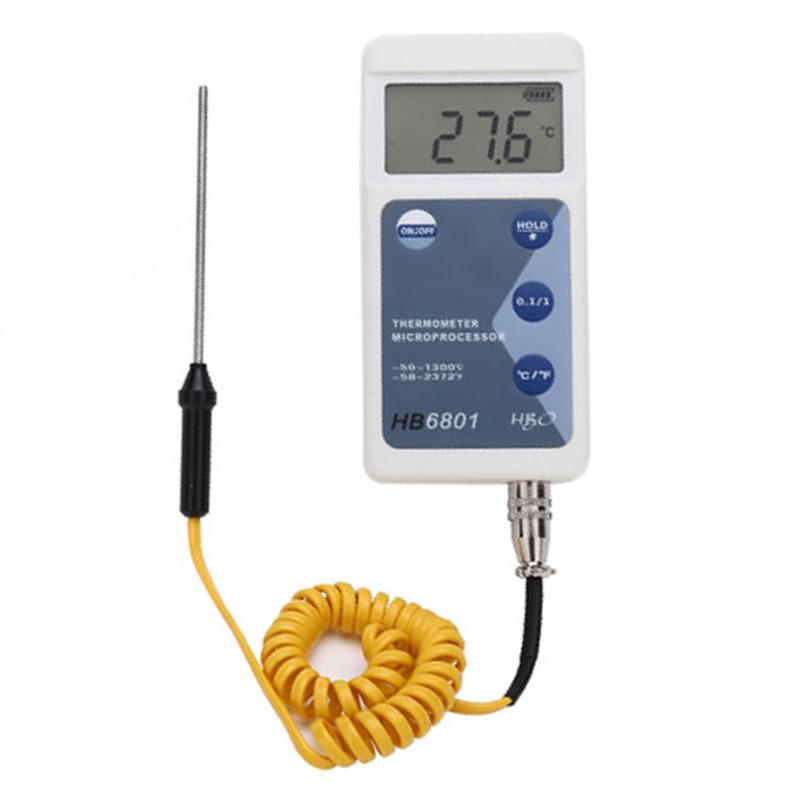

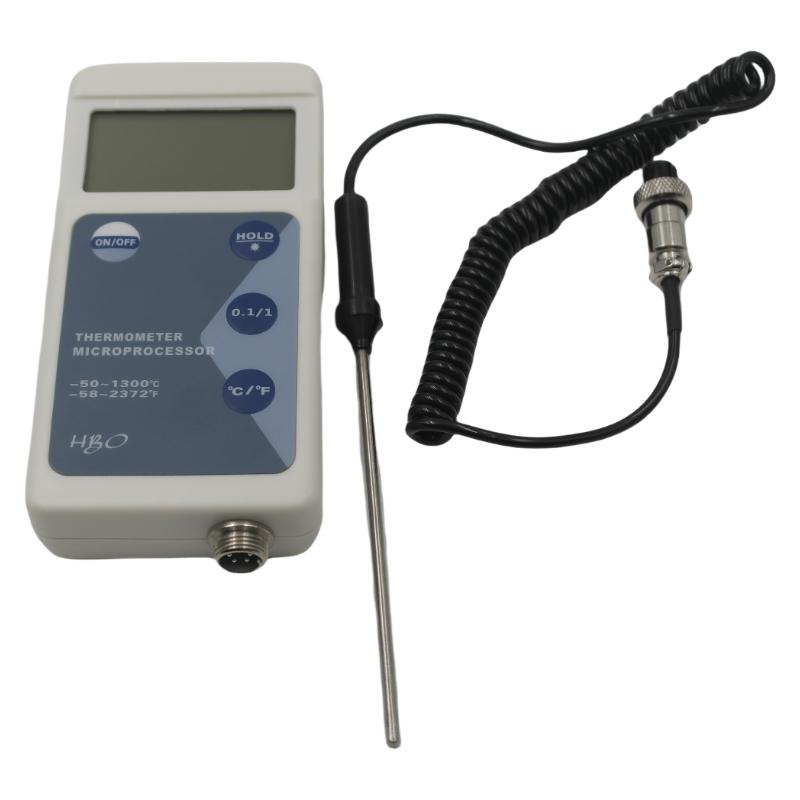

The HBO HB6801 Handheld Industrial Thermometer is an industrial High Accuracy handheld thermometer that uses microprocessor technology and a 16-bit AD converter for temperature measurement. It uses the K-type Thermocouple Sensor to measure both Celsius and Fahrenheit temperatures simultaneously. It has functions such as data retention, decimal point switching, memory operation status, and low battery display. It is compact and easy to carry.
Features
1.4-Digit digital LCD display, maximum display 9999
2. The sampling speed is about 16 times per second
3. Storage environment: 0 ° C~ 50 ° C (32 ° F~ 122 ° F), relative humidity < 80%
4. Overrange display: the lowest two digits display "Hi" or "Lo"
5. Battery: 9V alkaline or carbon zinc battery, alkaline Battery life about 300 hours, carbon zinc battery about 150 hours
6. Precision ： +/- 0.5% F.S. + 1 word
7. Precision calibrated environment: 23 ℃ +/- 5 ℃
8. Measurement range: -50 ° C~ 1300 ° C (-58 ° F~ 2372 ° F)
9. Ambient Temperature Coefficient: When below 18 ° C or above 28 ° C, the coefficient is 0.1 × Precision/° C
10. Dimensions: 138 × 65 × 25 mm
11.Weight: 0.1KG (including battery)
12. The maximum temperature of the standard probe is about -50 to 400 degrees
13. Conventional Thermocouple Sensor is 3 × 80mm
14. Thermocouple line length 1 meter
Principle
The HB6801 handheld industrial thermometer uses microprocessor technology and a 16-bit AD converter for temperature measurement, converts the temperature signal into an electrical signal through the K-type Thermocouple Sensor, and displays the temperature in Celsius or Fahrenheit in digital form after processing.
Applications
Industrial temperature measurement
Steps

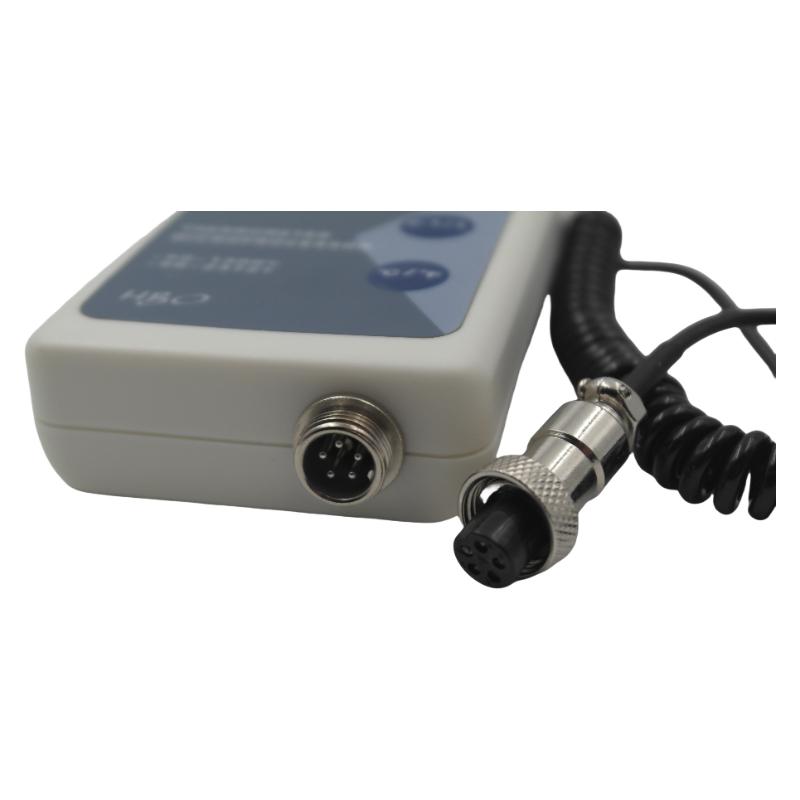

1. Insert the Thermocouple into the K-type Thermocouple socket and press the power switch
2. Preheat for three minutes, select the desired function and range, and the Thermocouple Probe touches the measured object until the data is stable (press the hold button at this time to keep the current displayed data)
3. Long press the HOLD button to turn on or off the backlight function
Notice
- If the screen shows "HI", it indicates that the Thermocouple is not connected, in poor contact or over-range; if "La" is displayed, it indicates under-range.
- When the battery icon is blank, it indicates that the battery is low and should be replaced
- Before use, it should be turned on and preheated for 3 minutes before measurement to ensure accuracy
