SDPTOP JY2003 Electronic Precision Balance LCD Backlight AC/DC dual-use

Name: SDPTOP JY2003 Electronic Precision Balance LCD Backlight AC/DC dual-use
Brand: SDPTOP
SKU: NB013986
Price: 351.0 USD
Availability: InStock

$ 351.00Ex works

Readability up to 1mg, Capacity 200g, with LCD backlight display, AC and DC dual-use, full scale peeling, counting function and a variety of unit conversion, Stabilization time ≤ 3 seconds, suitable for precision weighing environment.

Model

JY2003

Get Quote

Category : Electronic Balance

Brand : SDPTOP

SKU : NB013986

Service :The delivery and service By NBCLab.Com

Overview

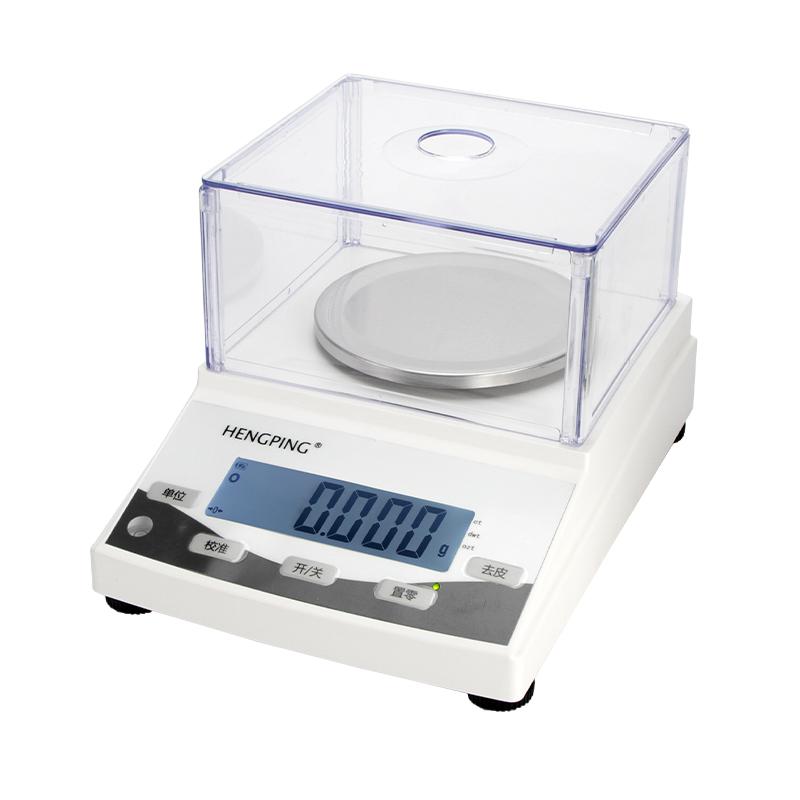

SDPTOP JY2003 Electronic Precision Balance is a High Accuracy weighing device with LCD backlight display and AC/DC dual-use function. It provides full scale peeling, counting functions, and comes standard with RS232 interface for a variety of weighing needs.

Features

1. LCD backlight display 2. AC/DC dual-use 3. Full scale peeling 4. With Level, Draft Shield 5. Counting function 6. Standard RS232 interface 7. Multiple unit conversions

Principle

Electronic Precision Balance detects the weight signal through the Sensor and displays the reading after processing by the internal circuit. External Adjustment ensures weighing accuracy. Stabilization time does not exceed 3 seconds to ensure fast and accurate measurement.

Steps

1. Balance in horizontal position and adjust using leveler 2. Connect the power supply or use battery power supply. 3. Turn on the power switch and wait for stability 4. Place the sample for weighing 5. Use peeling function to remove container weight 6. Connect external devices through RS232 interface (optional) 7. Switch units or use the counting function as needed

Notice

• Ensure that the Working Ambient Temperature is within the range of 5~ 40 ℃ • relative humidity not more than 85% • Check the leveler before use to ensure that the Balance is placed horizontally • Avoid use in strong winds or vibrating environments, use Draft Shield if necessary Periodic external calibrating to maintain accuracy • Avoid liquid entering the internal circuit when cleaning

Readability
1mg
Capacity value
200g
repeatability error
±1mg
Linearity
±2mg
test weight
200g
Pan Size
Φ130mm
Draft Shield Dimensions
175*145*88mm
Dimension
257*295*75mm
Packaging Dimensions
330*250*130mm
Net weight
1.2kg
gross weight
1.7kg
Calibration method
external calibration
Stabilization time
≤3s
ambient temperature Range
5~40℃
Environmental humidity
≤85%

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
