Overview

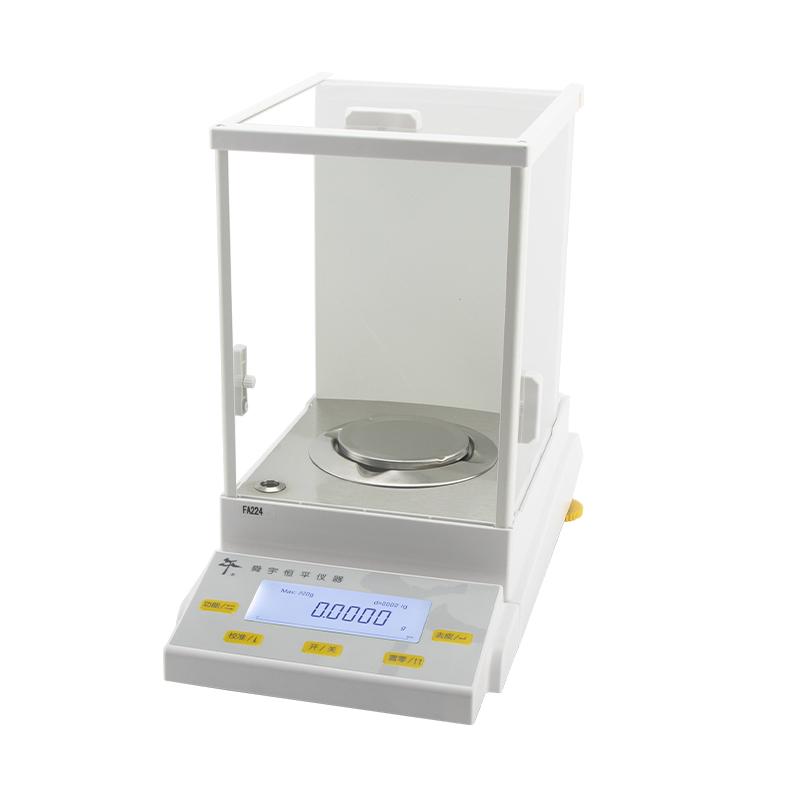

The SDPTOP FA124 Electronic Analytical Balance is a High Accuracy weighing instrument with a weighing range of 120g and a Readability of 0.1mg. It is designed with ABS engineering plastic and an all-aluminum base to ensure a lightweight and sturdy construction. It is equipped with Draft Shield and transport protection locks for use in environments such as laboratories.
Features
1. Easy to operate and clear LCD display
2. Using corrosion-resistant, anti-Impact ABS engineering plastics, light and strong structure
3. Built-in hook, overload protection pan, with airflow Draft Shield and display screen shield
4. Provide additional dust and scratch protection to extend service life
5. Glass door transport protection lock, 4-sided fully transparent Glass Draft Shield, one side aluminum alloy back plate
6. Full scale range peeling, four-level shock resistance, adjustable weighing speed
7. All Aluminum Balance Base, Prevents Low Frequency Vibration, Stable Body
8. Piece counting, percentage weighing function
9. Automatic zero tracking adjustable, super overload protection
10. Automatic fault diagnosis
11. Multiple unit conversions
Principle
The FA124 Electronic Analytical Balance detects the mass of the weighed object with a High Accuracy Sensor and converts the signal into a digital display. It uses an external Calibration method, uses a 100g test weight to ensure weighing accuracy, and has automatic zero tracking and shock resistance to maintain stable measurements.
Applications
Laboratories, scientific research institutions, industrial quality control, educational institutions
Steps
1. Place the Balance on a stable plane and connect the power supply
2. Turn on the power switch and wait for the Balance self-test to complete.
3. Externally calibrated with 100g test weight
4. Place the object to be tested on the pan and read the display value
5. Use peeling function to remove container weight
6. Select the piece or percentage weighing mode as required
7. Turn off the power after weighing
Notice
• Ensure Ambient Temperature at 5 ℃~ 40 ℃, relative humidity ≤ 85%
• Avoid overloading to prevent damage to the Sensor
• Regularly clean the pan and Draft Shield to keep the equipment clean
• When calibrating, the specified 100g weight should be used to ensure accuracy
• Glass door protection lock is enabled during transportation to prevent damage to parts
• Avoid use in strong airflow or vibration environment, affecting accuracy
