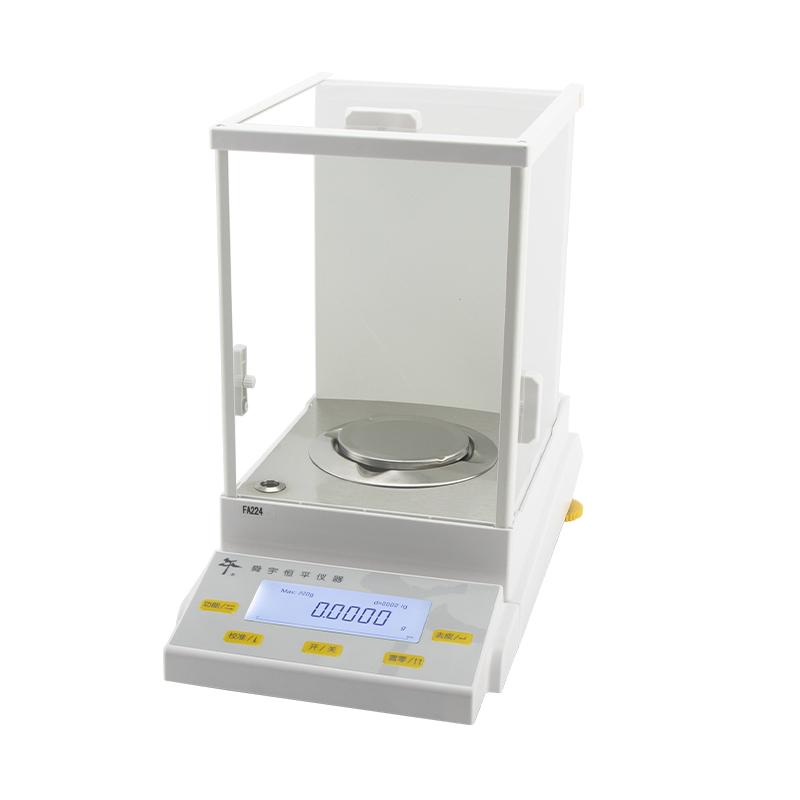

Overview
The SDPTOP FA1004 Electronic Analytical Balance is a High Accuracy weighing device with an ABS engineering plastic and all aluminium base design to ensure a lightweight and sturdy construction. With a clear LCD display and a variety of practical functions, it is suitable for accurate weighing in environments such as laboratories.
Features
1. Easy to operate and clear LCD display
2. Using corrosion-resistant and Impact-resistant ABS engineering plastics, the structure is light and strong
3. Built-in hook, overload protection pan, with airflow Draft Shield and display screen shield
4. Provide additional dust and scratch protection to extend service life
5. Glass door transport protection lock, 4-sided fully transparent Glass Draft Shield, one side aluminum alloy back plate
6. Full scale range peeling, four-level shock resistance, adjustable weighing speed
7. All Aluminum Balance Base, Prevents Low Frequency Vibration, Stable Body
8. Piece counting, percentage weighing function
9. Automatic zero tracking adjustable, super overload protection
10. Automatic fault diagnosis
11. Multiple unit conversions
Principle
Electronic Analytical Balance converts the mass of the weighed object into an electrical signal through the Sensor, and displays the exact value after processing by the internal circuit. It uses an external Calibration method, uses test weight to ensure measurement accuracy, and has automatic zero tracking and shock resistance to maintain stable operation.
Applications
Laboratories, scientific research institutions, industrial production, quality control, educational institutions
Steps
1. Place the Balance on a smooth table and connect the power supply
2. Turn on the power switch and wait for the Balance self-test to complete.
3. Select the weighing mode as required (e.g. piece count or percentage)
4. Place the sample on the pan for weighing
5. Use peeling function to remove container weight
6. Read the display results and output data through the RS232 interface
7. Turn off the power after use, clean and maintain
Notice
• Ensure that the Working Ambient Temperature is within the range of 5 ℃~ 40 ℃
• relative humidity not more than 85%
• Avoid using more than 100g weighing range
Periodically calibrate using external test weights
• Protection from Strong Vibrations and Impacts
Keep pan and Draft Shield clean
• Power supply voltage matching (220V/50Hz or 110V/60Hz)
• Secure Glass Door with Protective Lock during Transportation
