Overview

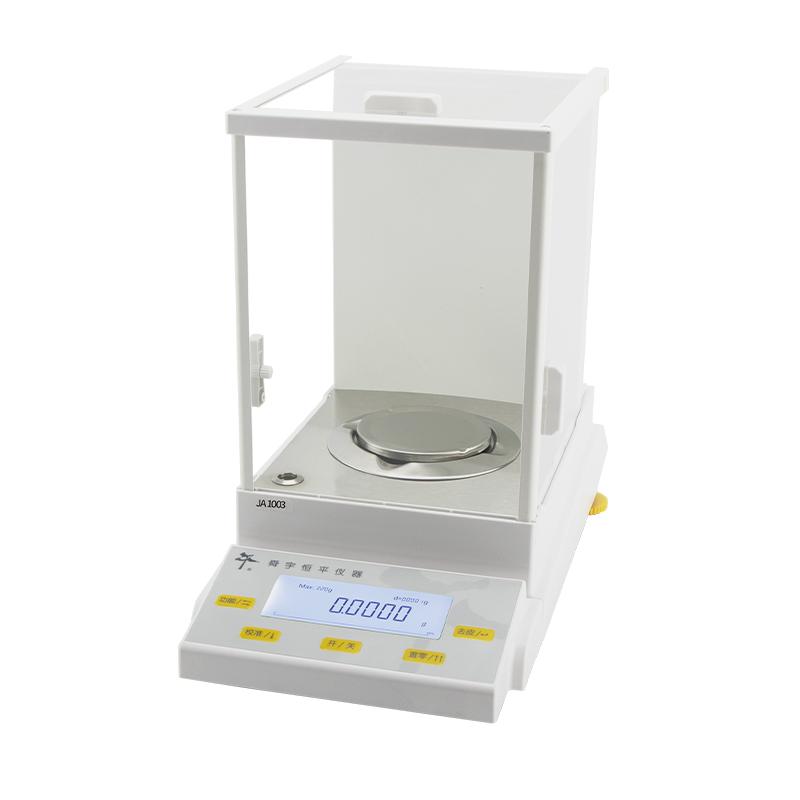

SDPTOP JA1003 Electronic Precision Balance is a High Accuracy weighing device with a weighing range of 100g and a Readability of 1mg. It features an oversized backlit LCD screen and high-Sensitivity touch buttons for easy operation and is suitable for a variety of weighing scenarios.
Features
1. Large LCD screen with backlight, High Sensitivity touch button, easy to operate
2. High Sensitivity Touch button, built-in hook
3. Overload protection pan, under the pan with airflow Draft Shield
4. Display shield provides additional dust and scratch protection to extend the lifespan of Balance
5. With Glass Door Transport Protection Lock, 4-sided fully transparent Glass Draft Shield, one side aluminum alloy back plate
6. Full scale range peeling, four-level shock resistance, adjustable weighing speed
7. All Aluminum Balance Base, Prevents Low Frequency Vibration, The Body Is More Stable
8. Piece count, percentage weighing, gram, ounce, carat and other unit conversions
9. Automatic zero tracking adjustable, super overload protection, automatic fault diagnosis
Principle
The Electronic Precision Balance detects the weight of the weighed object through the High Accuracy Sensor, converting the signal into a digital display. It uses automatic zero tracking and four-level shock protection technology to ensure weighing Stability and accuracy, while data transmission through the RS232 interface.
Applications
Laboratory, industrial weighing, quality control, education and research
Steps
1. Place the Balance on a smooth table and connect the power supply
2. Turn on the power switch and wait for the Balance self-test to complete.
3. Set the weighing units (e.g. grams, ounces, carats) as needed.
4. Place the item to be weighed on the pan and read the display data
5. Use peeling function to remove container weight
6. Turn off the power after weighing and clean the pan
Notice
• Ensure that the working Ambient Temperature is within the range of 5~ 40 ° C, and the relative humidity does not exceed 85%
• Avoid overloading to prevent damage to the Sensor
• Regularly clean the pan and Draft Shield to keep the equipment clean
• Fix Draft Shield with Glass Door Protection Lock during transportation
• Power supply voltage only (220V/50Hz or 110V/60Hz)
