Overview

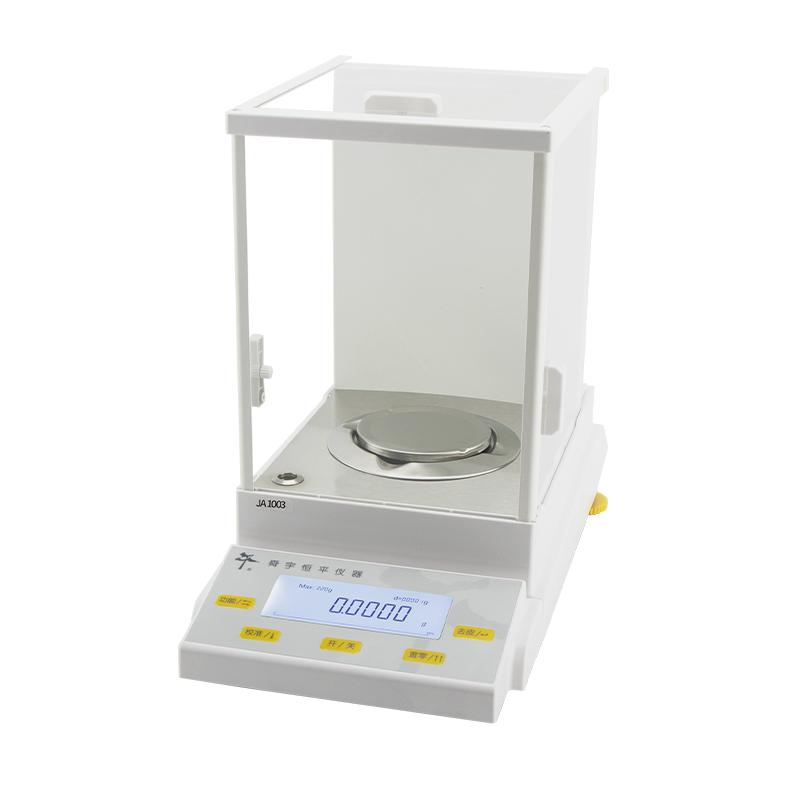

SDPTOP JA4103 Electronic Precision Balance is a High Accuracy weighing device with a weighing range of 410g and a Readability of 1mg for use in laboratory and industrial environments. Equipped with an oversized backlit LCD screen and high-Sensitivity touch buttons, it is easy to operate, and features Draft Shield and overload protection to ensure weighing accuracy and equipment durability.
Features
1. Large LCD screen with backlight, High Sensitivity touch button, easy to operate
2. High Sensitivity Touch button, built-in hook
3. Overload protection pan, under the pan with airflow Draft Shield
4. Display shield provides additional dust and scratch protection to extend the lifespan of Balance
5. With Glass Door Transport Protection Lock, 4-sided fully transparent Glass Draft Shield, one side aluminum alloy back plate
6. Full scale range peeling, four-level shock resistance, adjustable weighing speed
7. All Aluminum Balance Base, Prevents Low Frequency Vibration, The Body Is More Stable
8. Piece count, percentage weighing, gram, ounce, carat and other unit conversions
9. Automatic zero tracking adjustable, super overload protection, automatic fault diagnosis
Principle
The electronic Precision Balance detects the weight of the weighed object through the High Accuracy Sensor and converts the signal into a digital display. It uses automatic zero tracking and quad shock protection technology to ensure stable readings under environmental disturbances. Airflow Draft Shield and overload protection mechanisms further reduce external factors for accurate weighing.
Applications
Laboratory, industrial weighing, quality control, educational research, pharmaceutical, chemical
Steps
1. Place the Balance on a smooth surface and connect the power supply
2. Turn on the power switch and wait for the Balance self-test to complete.
3. Adjustment (external calibrate) to calibrate to ensure accuracy
4. Place the object to be weighed on the pan and read the display data
5. Use peeling function to remove container weight and perform Net weight weighing
6. Switch units (grams, ounces, carats) or perform piece counting and percentage weighing as needed
7. After weighing, turn off the power and clean the pan
Notice
• Ensure that the working Ambient Temperature is between 5 and 40 ° C, and the relative humidity does not exceed 85%
• Avoid overloading to prevent damage to the Sensor
• Regularly clean Draft Shield and pan to prevent dust accumulation from affecting accuracy
• When using external test weights, make sure the weights are accurate
• Enable Glass Door Protection Lock during transportation to prevent damage to Glass Draft Shield
• Avoid operating in a strong vibration or air disturbance environment
• Power supply voltage needs to match (220V/50Hz or 110V/60Hz) to prevent equipment failure
