Overview

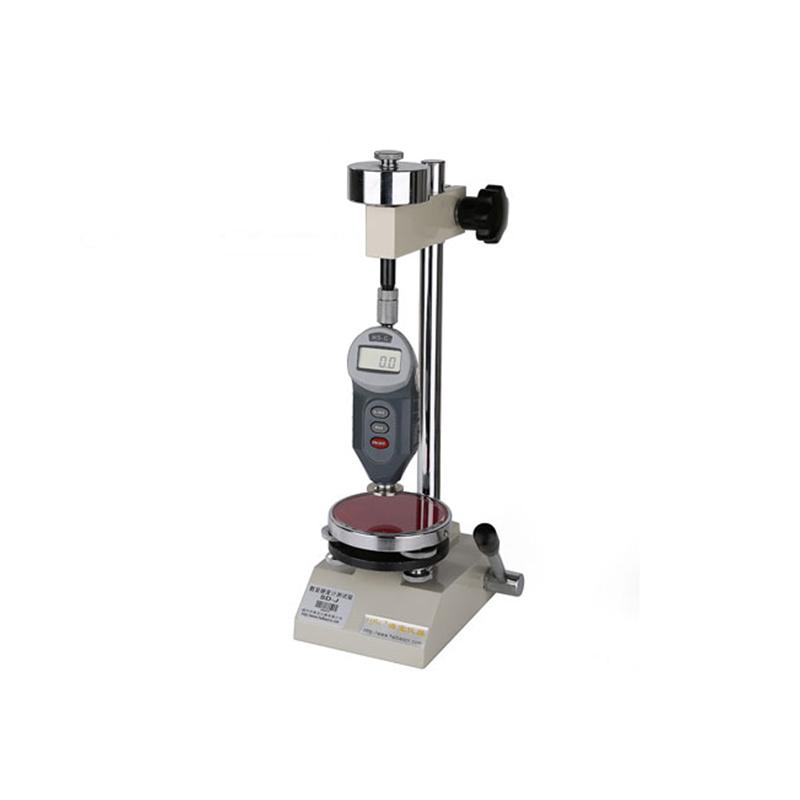

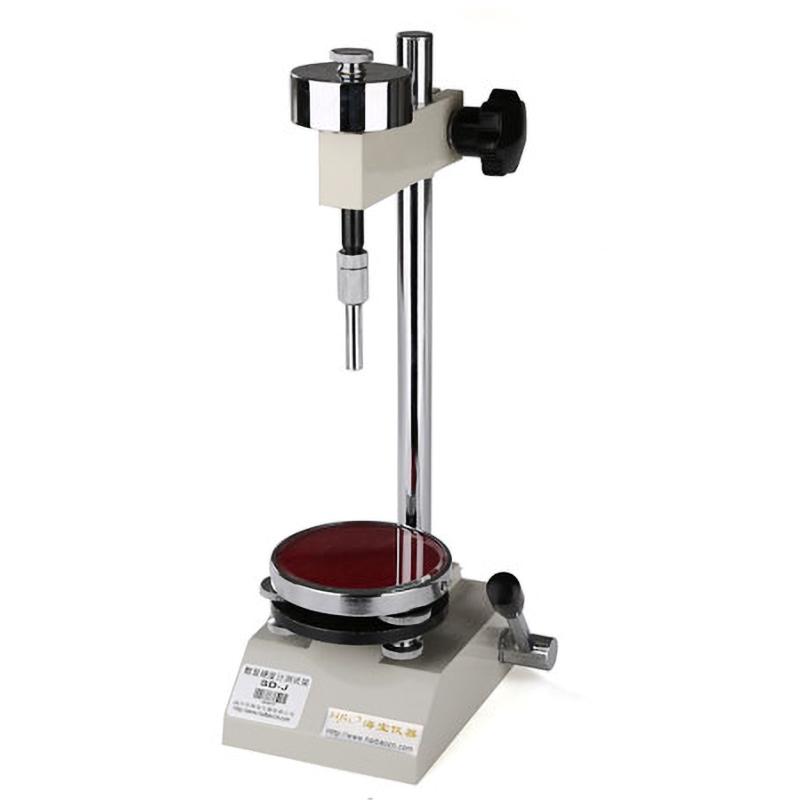

Haibao SAC-J AC Shore Shore Durometer test stand is a supporting bracket for AC digital display Shore Shore Durometer. By installing the hardness gauge on the test stand for testing, the unstable factors existing in manual testing can be improved, such as hand shaking, insufficient pressure, etc., so that the hardness testing is more stable and accurate. The test platform is made of tempered Glass, which has high hardness and is not rusting. The test bracket is specially used in HS series digital display Shore Shore Durometer A, AO, C three models. It is equipped with a fixed load weight and an adjustable horizontal workbench, which can greatly improve the measurement accuracy.
Features
1. Glass workbench is not easy to abrasion, rust-proof and smoother than metal platform for a long time.
2. The level of the working platform is adjustable, and the hardness gauge is adjusted to the same level to improve the Test accuracy.
3. The weight is accurate.
Principle
SAC-J AC Shore Shore Durometer Test Rack eliminates the instability of manual operation and achieves more accurate Hardness measurement by mounting the hardness gauge on the bracket, using the weight to provide constant pressure, and combining with an adjustable horizontal table to ensure a flat test plane.
Standards
JB/T6148-2017、GBT531.1-2008/ISO7619-1：2004、HG/T2489-2007
Steps
1. Place the test rack on a stable and flat workbench, adjust the height of the cross arm to the bottom of the Shore Shore Durometer mounting rod about 110mm away from the round platform table, and tighten the bakelite star handle.
2. Unscrew the dust cap on the upper end of the hardness gauge, screw the hardness gauge into the mounting rod of the test frame and tighten it, and then tighten the orientation adjustment knob after adjusting the angle of the hardness gauge.
3. Adjust the height of the cross arm to the bottom of the hardness gauge pressure needle about 10mm away from the platform table, press down the handle of the test frame to make the pressure needle fully contact with the table, turn the fine-tuning handwheel until the hardness gauge shows 100 degrees (+/- 1 degrees).
Notice
• Do not use too much force when tightening the hardness gauge, otherwise it will damage the hardness gauge.
• If the displayed value cannot be reached after multiple adjustments, the hardness gauge or test stand cannot be used.
