Overview

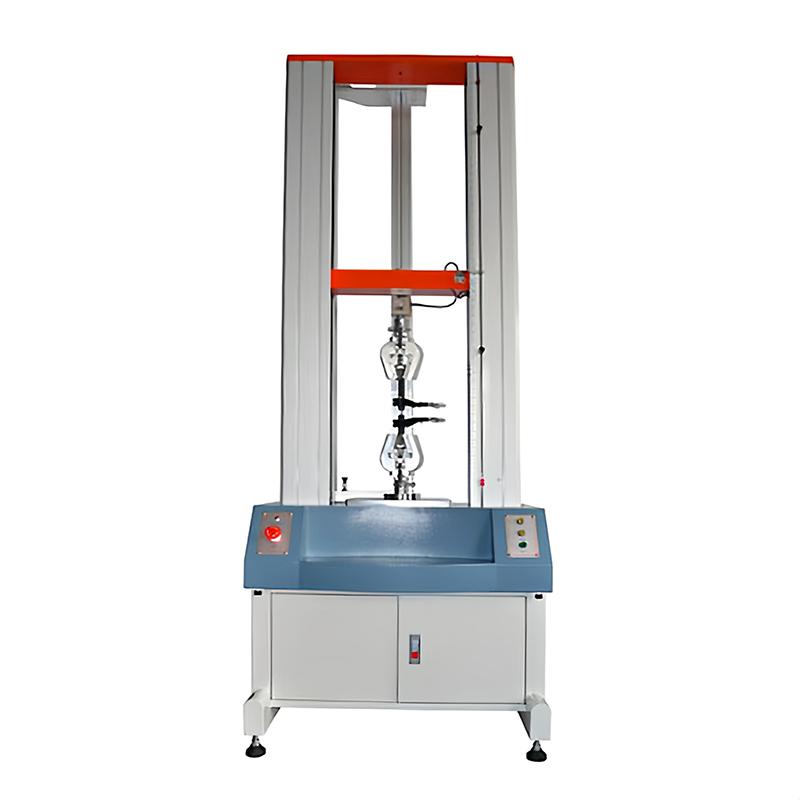

FR-103C Computerized Servo Multifunctional Material Universal Testing Machine is a new type of material testing machine combining electronic technology and mechanical transmission. It has a wide and accurate range of loading speed and force measurement. It has high accuracy and Sensitivity for the measurement and control of load and displacement. It can carry out automatic control tests of constant velocity loading and constant velocity displacement. Simple and convenient operation, suitable for the production of online product mass control testing instruments, suitable for non-metallic and metal material tests with test loads below 30kN.
Features
1. The controller adopts embedded single-chip microcomputer structure, built-in powerful measurement and control software, and integrates measurement, control, calculation and storage functions.
2. Automatically calculate stress, elongation (need to add extensometer), tensile strength, Modulus of Elasticity, automatic statistical results.
3. Automatically record the maximum point, breaking point, force value or elongation of the specified point.
4. The computer is used for the dynamic display of the test process and the test Linear dispersion, and data processing is carried out.
5. After the test, the data can be re-analyzed and edited by the graphics processing module, and the report can be printed.
6. Product performance has reached the international professional level.
Principle
The Universal Testing Machine uses a servo motor to drive a High Accuracy ball screw to achieve accurate loading and displacement control. The controller has built-in measurement and control software to measure load and displacement in real time, automatically perform the test process of constant velocity loading or constant velocity displacement, and dynamically display the test Linear dispersion for data calculation and storage.
Applications
Measurement Quality control, Rubber Plastics, Metallurgical Steel, Machinery Manufacturing, Electronics, Automobile Production, Spinning & weaving Chemical Fiber, Wire and cable, Encasement Materials and Food, Instruments, Equipment, Civil Nuclear Energy, Civil Aviation, Colleges and Universities, Research Laboratories, Commodity Inspection and Arbitration, Technical Supervision Department, Building Materials and Ceramics, Petrochemicals, Other Industries
Standards
"GB/T16491-1996 Electronic Multifunctional Testing Machine"
Steps
1. Install the tensile fixture and secure the specimen.
2. Set test parameters, such as loading speed or displacement speed.
3. Start-up test, the machine automatically performs tensile, compression, bending, and other tests.
4. Linear dispersion and data are displayed dynamically by computer during the test.
5. After the test, return to the initial position automatically or manually.
6. Analyze data through software and print reports.
Notice
• The test load shall not exceed 30kN, and the machine will automatically protect when overloaded by 10%.
• Power supply voltage is 220V, 50HZ before use to ensure safe grounding.
• Ensure that the fixture is firm when installing the sample to avoid loosening affecting the accuracy.
• Periodically calibrate force value and Displacement measurement system to ensure accuracy class of 0.5.
• Pay attention to the electronic limit protection function during operation to prevent the test bench from exceeding Travel.
• Extended configuration such as extensometer or large deformation measurement should be selected according to requirements.
• Keep the machine clean to avoid dust affecting the sensor accuracy.
