Overview

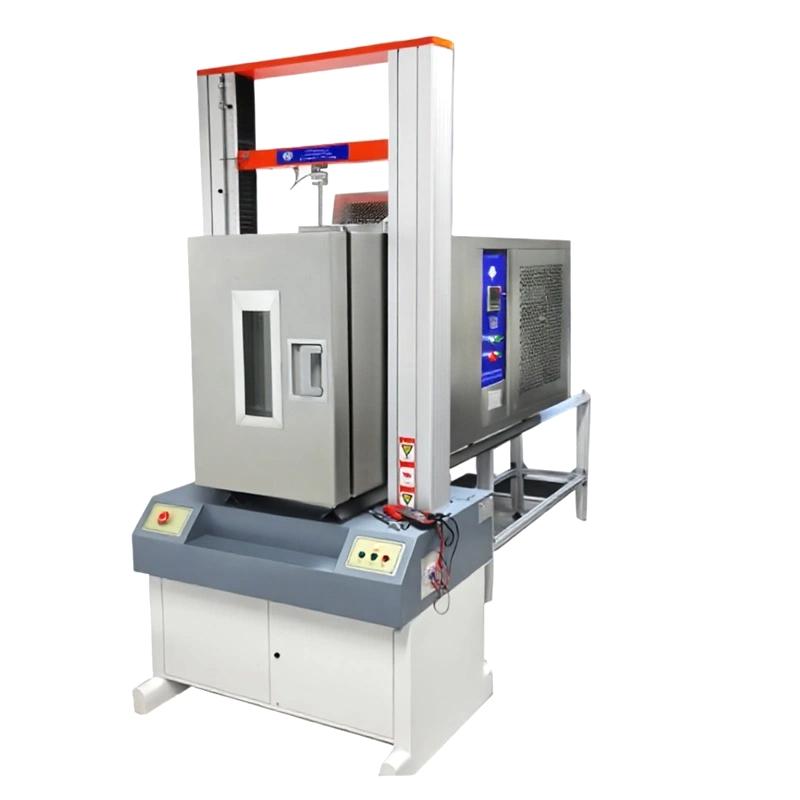

FR-103G computer servo type high and low temperature material testing machine (high and low temperature double column) is a new type of material testing machine combining electronic technology and mechanical transmission. It has a wide and accurate loading speed and force measurement range. It has High Accuracy and Sensitivity for the measurement and control of load and displacement. It can carry out automatic control tests of constant velocity loading and constant velocity displacement. The machine is simple and convenient to operate, suitable for the production of online product mass control testing instruments, mainly suitable for non-metallic and metal material tests with test loads below 20KN.
Features
1. Imported photoelectric encoder for displacement measurement, the controller adopts embedded monolithic microcomputer structure, built-in powerful measurement and control software, integrating measurement, control, calculation and storage functions.
2. With automatic calculation of stress, elongation (need to add extensometer), tensile strength, resilience modulus function, automatic statistical results.
3. Automatically record the maximum point, breaking point, force value or elongation of the specified point.
4. The computer is used for the dynamic display of the test process and the test Linear dispersion, and data processing is carried out. After the test, the data can be re-analyzed and edited by the graphics processing module, and the report can be printed.
5. The product performance has reached the international professional level.
Principle
The testing machine combines electronic technology with mechanical transmission to achieve a wide and accurate range of loading speed and force measurement. High Accuracy measurement and control of load and displacement are carried out, and automatic control tests of constant velocity loading and constant velocity displacement are supported.
Applications
Measurement Quality control, Apparel & Footwear, Rubber & Plastics, Metallurgical Steel, Machinery Manufacturing, Electronics, Automobile Production, Spinning & weaving Chemical Fiber, Wire and cable, Encasement Materials and Food, Instruments, Civil Nuclear Energy, Civil Aviation, Colleges and Universities, Scientific Research Laboratories, Commodity Inspection and Arbitration, Technical Supervision Department, Building Materials and Ceramics, Petrochemicals, Other Industries
Standards
"GB/T16491-1996 Electronic Multifunctional Testing Machine"
Steps
1. Start the testing machine and set the parameters.
2. Install the specimen and perform alignment.
3. Select the test mode (e.g. tensile, compression, bending, etc.).
4. Start the experiment and automatically record the data.
5. After the test, data processing and Linear dispersion analysis were carried out by computer.
6. Print the report.
Notice
Make sure the specimen is installed correctly before the test to avoid deflection.
- Regularly calibrate Sensors and measurement systems to ensure accuracy.
- Pay attention to safety during operation and avoid overloading.
- When using extended configurations such as extensometers, install them correctly according to the instructions.
- Keep the equipment clean to prevent dust from affecting the measurement results.
