Overview

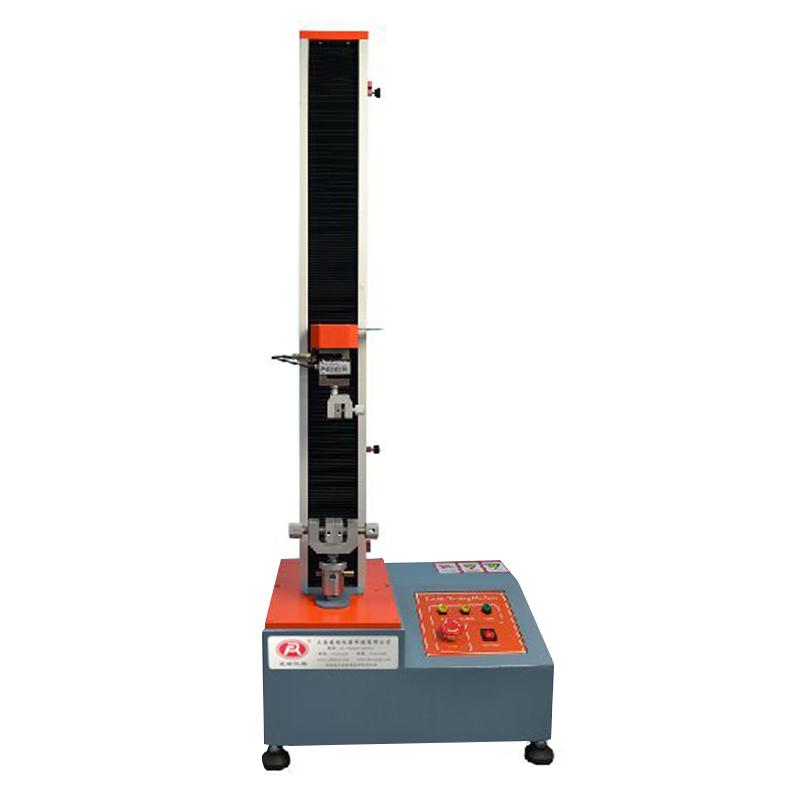

FR-108C desktop computer servo multi-functional material Universal Testing Machine is a new type of material testing machine combining electronic technology and mechanical transmission. It has a wide and accurate loading speed and force measurement range, and has High Accuracy and Sensitivity for the measurement and control of load, deformation and displacement. The model adopts a single space structure with a test space in the lower space. It is mainly suitable for metal and Non-metallic material tests with a test load of less than 1kN, and can calculate the maximum force, tensile strength, bending strength, Compressive Strength, Modulus of Elasticity, elongation at break, yield strength and other parameters.
Features
1. Driven by a servo motor, the beam is moved up and down through the transmission mechanism to achieve the test loading process.
2. The entire Control system has high cost performance and High Reliability.
3. The whole test process is controlled by microcomputer, and the load value, displacement value, deformation value, Test speed and Linear dispersion are displayed dynamically in real time.
4. Using a microcomputer for data processing analysis, the test results can be automatically saved. After the test, the test Linear dispersion can be re-called, and the test process can be reproduced through Linear dispersion traversal, or Linear dispersion comparison and Linear dispersion amplification can be carried out.
5. The test software under the full Chinese Windows platform has strong data and graphics processing functions, which can instantly print out complete test reports and test Linear dispersion.
6. With perfect limit protection, overload protection, emergency stop and other Safety protection functions.
Principle
The servo motor is used to drive the beam to move up and down through the transmission mechanism to realize the test loading process. The whole Control system has high Reliability, and the whole test process is controlled by the microcomputer, which dynamically displays the load value, displacement value, deformation value, Test speed and test Linear dispersion in real time, and performs data processing and analysis through the microcomputer.
Applications
Wire and cable, Hardware, Electronics, Encasement printing, Electronic equipment, Auto parts, Spinning & weaving leather, Apparel and footwear, Rubber and plastic products, Colleges and universities, Research laboratories, Commodity inspection and arbitration, Technical supervision departments
Steps
1. Prepare specimens and fixtures.
2. Start the testing machine and set the test parameters.
3. Install the sample to the stretching fixture.
4. Start the test, and the microcomputer controls the loading process.
5. Real-time monitoring of load, displacement, deformation and Linear dispersion.
6. After the test, return to the initial position automatically or manually.
7. Save and analyze test data and print reports.
Notice
• Power supply voltage is 220V, 50HZ, Power matching 0.4KW (according to different force value requirements, standard with different Power motors).
• Check whether the limit protection and overload protection functions are normal before the test.
• When the overload exceeds 10% of the maximum load, the machine automatically protects.
• Test speed range is controlled within 0.001~ 500mm/min.
• Clean and maintain the equipment promptly after use to avoid damage.
• Pay attention to safety during operation to avoid misuse of emergency stop function.
