Overview

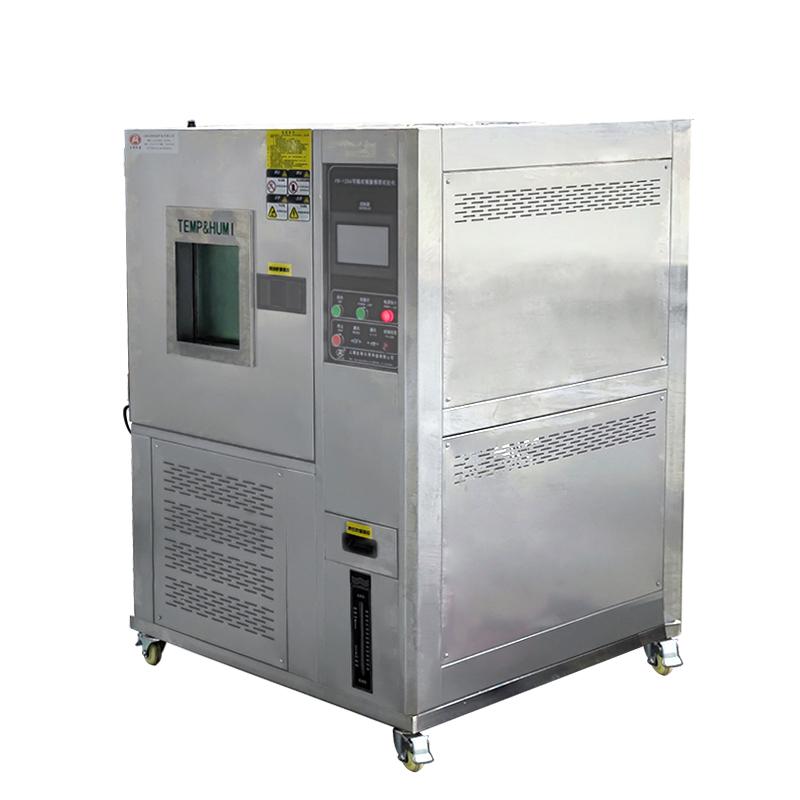

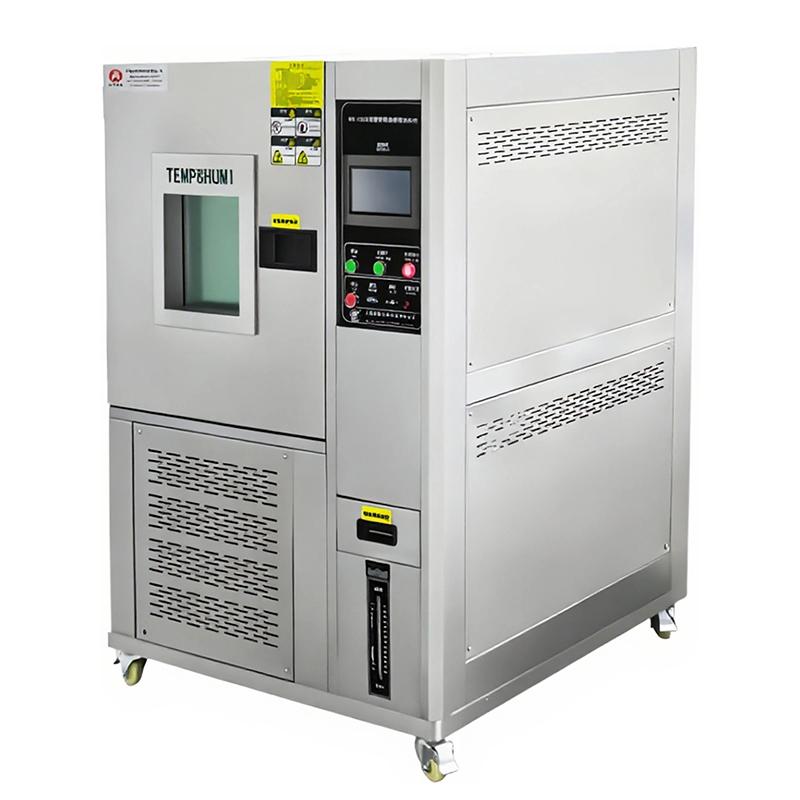

FARUI FR-1204-80 programmable constant temperature and humidity tester is a device specially used to test the heat resistance, cold resistance, dry resistance and moisture resistance performance of various materials. It is suitable for mass detection of electronics, plastic products, electrical appliances, instrumentation, food, vehicles, metals, chemicals, building materials, aerospace and other products. The machine adopts Chinese or English LCD display touch screen, simple operation, easy program editing, can display complete system operation data, execution and setting program Linear dispersion, and automatically display the cause and troubleshooting method when the operation is abnormal.
Features
1. High texture Appearance, the body adopts circular arc shape, the surface is treated by matte stripes, and the flat non-reaction handle is adopted, which is easy to operate, safe and reliable.

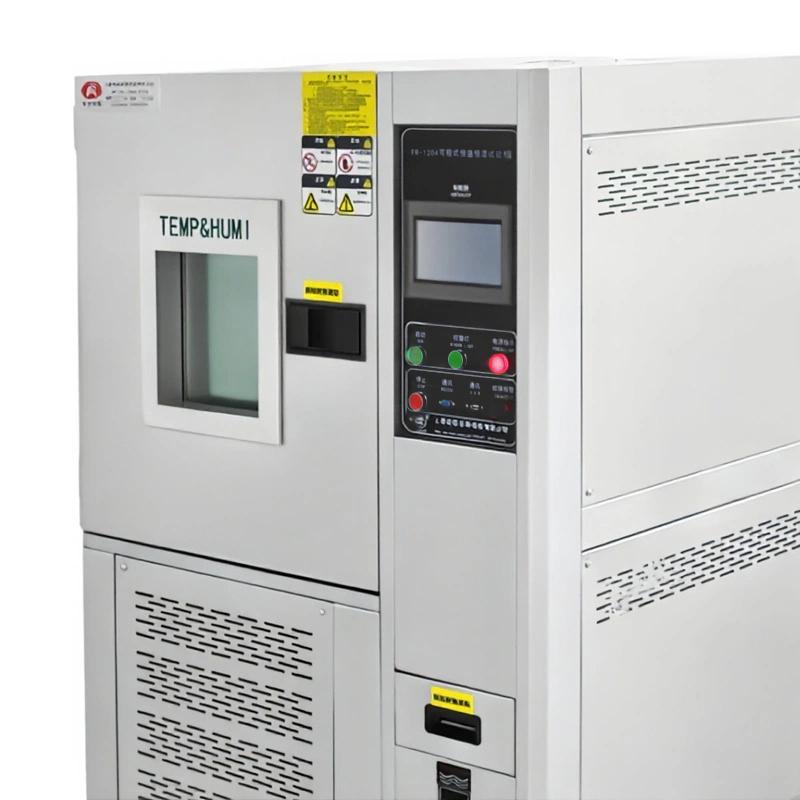

2. Rectangle laminated Glass viewing window, can be observed in the test, the window with sweat-proof electric heater device to prevent water vapor condensation water droplets, and high-luminance PL fluorescent lamp to maintain the lighting in the box.
3. The box door is double-decked to isolate the air tightness, effectively isolating the internal temperature leakage.
4. With an external water supply system, it is convenient to replenish the humidified bucket water supply and automatically recycle it for use.
5. The Compressor circulation system adopts lubricating oil that can effectively remove the condenser and capillary tubing, and the whole series adopts environmentally friendly refrigerants (R23, R404, R507).
6. The controller adopts imported LCD Display screen, which can display the measured value, set value and time at the same time.
7. The controller has multi-stage program editing and temperature and Humidity can be used for fast (OUICK) or slope (SLOP) control.

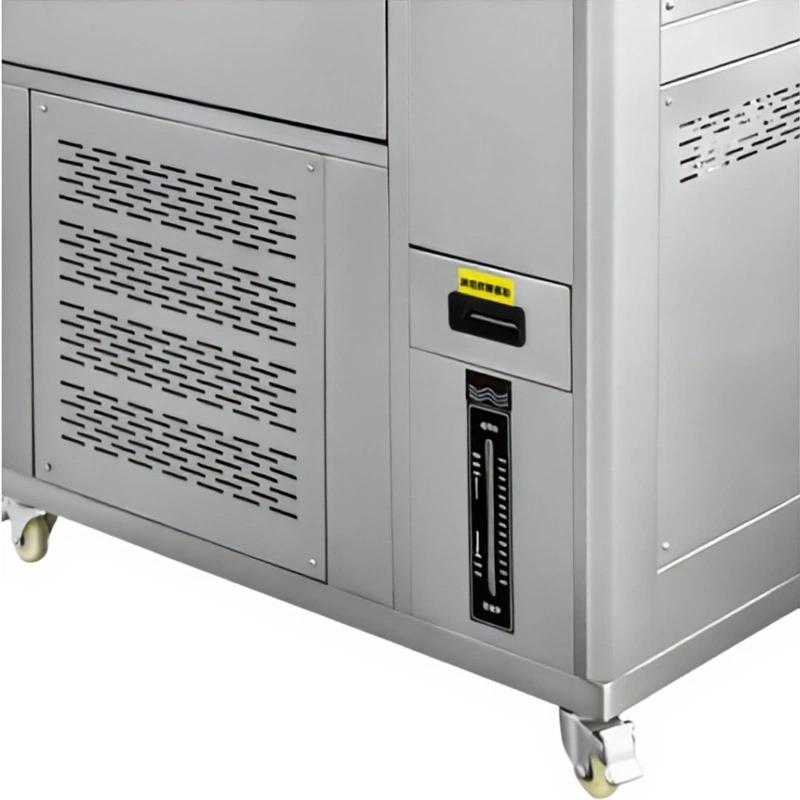

8. The built-in mobile pulley is easy to move and place, and has a strong positioning screw to fix the position.
Principle
The equipment achieves constant temperature and humidity environment through Compressor circulation system and controller, and adopts environmentally friendly refrigerant and high-efficiency lubricant removal technology to ensure Temperature uniformity and Stability. The controller precisely adjusts temperature and Humidity through multi-stage program editing and fast or slope control, while automatically replenishing and recovering humidified water through an external water supply system to maintain set conditions.
Applications
Electronics, plastic products, electrical appliances, instrumentation, food, vehicles, metals, chemicals, building materials, aerospace
Standards
GB 11158、GB 10589-89、GB 10592-89、GB/T 10586-89、GB/T 2423.1-2001、GB/T 2423.2-2001、GB/T 2423.3-93、GB/T 2423.4-93、GB/T 2423.22-2001、IEC 60068-2-1.1990、IEC 60068-2-2.1974、GJB 150.3、GJB 150.4、GJB 150.9
Notice
• Ambient Temperature should be maintained at 5~ 28 ℃.
• Power supply voltage must be 50/60HZ 380V.
• The heat load must not exceed 50W.
• Use environmentally friendly refrigerants (R23, R404, R507).
• The observation window has a sweat-proof electric heater device to prevent water vapor from condensing.
• The built-in mobile pulley needs to be fixed with strong positioning screws.
