Overview

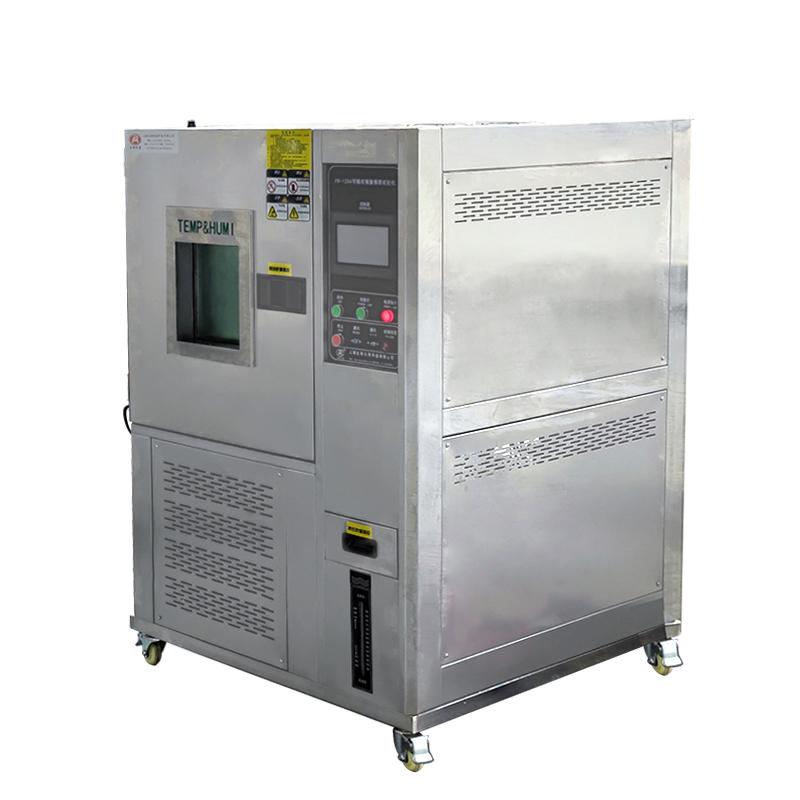

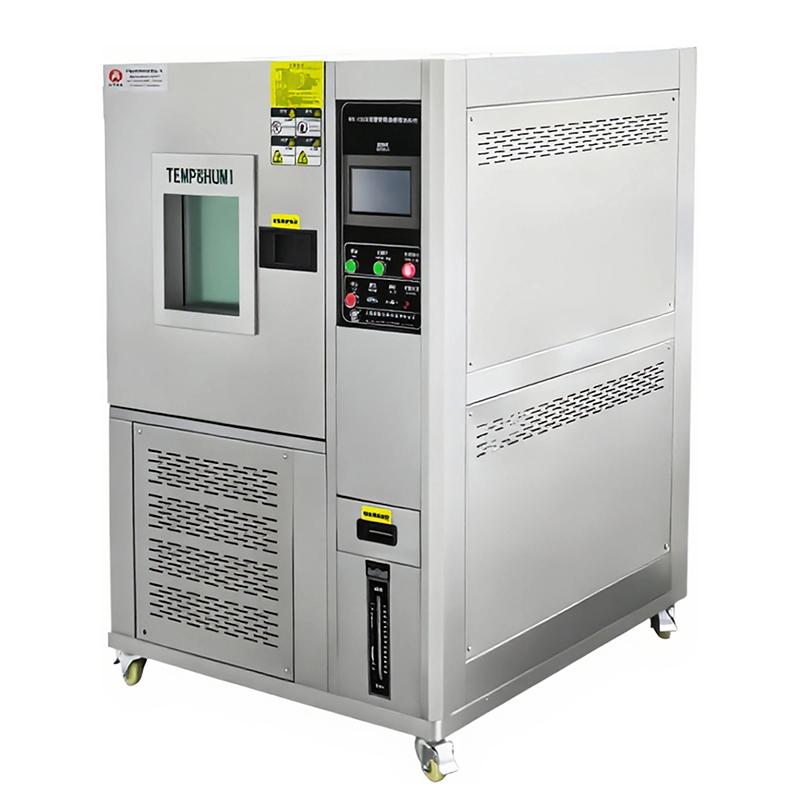

FARUI FR-1204-150 programmable constant temperature and humidity tester is a device specially used to test the heat resistance, cold resistance, dry resistance and moisture resistance performance of materials. It adopts Chinese or English LCD display touch screen, simple operation, easy program editing, can display complete system operation data, execution and setting program Linear dispersion, and automatically display the cause and troubleshooting method when abnormal.
Features
1. High-quality Appearance, Arc Shape, Matte Stripe Treatment, Flat No Reaction Handle, Safe and Reliable Operation.

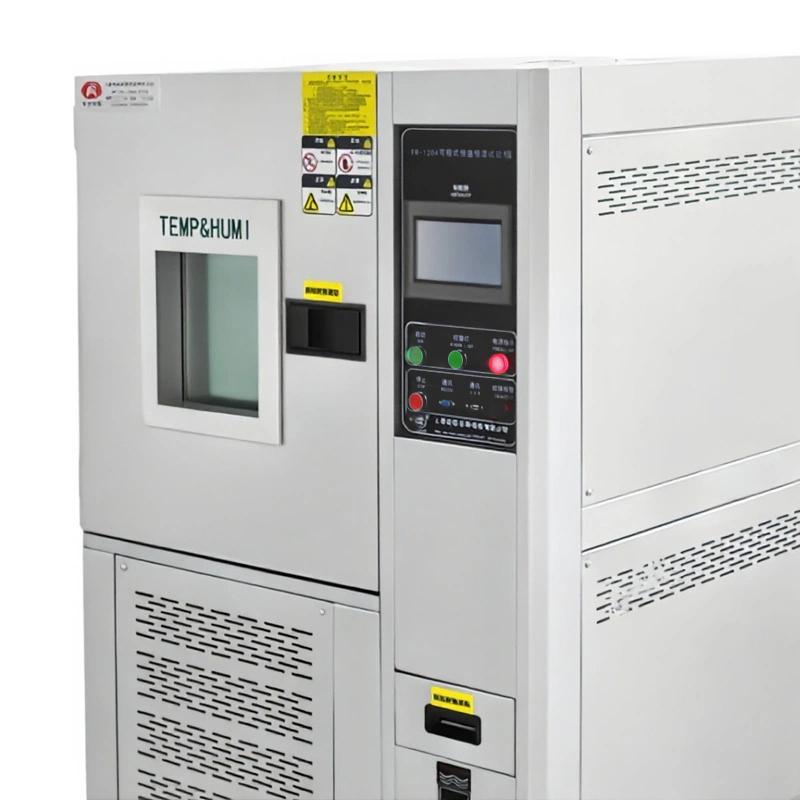

2. Rectangle laminated Glass viewing window, sweat-proof electric heater to prevent water condensation, high luminance PL fluorescent lamp lighting.
3. The box door is double-decked to isolate the air tightly, effectively preventing temperature leakage.

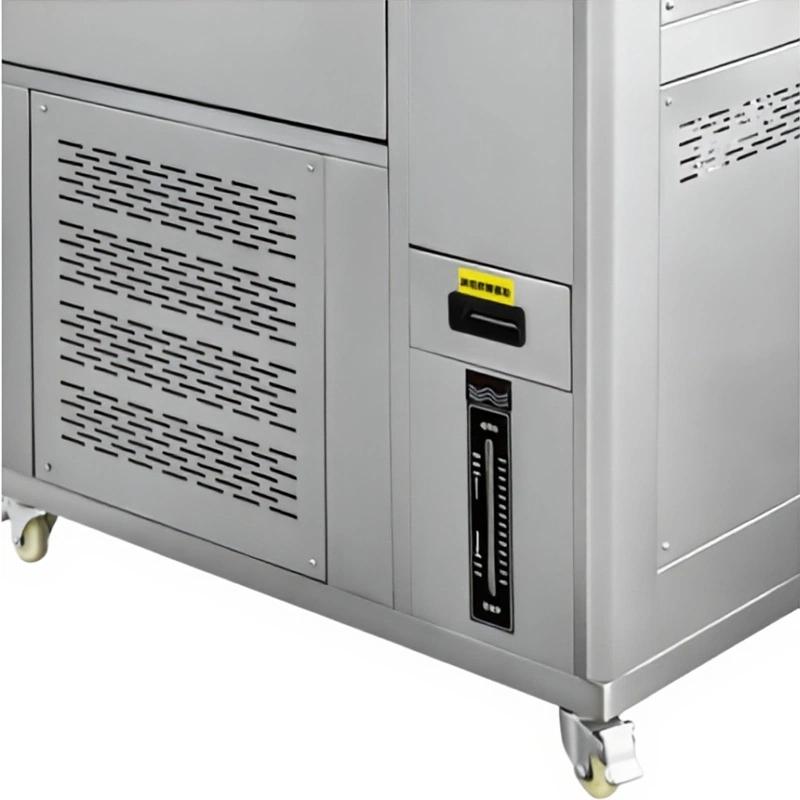

4. An external water supply system that automatically replenishes and recycles the humidified bucket water supply.
5. The Compressor circulation system effectively removes the lubricating oil between the condenser and the capillary tubing, and uses environmentally friendly refrigerants (R23, R404, R507).
6. Imported LCD Display screen, display measured value, set value and time at the same time.
7. Multi-stage program editing, temperature, Humidity can be done fast or slope control.
8. Built-in moving pulley for easy movement, strong positioning screw fixed position.
Principle
The equipment achieves precise temperature and Humidity regulation through a Compressor circulation system and a Temperature and Humidity Control system. Multi-wing circulating fans are used to ensure uniform temperature and Humidity in the box, and are programmed and monitored through touch screens to test the performance of materials in various environments.
Applications
Electronics, plastic products, electrical appliances, instrumentation, food, vehicles, metals, chemicals, building materials, aerospace
Standards
GB 11158、GB 10589-89、GB 10592-89、GB/T 10586-89、GB/T 2423.1-2001、GB/T 2423.2-2001、GB/T 2423.3-93、GB/T 2423.4-93、GB/T 2423.22-2001、IEC 60068-2-1.1990、IEC 60068-2-2.1974、GJB 150.3、GJB 150.4、GJB 150.9
Steps
1. Connect the power supply and turn on the device.
2. Select the language and set the test program through the touch screen.
3. Set the required temperature and Humidity parameters.
4. Start the test and observe the sample in the chamber.
5. After the test is completed, turn off the device and record the data.
Notice
• Ensure that the Working Ambient Temperature is within the range of 5~ 28 ° C.
• Power supply voltage needs to match 50/60HZ 380V.
• The heat load does not exceed 50W.
• Check whether the water supply system is normal before use.
• Avoid forced operation of equipment under abnormal circumstances.
