Overview

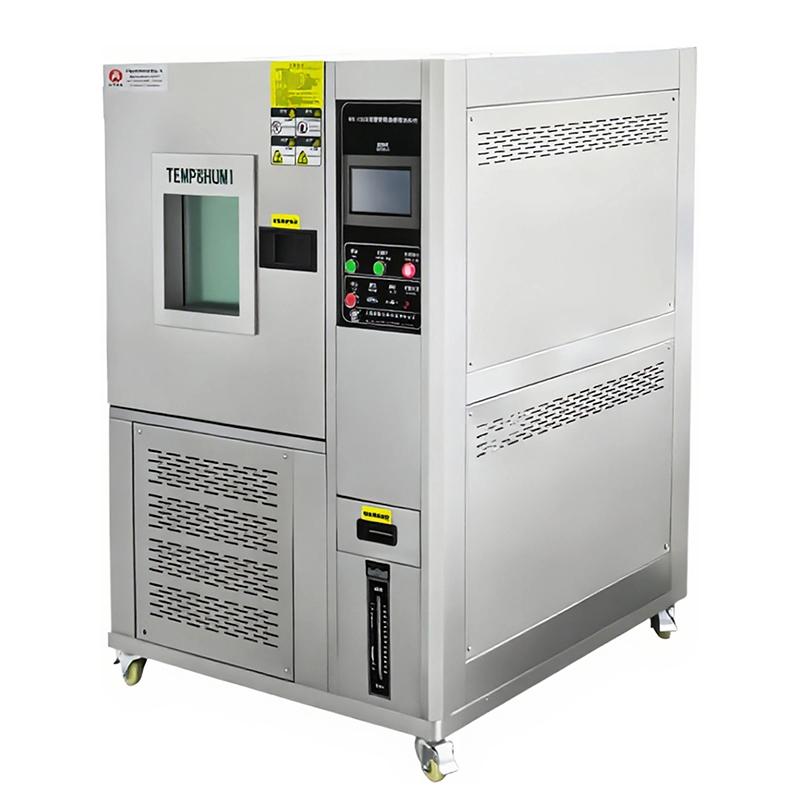

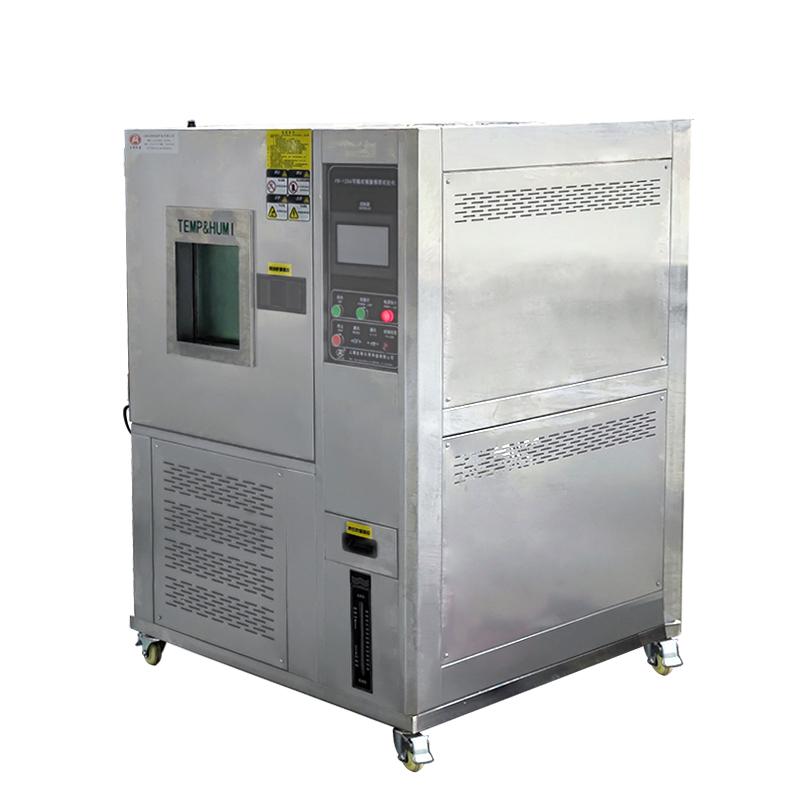

FARUI FR-1204-408 programmable constant temperature and humidity tester is a device used to test the heat resistance, cold resistance, dry resistance and moisture resistance performance of materials. It adopts Chinese or English LCD display touch screen, simple operation, easy program editing, can display system operation data, execution and setting program Linear dispersion, and automatically display the cause and troubleshooting method in case of abnormality.
Features
1. High-quality Appearance, Arc Shape, Matte Stripe Treatment, Flat No Reaction Handle, Safe and Reliable Operation.
2. Rectangle laminated Glass viewing window, sweat-proof electric heater to prevent water condensation, high luminance PL fluorescent lamp lighting.
3. The box door is double-decked to isolate the air tight, effectively preventing internal temperature leakage.

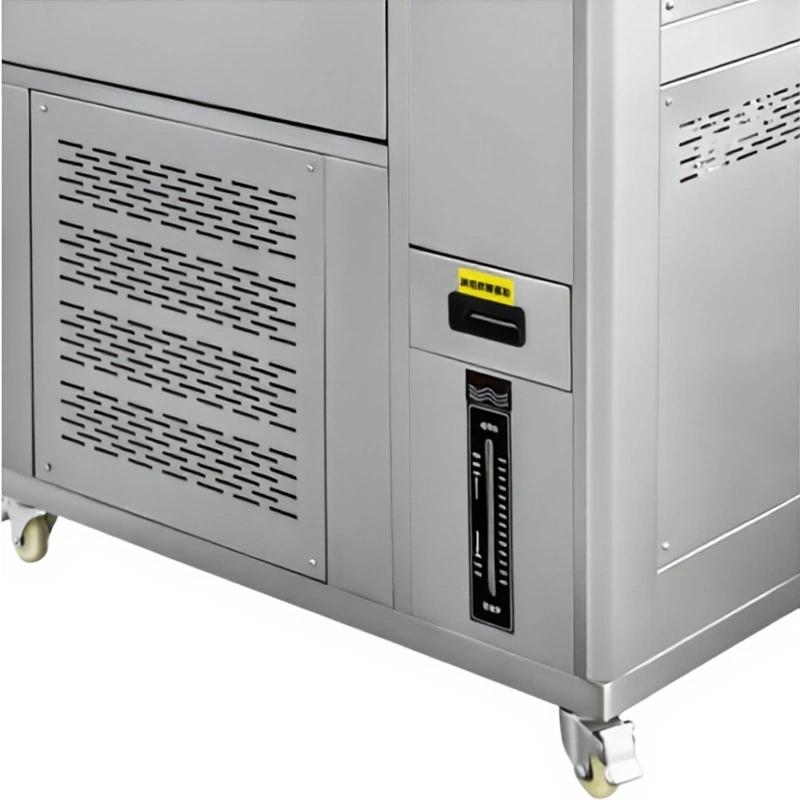

4. External water supply system, convenient for humidifying bucket water supply and automatic recycling.
5. The Compressor circulation system effectively removes the lubricating oil between the condenser and the capillary tubing, and uses environmentally friendly refrigerants (R23, R404, R507).

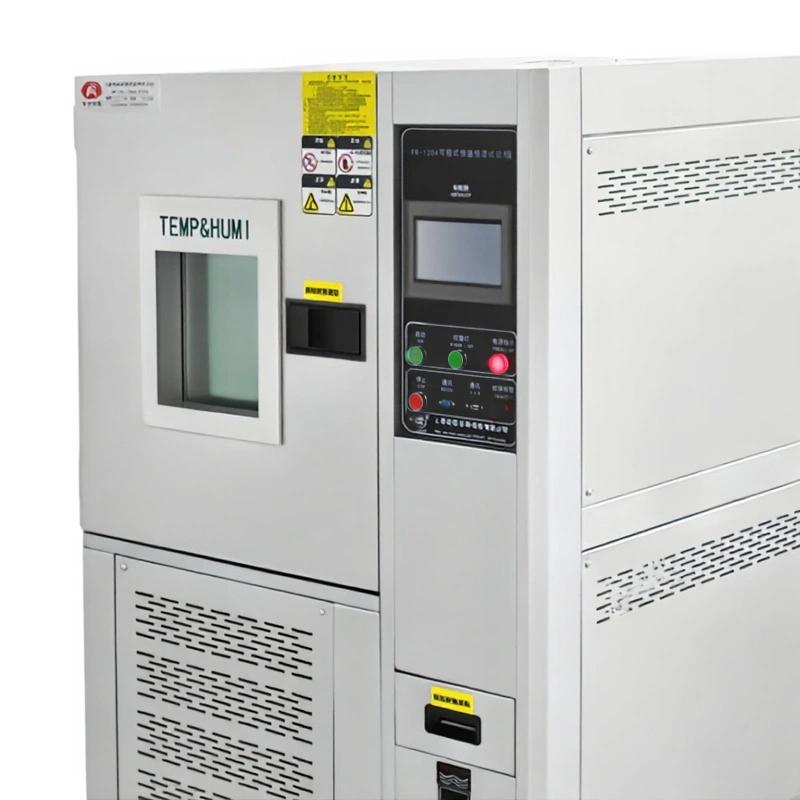

6. Imported LCD Display screen, display measured value, set value and time at the same time.
7. Multi-stage program editing, temperature, Humidity can be done fast or slope control.
8. Built-in moving pulley for easy movement, strong positioning screw fixed position.
Principle
The equipment achieves accurate constant temperature and humidity environment through Compressor circulation system and temperature Humidity Control system. High/low temperature resistant aluminum alloy multi-wing circulating fan is used to ensure uniform distribution of temperature and Humidity in the box, and multi-stage program editing and real-time monitoring are carried out through the controller.
Applications
Electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace and other products testing mass
Standards
GB 11158、GB 10589-89、GB 10592-89、GB/T 10586-89、GB/T 2423.1-2001、GB/T 2423.2-2001、GB/T 2423.3-93、GB/T 2423.4-93、GB/T 2423.22-2001、IEC 60068-2-1.1990、IEC 60068-2-2.1974、GJB 150.3、GJB 150.4、GJB 150.9
Steps
1. Connect the power supply and turn on the device.
2. Select the language and edit the test program through the touch screen.
3. Set the required temperature, Humidity parameters and control mode.
4. Start the test, observe the screen display data and Linear dispersion.
5. Turn off the device after the test is completed.
Notice
• Ambient Temperature should be maintained at 5~ 28 ℃.
• Power supply voltage needs to match 50/60HZ 380V.
• The heat load does not exceed 50W.
• Check whether the water supply system is normal before use.
• Troubleshooting with reference to screen prompts when abnormal.
