Overview

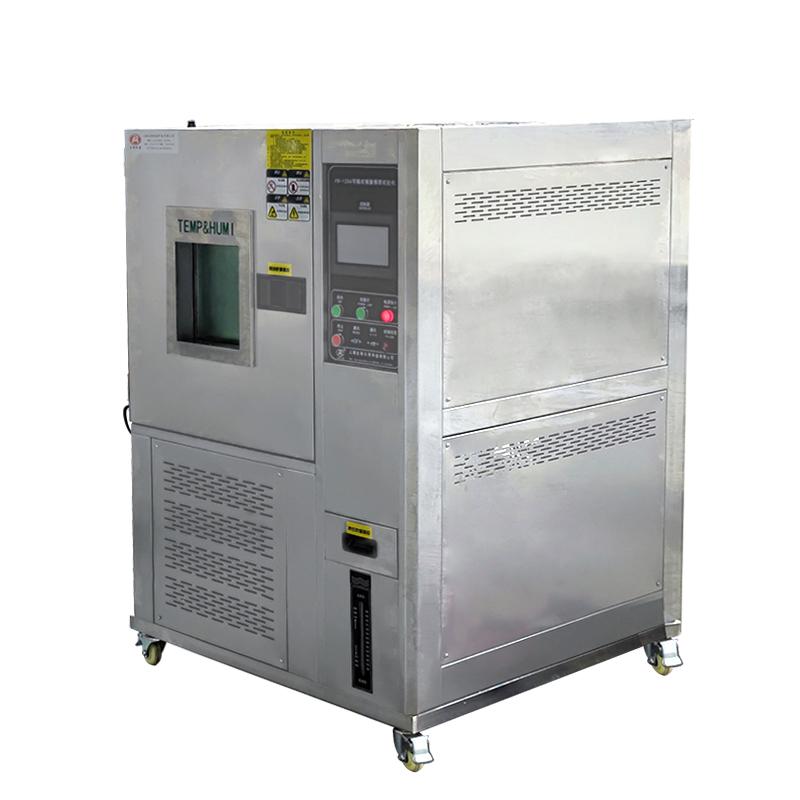

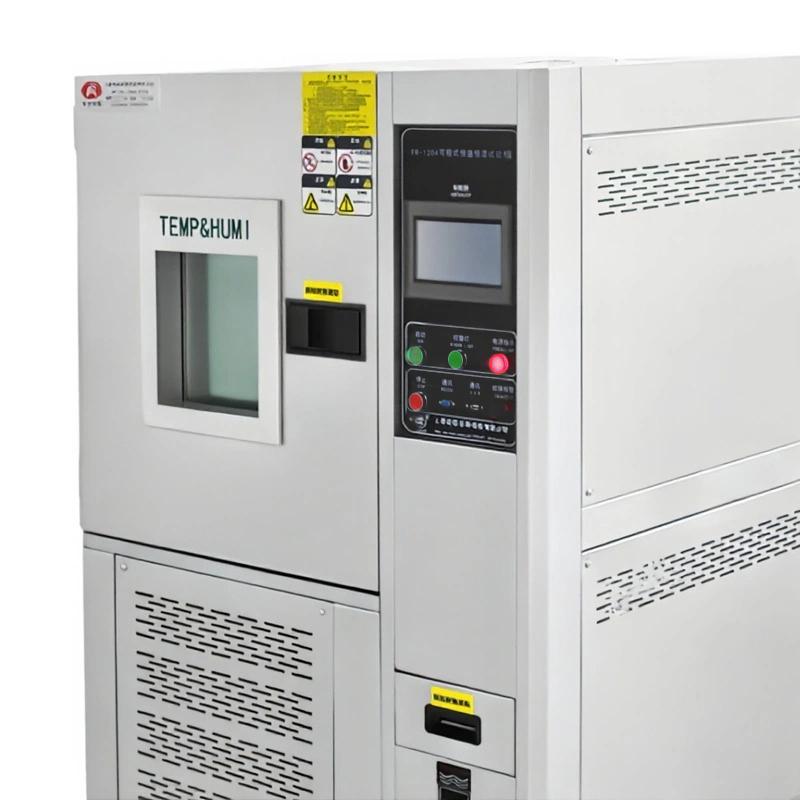

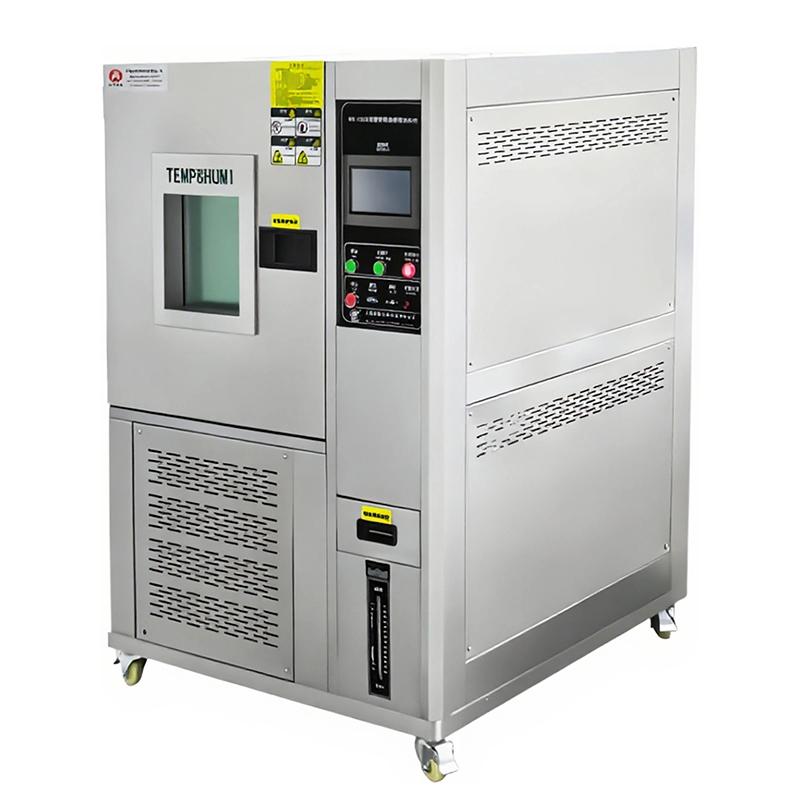

FARUI FR-1204-1000 programmable constant temperature and humidity tester is designed to test the heat resistance, cold resistance, dry resistance and moisture resistance performance of various materials. It is suitable for mass detection of products in the fields of electronics, plastic products, electrical appliances, instrumentation, food, vehicles, metals, chemicals, building materials, aerospace and other fields. The equipment adopts Chinese or English LCD display touch screen, simple operation, easy program editing, can display complete system operation data, execution and setting procedures Linear dispersion, and automatically display the cause and troubleshooting method when the operation is abnormal.
Features
1. High-quality Appearance, Arc Shape, Matte Stripe Treatment, Flat No Reaction Handle, Safe and Reliable Operation.
2. Rectangle laminated Glass viewing window, sweat-proof electric heater to prevent water condensation, high luminance PL fluorescent lamp lighting.
3. The box door is double-decked to isolate the air tight, effectively preventing internal temperature leakage.

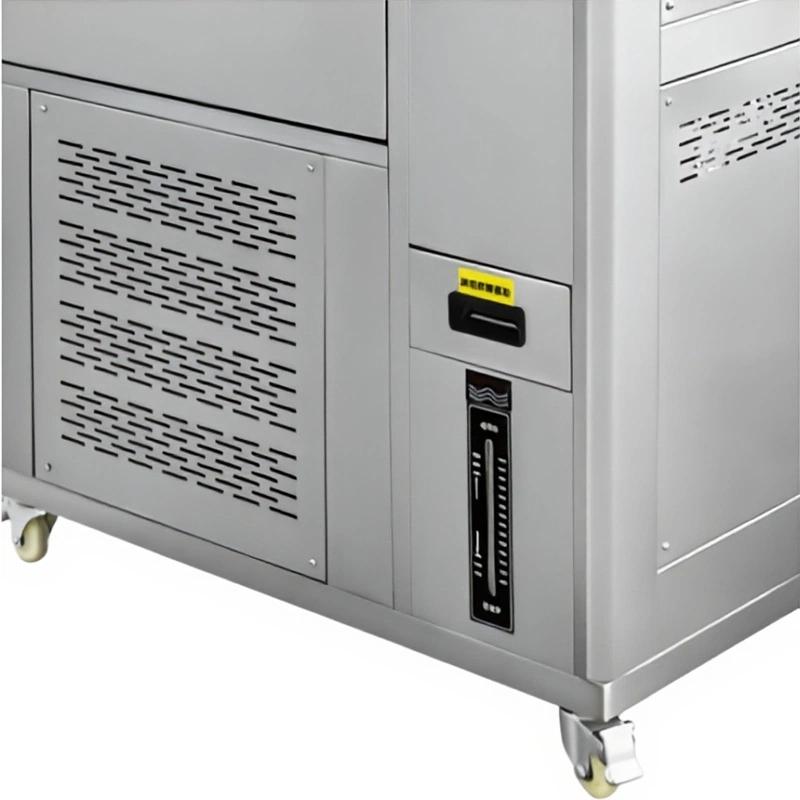

4. External water supply system, convenient to replenish humidified bucket water supply and automatically recycle.
The Compressor circulation system uses environmentally friendly refrigerants (R23, R404, R507) to effectively remove lubricating oil.
6. Imported LCD Display screen, display measured value, set value and time at the same time.
7. Multi-stage program editing, temperature, Humidity can be quickly or slope control.
8. Built-in moving pulley for easy movement, strong positioning screw fixed position.
Principle
The equipment realizes temperature control through Compressor circulation system and environmentally friendly refrigerant, adjusts Humidity in combination with humidification system, and adopts high and low temperature resistant aluminum alloy multi-wing circulating fan to ensure uniform temperature and Humidity in the box. The controller supports multi-stage program editing through LCD screen display and touch operation to achieve rapid or slope temperature and Humidity changes to meet various testing needs.
Applications
Electronics, plastic products, electrical appliances, instrumentation, food, vehicles, metals, chemicals, building materials, aerospace
Standards
GB 11158、GB 10589-89、GB 10592-89、GB/T 10586-89、GB/T 2423.1-2001、GB/T 2423.2-2001、GB/T 2423.3-93、GB/T 2423.4-93、GB/T 2423.22-2001、IEC 60068-2-1.1990、IEC 60068-2-2.1974、GJB 150.3、GJB 150.4、GJB 150.9
Steps
1. Connect the power supply and ensure that the voltage is 50/60Hz 380V.
2. Select the Chinese or English interface through the touch screen to edit the test program.
3. Set Temperature range (-40~ 150 ℃) and Humidity range (20~ 98% R. H).
4. Start the device and observe the LCD screen displaying the measured and set values.
5. Observe the sample through the viewing window during the test, using lighting if necessary.
6. After the test is completed, turn off the device and disconnect the power supply.
Notice
• Ambient Temperature should be maintained at 5~ 28 ℃.
• The heat load does not exceed 50W.
• Use the built-in pulley when moving the device, and tighten the positioning screw to fix it.
• Regularly check the water supply system to ensure that the humidifier is supplying water normally.
• Avoid operating when condensing water vapor in the viewing window, and the sweat-proof electric heater needs to work normally.
• In case of abnormal circumstances, refer to the Troubleshooting method displayed on the screen.
