Overview

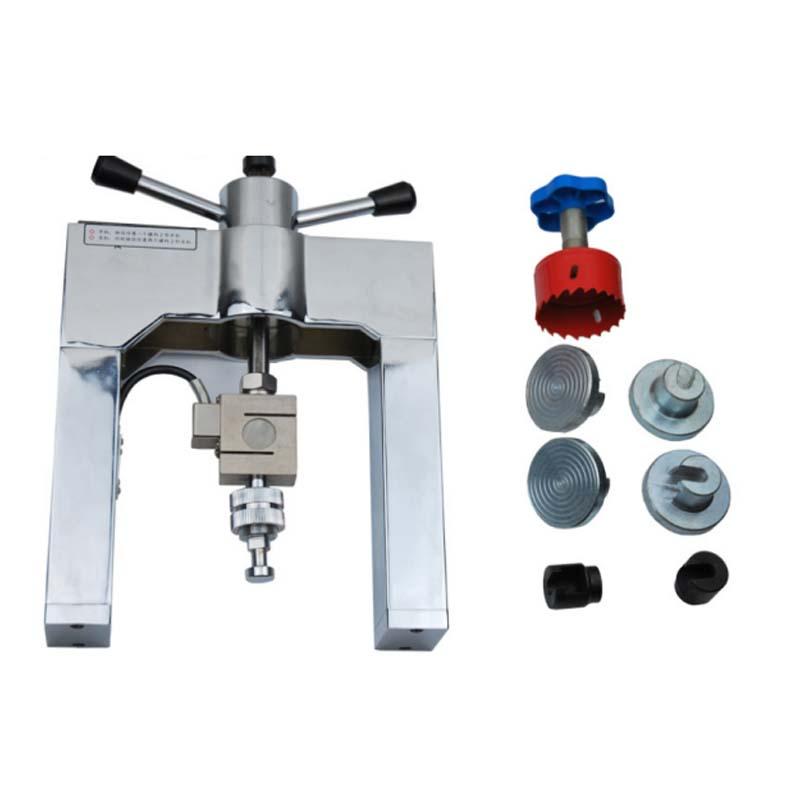

FR-10S coating Adhesion Tester is a new type of instrument newly developed by FARUI brand, which is mainly used in the detection of coating adhesion in the construction of high-speed rail projects. It is a testing instrument required by various Quality control and construction units.
Features
1. Range: 0~ 5MPa/0~ 10.00kN
2. Resolution: 0.001KN
3. Data storage: 500
4. Display mode: adjustable force value and intensity
5. Weight: 2.8Kg
6. Piston Travel: 65mm
7. Instrument structure: integrated
8. Peak hold: Yes
9. LCD lighting: Yes
10. Numerical correction: 10-segment polyline numerical correction to improve accuracy
11. Power supply: high-capacity lithium battery
12. Automatic shutdown: Yes
13. Host material: light alloy
Principle
The instrument conducts coating adhesion test by pulling method, measures the bonding strength between coating and substrate, uses force value and strength display mode, and combines numerical correction function to improve Test accuracy.
Applications
High-speed rail project construction, Quality control, Construction unit
Standards
JGJ144-2004 "exterior insulation engineering technical regulations", JGJ110-97 "construction engineering veneer brick bond strength inspection standards", JGJ126-2000 "exterior veneer brick engineering construction and acceptance regulations", GB/T 5210-2006 "Paints and varnish pulling method adhesion test", TB-T2965-2011 "railway concrete bridge deck waterproof layer technical conditions"
Steps
The information does not mention the specific operation steps
Notice
The information does not mention specific precautions
