Overview

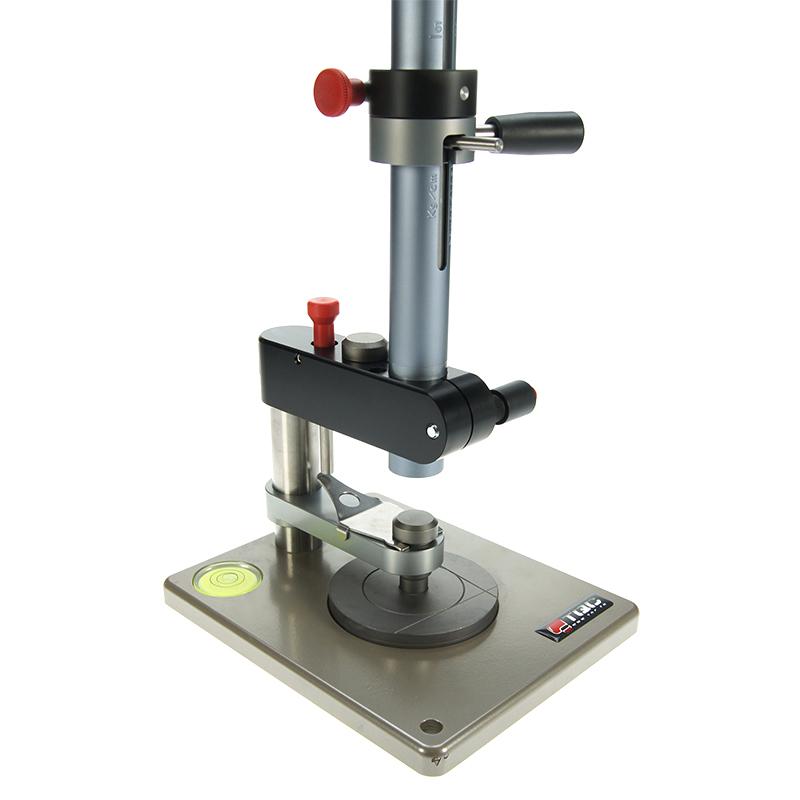

The Netherlands TQC SP1880 Impact Tester is a dedicated test test equipment for testing the impact resistance and flexibility of coatings. The equipment has a dual scale with a special indicator to ensure that the distance of each impact test is in accordance with the standard. The built-in level is used to correct the positioning. The maximum test plate thickness is 45mm.
Features
1. Dual scale design ensures Impact distance meets standards
2. Built-in bubble level is convenient for correction and positioning
3. Maximum test plate thickness up to 45mm
4. Equipped with special indicators to ensure test accuracy
5. Replaceable punches and die holders to adapt to different testing requirements
Principle
The SP1880 Impact Tester evaluates the impact performance and flexibility of coatings by releasing a weight of a specific height to free fall the punch on the test specimen. The device controls the impact energy by adjusting the height limit ring, and a built-in level ensures Smoothness of the test platform.
Applications
Coatings testing, material performance evaluation, quality control
Standards
ISO 6272-2:2002、ASTM D 2794:2004、JIS K 5600-5-3:1989、EN 12206-1:2004、EN 13523-5:2001、AAMA 2605-05、Qualicoat 2006、Qualisteelcoat 2008
Steps
1. Check whether the equipment is placed horizontally, all parts are installed correctly, and select the appropriate diameter punch
2. Press the red button to raise the punch and place the test sample on the die holder
3. Gently lower the weight to the punch and adjust the catheter to keep the 0 scale level with the drop weight bracket
4. Ensure that the punch can be raised and the drop weight can slide freely on the duct
5. Adjust the height limiting ring to the scale line of the desired height for testing
6. Raise the drop weight and lock it with release pliers
7. Release the release clamp in a safe state to drop the drop hammer
8. Press the red button to remove the test sample
9. Check coating condition
10, according to the actual situation, repeability operation test
Notice
• The level of the equipment must be checked before operation
Make sure all components are installed correctly
• Select the appropriate diameter punch for testing
• Pay attention to safety during operation to avoid accidental drop of the heavy hammer
• Check the coating condition in time after the test
• Sexual repeability tests are available as needed to obtain accurate results
