Overview

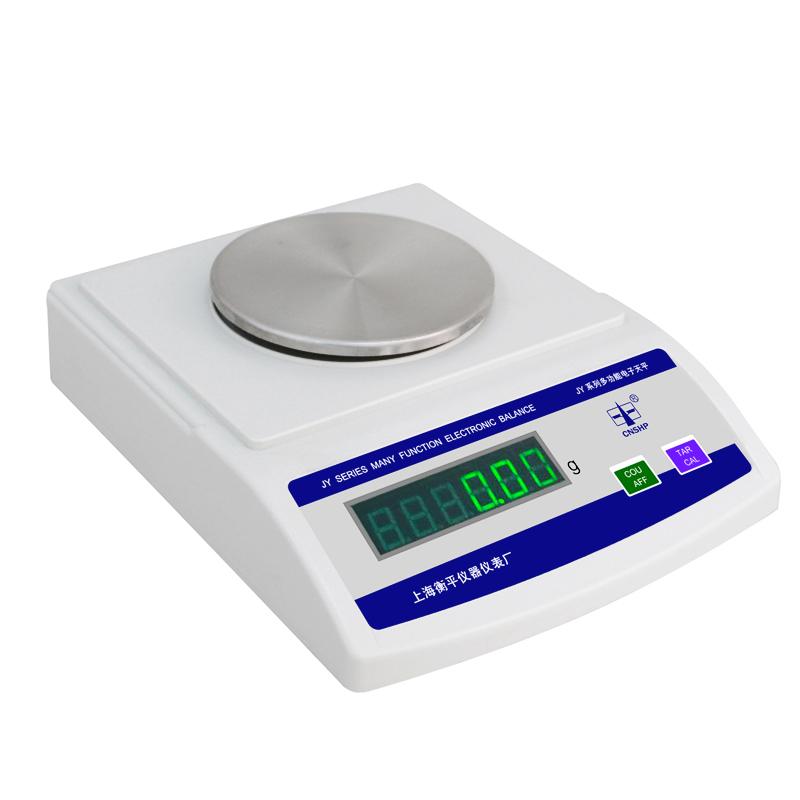

JY20002 Electronic Balance is a CNSHP brand JY series product. It adopts strain Sensor combined with high-performance single-chip microprocessor to ensure accurate and stable weighing results. With the characteristics of small size and low price, it can meet the general requirements of laboratory mass analysis. It is equipped with common functions such as counting and self-school, and is widely used in industry, agriculture, schools, scientific research and other units.
Features
1. High-definition LED display
2. Automatic fault detection and overload protection
3. Full range to tare weight
4. Automatic external calibration: automatic external calibration can be achieved with external calibration weight
5. Memory function
6. Counting function
7. Weighing unit conversion
8. JY series Electronic Balance (accuracy 0.01g) with plastic removable Draft Shield, left, right and top side lids are removable
Principle
JY20002 Electronic Balance uses strain Sensor combined with high-performance single-chip microprocessor for weighing. Sensor converts the weight signal into an electrical signal, and the microprocessor processes the signal and displays the result to ensure accurate and stable weighing.
Applications
Industry and agriculture, schools, scientific research and other units
Steps
1. Power on (220V 50Hz)
2. Place the item to be weighed in the pan (φ 130mm)
3. Use peeling function (range 0~ 2000g) to remove container weight
4. Read the weighing result of the display screen (accuracy 10mg)
5. Optional functions such as counting and unit conversion
6. Automatic external calibration with external calibration weights
Notice
• Power supply voltage 220V 50Hz
• The weighing range does not exceed 0~ 2000g to avoid overloading
• Make sure that the peeling range is within 0~ 2000g when using the peeling function
Periodically calibrate with external calibration weight
• Keep the pan clean to avoid affecting accuracy
• Draft Shield is removable, pay attention to the stable installation when using it
