Overview

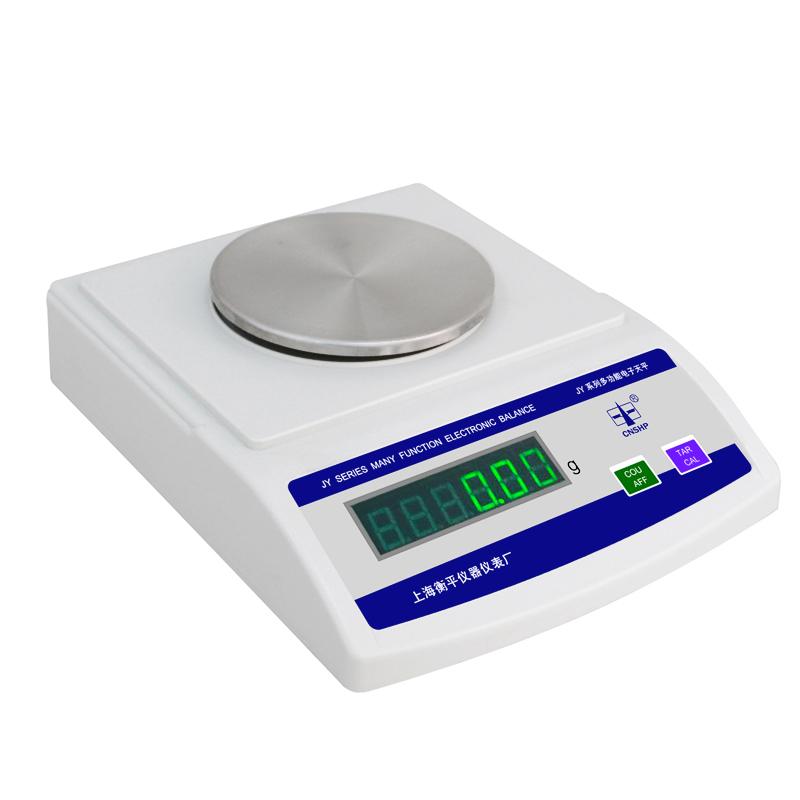

JY5001 Electronic Balance is a CNSHP brand JY series product. It adopts strain Sensor combined with high-performance single-chip microprocessor to ensure accurate and stable weighing results. With the characteristics of small size and low price, it can meet the general requirements of laboratory mass analysis, and is equipped with common functions such as counting and self-school. It is widely used in industry, agriculture, schools, scientific research and other units.
Features
1. High-definition LED display
2. Automatic fault detection and overload protection
3. Full range to tare weight
4. Automatic external calibration: automatic external calibration can be achieved with external calibration weight
5. Memory function
6. Counting function
7. Weighing unit conversion
8. With plastic removable Draft Shield, the left, right and top side lids can be removed
Principle
JY5001 Electronic Balance uses a strain sensor combined with a high-performance single-chip microprocessor to detect weight changes through the Sensor, and the microprocessor processes the data and displays the results to ensure accurate and stable weighing.
Applications
Industry, agriculture, schools, scientific research
Steps
1. Connect the power supply (220V 50Hz)
2. Place the item to be weighed in the pan (size φ 110mm)
3. Use the peeling function (range 0~ 500g) for weighing
4. Optional counting or unit conversion function
5. Automatic external calibration with external calibration weights
Notice
- Power supply voltage 220V 50Hz to avoid overload
- Keep Draft Shield clean and removable by calibrating with external calibration weight
- Net weight 2.3kg, Dimension 225 * 185 * 55mm to avoid improper handling
