Overview

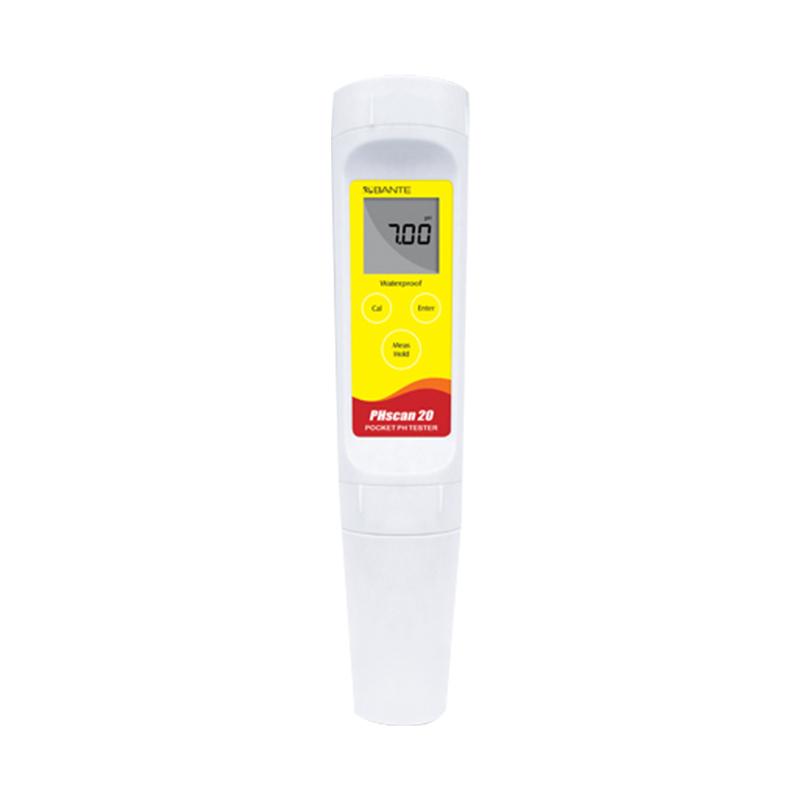

The BANTE PHscan20S-E is a standard pen pH Meter with planar pH Electrode for the measurement of the pH value of liquid or semi-solid substances. Measurement accuracy of 0.05 pH ensures accurate measurement in various environments with a 2 point button calibrate and automatic temperature compensation.
Features
1. Standard Pen pH Meter with Round Glass pH Electrode
2.2 point button calibrated, automatically identify pH standard buffer
3. Automatic temperature compensation to ensure accurate measurement of full scale
4. Key data lock, retain the current Measured value immediately
5. Automatic power off, effectively saving battery energy consumption

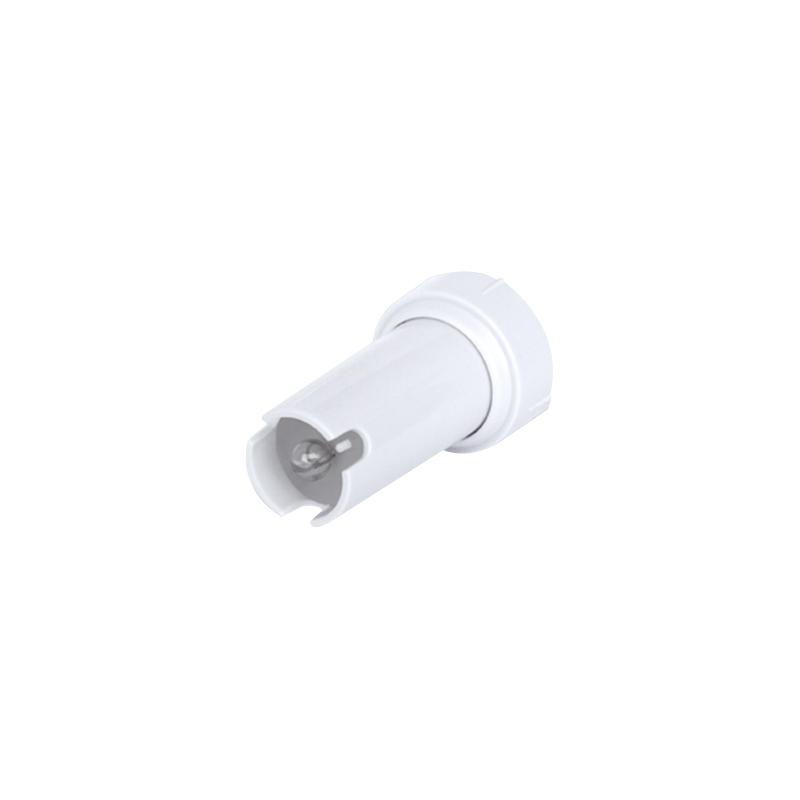

6. Replaceable Electrode to Reduce Instrument Maintenance and Use Costs
7. Full waterproof performance to ensure complete protection of the instrument in harsh environments
Principle
The instrument detects the pH value of the sample through planar pH Electrode, combined with automatic temperature compensation function to ensure accurate measurement results. Calibration method with 2 point button, automatic identification of standard buffer, to achieve rapid calibrating.
Applications
Fruit and vegetable and flour products, skin and paper measurement, paints and dyestuff inspection, cosmetics and other industrial applications
Standards
USA (pH4.01/7.00/10.01)
Steps
1. Turn on the instrument power
2. Use standard buffer for 2 point calibrating
3. Electrode immersion in the sample to be tested
4. Read the pH value after stabilization
5. Keys can be used to lock data
6. Clean Electrode and Power Off After Use
Notice
• Make sure Electrode is clean and free of contamination before use
• The specified standard buffer should be used when calibrating
• Avoid use beyond the Permissible Ambient Temperature Range (0~ 60 ° C)
• Regularly check the battery power and replace it in time
• No operation time before automatic shutdown of the instrument is 8 minutes
• Electrode is replaceable and requires the specified model to maintain performance
