Overview

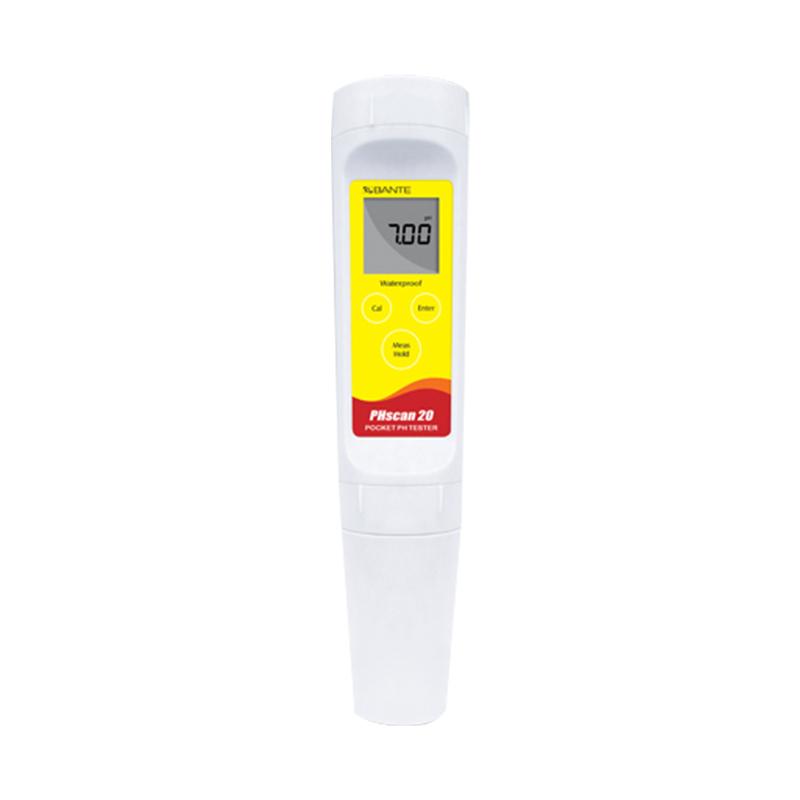

The BANTE PHscan20S-K is a standard pen pH Meter with planar pH Electrode for the measurement of the pH value of liquid or semi-solid substances. The meter supports 2 point button calibrating and automatic temperature compensation. Measurement accuracy is 0.05pH to ensure accurate measurement.
Features
1. Standard Pen pH Meter with Round Glass pH Electrode.
2.2 point button to calibrate, automatically identify pH standard buffer.
3. Automatic temperature compensation to ensure accurate measurement of the full range.
4. Key data lock, immediately retain the current Measured value.
5. Automatic power off, effectively saving battery energy consumption.
6. Replaceable Electrode, reducing instrument maintenance and use costs.
7. Full waterproof performance to ensure complete protection of the instrument in harsh environments.
Principle

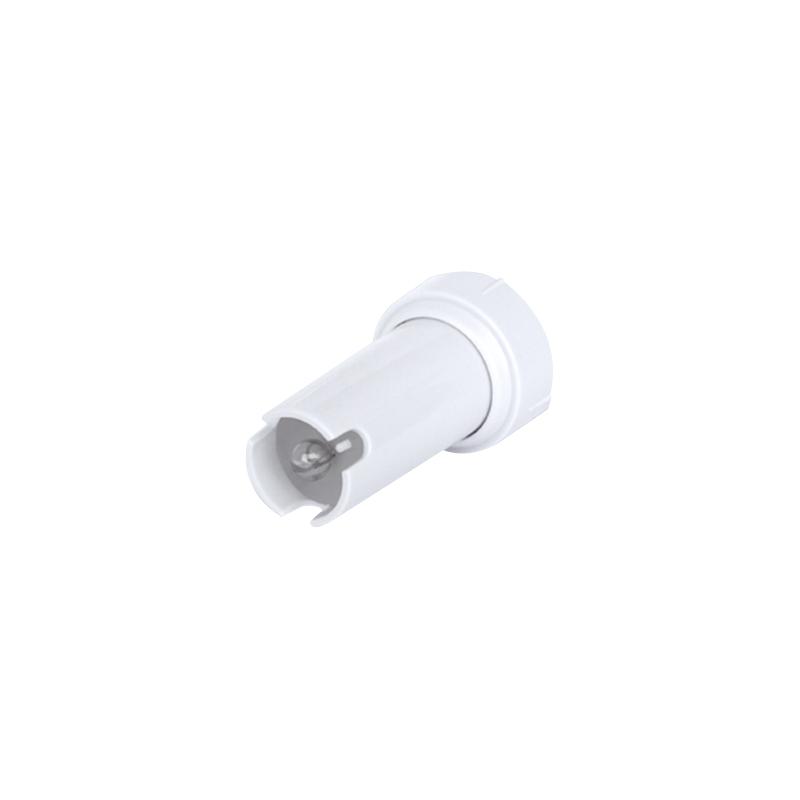

The meter detects the pH value in the sample through the E-PHSCAN-ST-100K Sensor, combined with the automatic temperature compensation function to ensure the measurement accuracy. The calibration process uses a 2-point button method to automatically identify the standard buffer and simplify the operation.
Applications
Fruit and vegetable and flour products, skin and paper measurement, paints and dyestuff inspection, cosmetics and other industrial applications
Standards
USA (pH4.01/7.00/10.01)
Steps
1. Turn on the meter power.
2. Use pH standard buffer for 2 point button calibrate.
3. Immerse the Electrode in the sample to be tested.
4. Read and record the pH Measured value, you can press the button to lock the data.
5. Clean Electrode after use, the meter can be shut down manually or automatically.
Notice
• Ensure that it is used within the ambient temperature range of 0~ 60 ° C.
• Regularly calibrate gauge with standard buffer to maintain accuracy.
• Avoid exposure of Electrode to air for a long time and clean it promptly after use.
• When the battery is low, replace it in time to ensure measurement continuity.
• The meter has an automatic shutdown function, which automatically shuts down after 8 minutes of no operation to save power.
