Overview

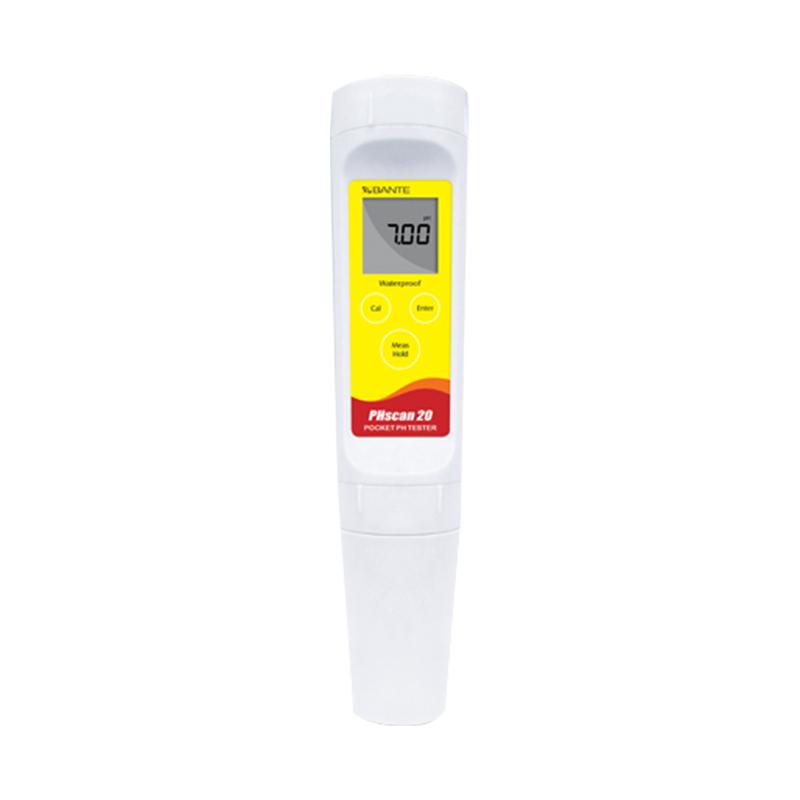

The BANTE PHscan20F-K is a standard pen pH Meter with planar pH Electrode for the measurement of pH values in liquid or semi-solid substances. Measurement accuracy is 0.05 pH with 2 point button calibrating and automatic temperature compensation.
Features
1. Standard Pen pH Meter with Round Glass pH Electrode.
2.2 point button to calibrate, automatically identify pH standard buffer.
3. Automatic temperature compensation to ensure accurate measurement of the full range.
4. Key data lock, immediately retain the current Measured value.
5. Automatic power off, effectively saving battery energy consumption.

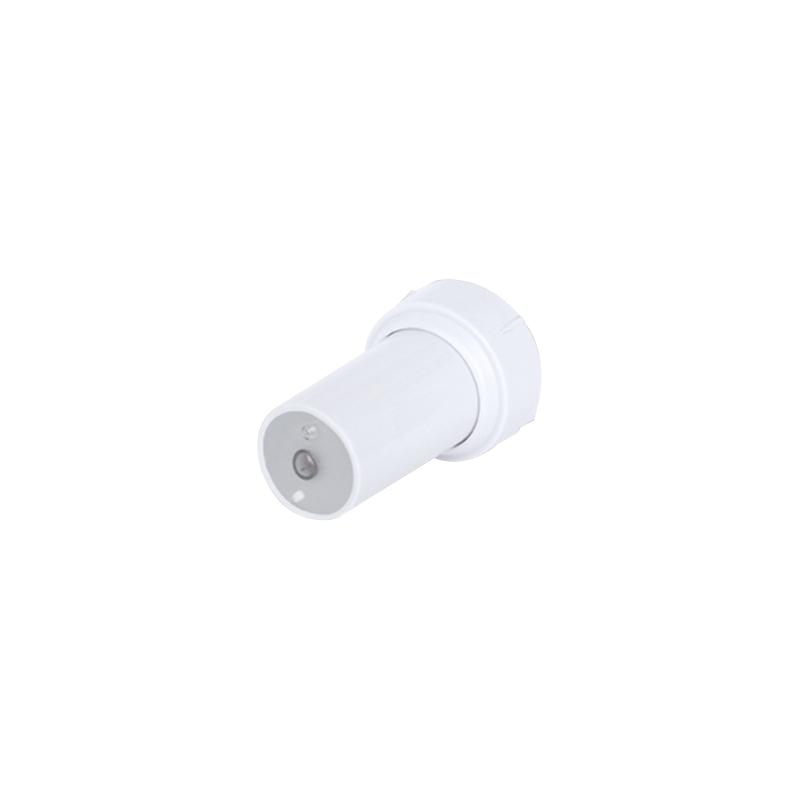

6. Replaceable Electrode, reducing instrument maintenance and use costs.
7. Full waterproof performance to ensure complete protection of the instrument in harsh environments.
Principle
The meter detects the ph value through the E-PHSCAN-FT-100K Sensor, combined with the automatic temperature compensation function, to ensure the measurement accuracy. Adopt 2 point Calibration method and calibrate with USA standard buffer.
Applications
Fruit and vegetable and flour products, skin and paper measurement, paints and dyestuff inspection, cosmetics and other industrial applications
Standards
USA (pH4.01/7.00/10.01)
Steps
Use pH standard buffer for 2 point calibrate.
2. Electrode immersion in the sample to be measured ph value.
3. The current measurement data can be locked by pressing the button.
4. The meter automatically shuts down after 8 minutes of inactivity to save power.
Notice
• Electrode cleaning before use.
• To calibrate, use the specified USA standard buffer.
• Avoid use beyond the ambient temperature range of 0~ 60 ° C.
• Regularly check the battery level to ensure normal measurement.
• Electrode replaceable to reduce maintenance costs.
