Overview

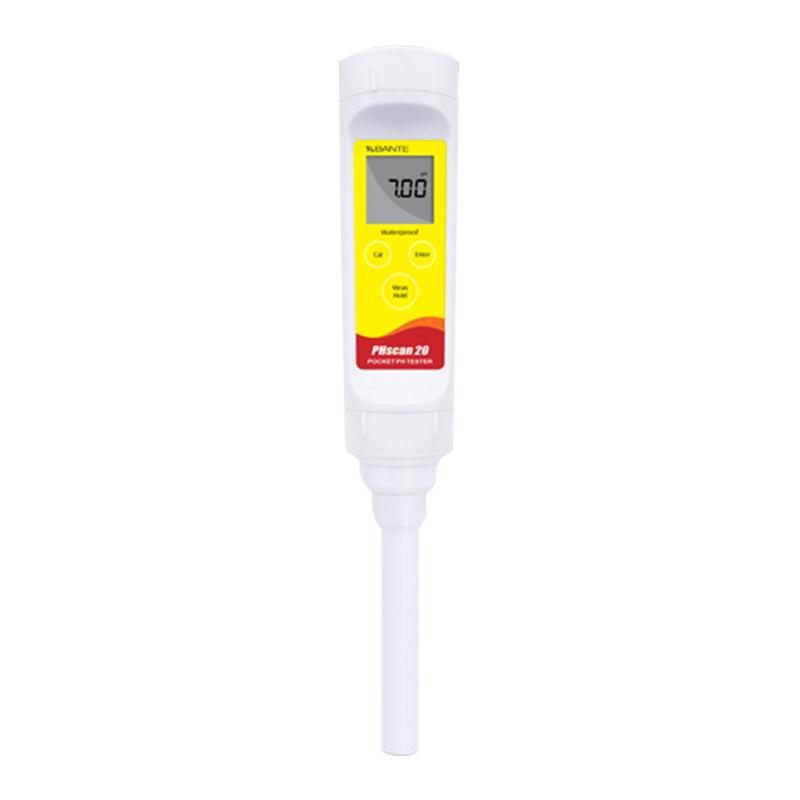

The BANTE PHscan20L is a standard pen pH Meter with long-range planar pH Electrode for the measurement of pH values in small samples. Measurement accuracy of 0.05 pH with 2 point button calibrating and automatic temperature compensation ensures accurate measurements in the range of 0.0 to 14.0pH.
Features
1. Standard Pen pH Meter with Round Glass pH Electrode.
2.2 point button to calibrate, automatically identify pH standard buffer.
3. Automatic temperature compensation to ensure accurate measurement of the full range.
4. Key data lock, immediately retain the current Measured value.
5. Automatic power off, effectively saving battery energy consumption.
6. Replaceable Electrode, reducing instrument maintenance and use costs.
7. Full waterproof performance to ensure complete protection of the instrument in harsh environments.
Principle
Measurement accuracy is ensured by measuring the pH value of the sample through E-PHSCAN-LT-100K Sensor, combined with automatic temperature compensation function. 2-point Calibration method is used to automatically identify the standard buffer and retain the current Measured value through data locking function.
Applications
Fruit and vegetable and flour products, skin and paper measurement, paints and dyestuff inspection, cosmetics and other industrial applications
Steps
1. Turn on the meter power.
2. Use pH standard buffer for 2 point button calibrate.
3. Immerse the Electrode in the sample to be tested.
4. Read and record the pH Measured value, you can press the button to lock the data.
5. Clean Electrode after use, the meter can be turned off manually or automatically.
Notice
• Only calibrate using USA standard pH buffer (pH 01/7.00/10.01).
• Avoid use beyond the ambient temperature range of 0~ 60 ° C.
• Regularly check the status of the Electrode and replace the replaceable Electrode if necessary.
• Make sure the battery is fully charged to last about 150 hours of use.
• The meter has full waterproof performance, but it is still necessary to avoid long-term soaking.
