Overview

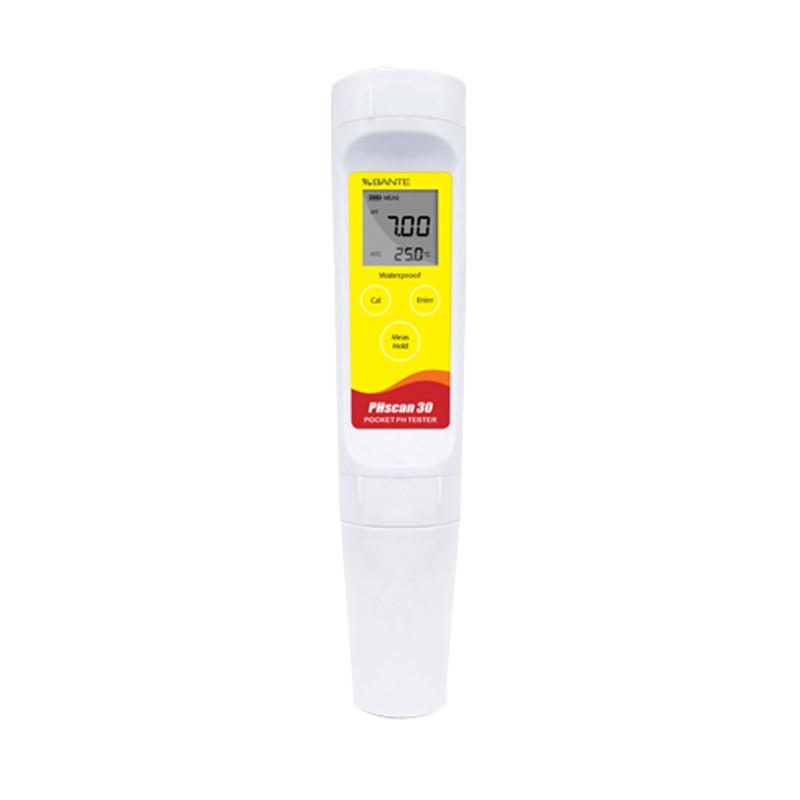

The BANTE PHscan30S-E is a High Accuracy Pen pH Meter with Round Glass pH Electrode with a built-in system menu to customize 5 functional parameters. The meter has an automatic temperature compensation function for the measurement of the pH value of conventional liquids. Measurement accuracy is 0.01 pH.
Features
1. High Accuracy Pen pH Meter with Dual Display LCD.
2. Round Glass pH Electrode, fully sensing the acid alkalinity value of the liquid.
3.1 to 3 point button calibrate to automatically identify USA or NIST standard buffer.
4. Automatic temperature compensation, providing accurate Measured value in the full range.
5. Automatic end point locking, maintaining stable readings for easy browsing or recording.
6. Low battery alarm icon, prompting battery residual power.
7. Automatic power off, effectively saving battery energy consumption.
8. Built-in system menu, 5 function parameters such as pH buffer standard, number of calibrated points, temperature unit, automatic or manual data locking, timing or manual shutdown can be customized.
9. One-click reset (Reset), automatically restore the meter to the factory default settings.

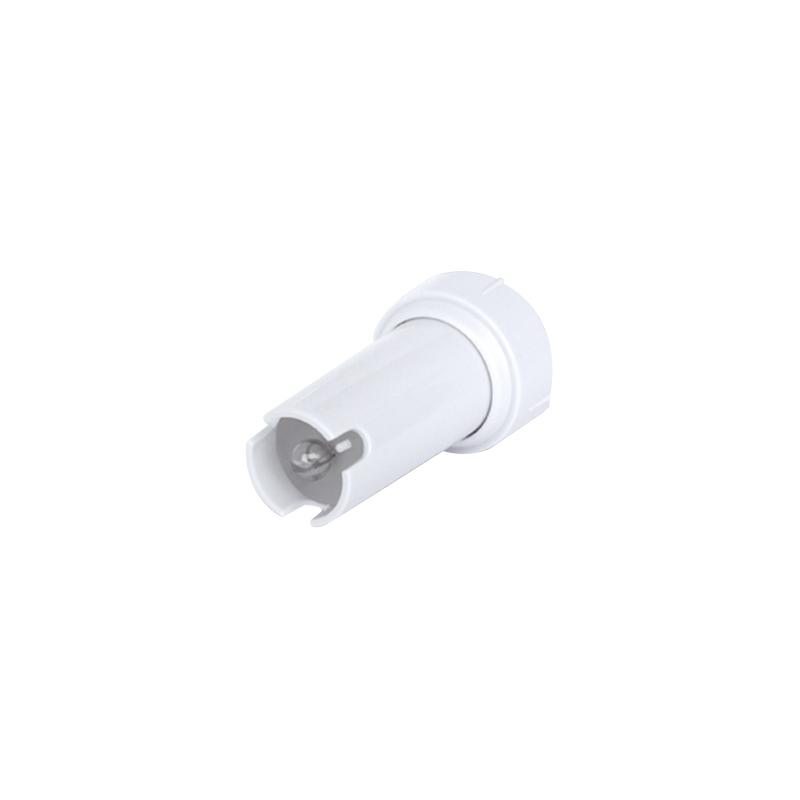

10. Replaceable Electrode, reducing instrument maintenance and use costs.
11. Full waterproof performance to ensure complete protection of the instrument in harsh environments.
Principle
Measured pH values are provided by the circular Glass pH Electrode for sensing the alkalinity of liquids, combined with automatic temperature compensation. The built-in system menu allows users to customize multiple parameters, supports 1 to 3 point button calibrate, and automatically recognizes standard buffers.
Applications
Water and wastewater treatment, research and education, environment monitoring and aquaculture, aquariums and swimming pools, drinking water and other industrial applications
Steps
1. Turn on the meter power.
2. Choose 1 to 3 point calibrate as needed, calibrate using USA or NIST standard buffer.
3. Immerse the Electrode in the liquid to be tested.
4. The instrument automatically performs temperature compensation and measurement.
5. After the reading stabilizes, automatically or manually lock the data.
6. Clean the Electrode and turn off the power after use.
Notice
• Make sure Electrode is clean and free of contamination before use.
• The specified standard buffer should be used when calibrating.
• Avoid use beyond the ambient temperature range of 0~ 60 ° C.
• Regularly check the battery level and replace it in time when the battery is low.
• The meter has an automatic shutdown function, which will automatically shut down without operation for a long time to save power.
• Electrode is replaceable and needs to be replaced in time to maintain accuracy when damaged.
