Overview

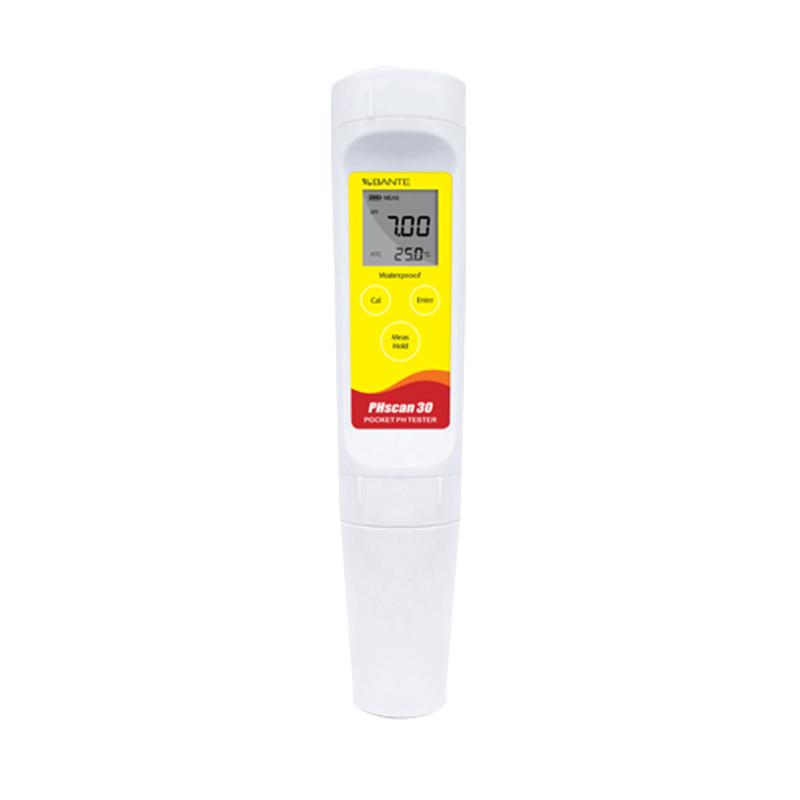

BANTE PHscan30F-E is a High Accuracy Pen pH Meter, equipped with planar pH Electrode, built-in system menu can customize 5 functional parameters, the meter has automatic temperature compensation function, suitable for measurement of liquid or semi-solid substances pH value, such as jelly, frost, etc. Measurement accuracy is 0.01pH.
Features
1. High Accuracy Pen pH Meter with Dual Display LCD.
2. Round Glass pH Electrode, fully sensing the acid alkalinity value of the liquid.
3.1 to 3 point button calibrate to automatically identify USA or NIST standard buffer.
4. Automatic temperature compensation, providing accurate Measured value in the full range.
5. Automatic end point locking, maintaining stable readings for easy browsing or recording.
6. Low battery alarm icon, prompting battery residual power.
7. Automatic power off, effectively saving battery energy consumption.
8. Built-in system menu, 5 function parameters such as pH buffer standard, number of calibrated points, temperature unit, automatic or manual data locking, timing or manual shutdown can be customized.
9. One-click reset (Reset), automatically restore the meter to the factory default settings.

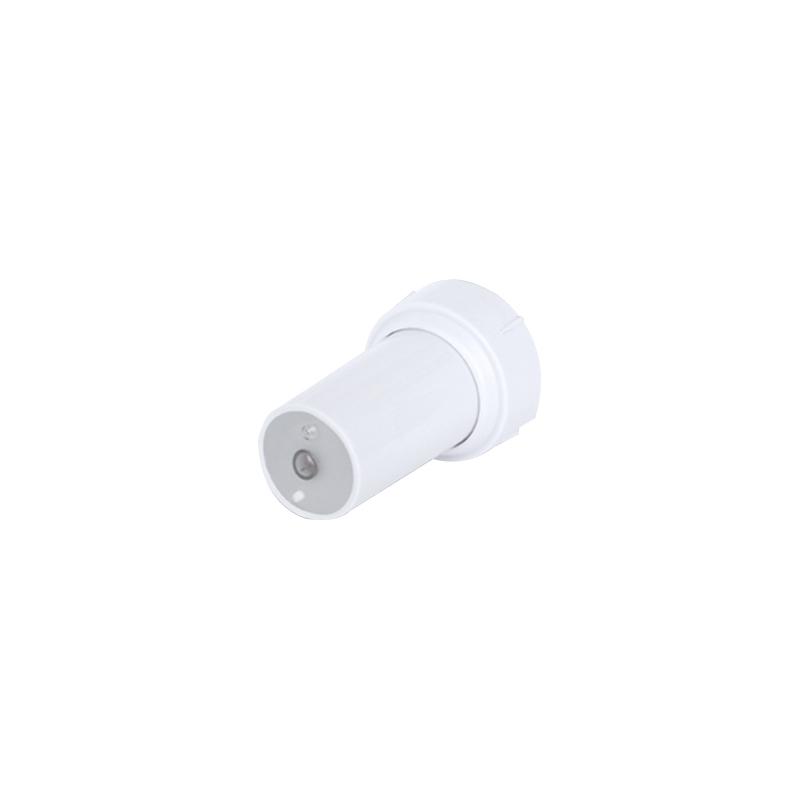

10. Replaceable Electrode, reducing instrument maintenance and use costs.
11. Full waterproof performance to ensure complete protection of the instrument in harsh environments.
Principle
Measured pH values over the full range are provided through circular Glass pH Electrode sensing of the alkalinity of liquids, combined with automatic temperature compensation. The built-in system menu allows users to customize parameters such as buffer criteria and calibrated points to ensure measurement accuracy and adaptability.
Applications
Food industry, agriculture, printing and dyeing industry, printing industry, cosmetics industry, beauty industry
Standards
USA standards, NIST standards
Steps
1. Turn on the meter power.
2. Use 1 to 3 point buttons to calibrate and automatically identify USA or NIST standard buffers.
3. Immerse the Electrode in the liquid or semi-solid substance to be tested.
4. The instrument automatically performs temperature compensation and measurement, and automatically or manually locks the data after the reading is stable.
5. Clean Electrode after use and shut down manually or automatically as required.
Notice
• Make sure Electrode is properly calibrated before measurement.
• Avoid use beyond the Permissible Ambient Temperature (0~ 60 ° C).
• Regularly check the battery level and replace it in time when the battery is low.
• Clean Electrode promptly after use to prolong service life.
• When used in harsh environments, pay attention to the waterproof performance of the instrument.
• If you need to restore the default settings, you can use the one-click reset function.
