Overview

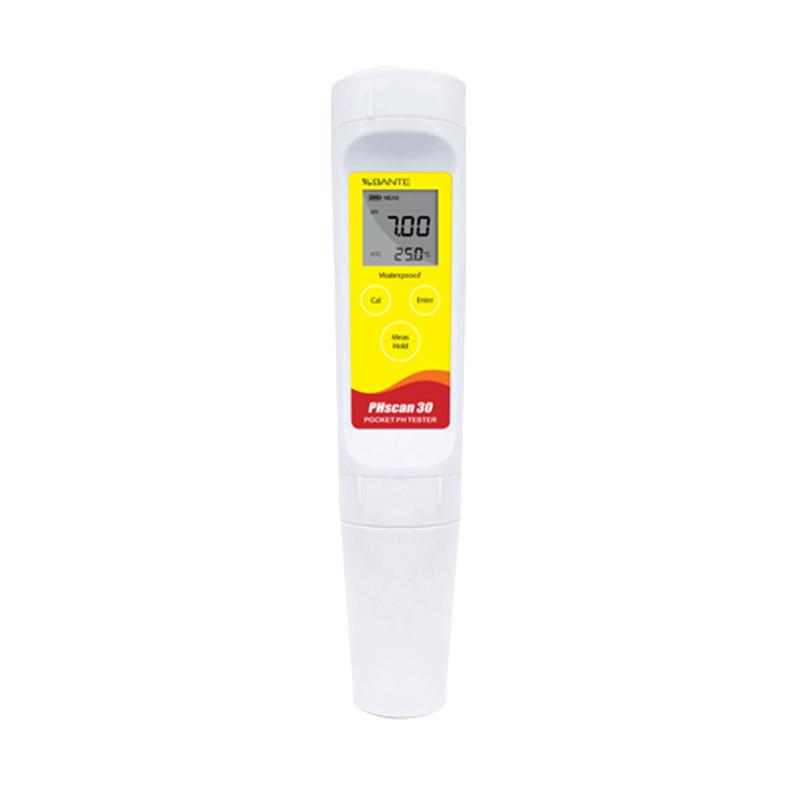

BANTE PHscan30F-K is a High Accuracy Pen pH Meter, equipped with planar pH Electrode, built-in system menu can customize 5 functional parameters, the meter has automatic temperature compensation function, suitable for the measurement of liquid or semi-solid substances pH value, such as jelly, frost, etc. Measurement accuracy is 0.01pH.
Features
1. High Accuracy Pen pH Meter with Dual Display LCD.
2. Round Glass pH Electrode, fully sensing the acid alkalinity value of the liquid.
3.1 to 3 point button calibrate to automatically identify USA or NIST standard buffer.
4. Automatic temperature compensation, providing accurate Measured value in the full range.
5. Automatic end point locking, maintaining stable readings for easy browsing or recording.
6. Low battery alarm icon, prompting battery residual power.
7. Automatic power off, effectively saving battery energy consumption.
8. Built-in system menu, 5 function parameters such as pH buffer standard, number of calibrated points, temperature unit, automatic or manual data locking, timing or manual shutdown can be customized.
9. One-click reset (Reset), automatically restore the meter to the factory default settings.

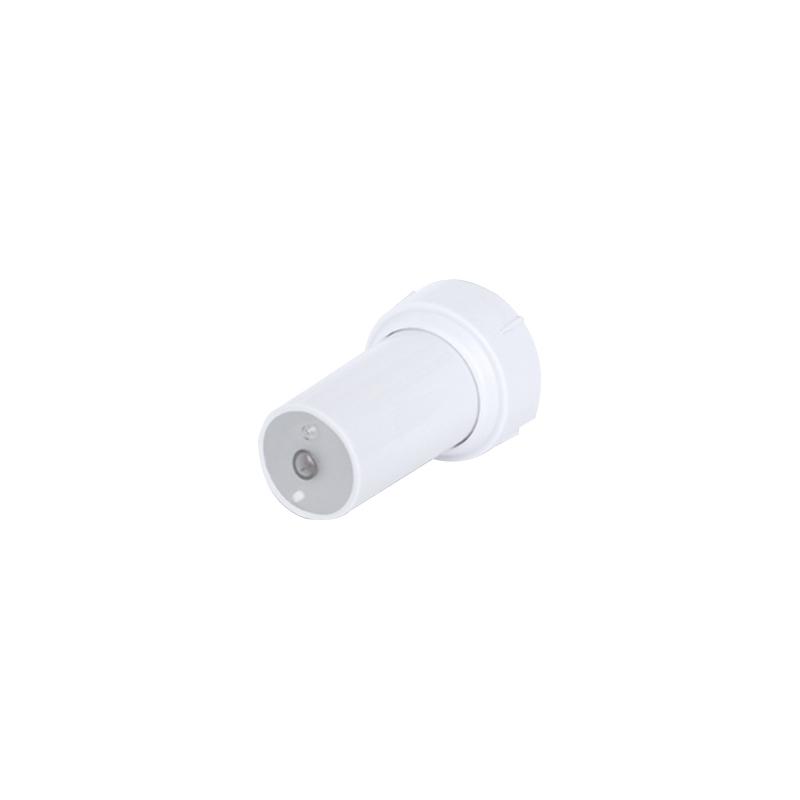

10. Replaceable Electrode, reducing instrument maintenance and use costs.
11. Full waterproof performance to ensure complete protection of the instrument in harsh environments.
Principle
The Pen pH Meter senses the alkalinity of liquids through a circular Glass pH Electrode, combined with automatic temperature compensation to ensure accurate pH Measured values over the full scale. The meter features automatic endpoint locking technology to retain stable readings and supports 1 to 3 point button calibrating to automatically identify USA or NIST standard buffers.
Applications
Food industry, agriculture, printing and dyeing industry, printing industry, cosmetics industry, beauty industry
Standards
USA standards, NIST standards
Steps
1. Turn on and select Measurement mode.
2. Perform 1 to 3 point button calibrate to automatically identify buffer.
3. Immerse the Electrode in the liquid or semi-solid substance to be tested.
4. Wait for the reading to stabilize, and the automatic end point locking function retains the data.
5. Clean Electrode and shut down after use.
Notice
• Electrode cleaning before use to avoid contamination affecting Measurement accuracy.
• The specified USA or NIST standard buffer should be used when calibrating.
• Avoid use beyond the Permissible Ambient Temperature (0~ 60 ° C).
• Regularly check the battery level and replace it in time when the battery is low.
• Electrode is replaceable and can be replaced in time to reduce maintenance costs.
• The instrument has full waterproof performance, but it is still necessary to avoid long-term immersion in corrosive liquids.
