Overview

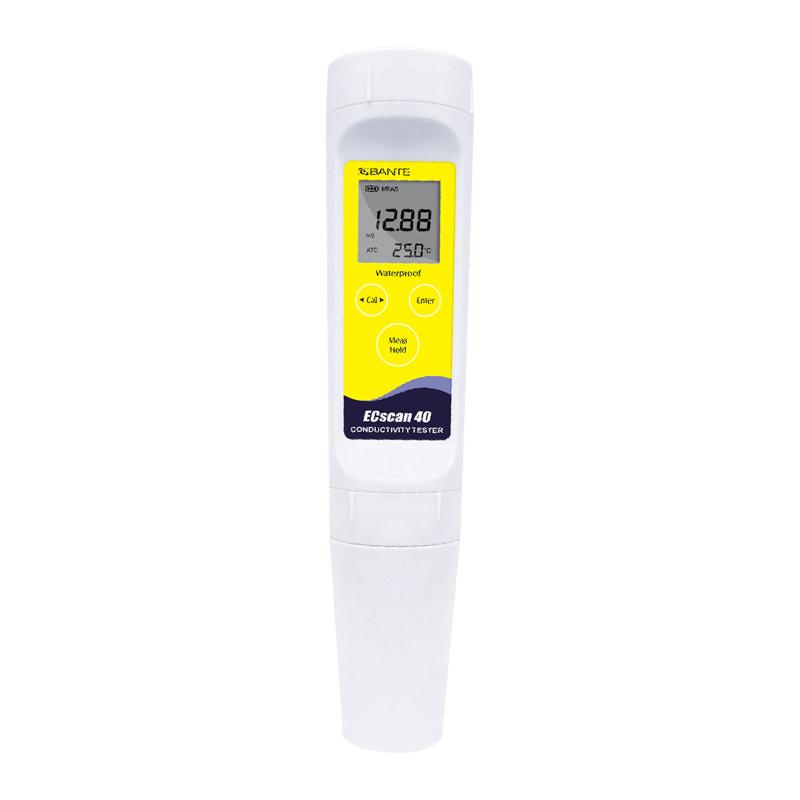

The ECscan40 Pen Conductivity Meter is a Multi-Parameter pen conductivity /TDS meter with TDS measurement capability, support for 3-point button calibrate and customizable TDS conversion factor. The meter is suitable for the measurement of liquid conductivity and total dissolved solids (TDS) values with a Measurement accuracy of 1% F.S.
Features
1. Multi-Parameter Pen Conductivity Meter, including TDS measurement function
2. Platinum Sensor for fast and stable measurement results
3. Adjustable TDS conversion factor to meet different water quality testing requirements
4.1 to 3 point button calibrated to automatically identify Conductivity detector standard
5. Automatic temperature compensation, providing accurate Measured value in the full range
6. Automatic end point locking, maintaining stable readings for easy browsing or recording
7. Low battery alarm icon, prompting battery residual power
8. Automatic power off, effectively saving battery energy consumption
9. Built-in system menu, can customize the number of calibrated points, TDS conversion factor, temperature unit, automatic or manual data locking, timing or manual shutdown and other 6 function parameters
10. One-click reset (Reset), automatically restore the meter to the factory default settings
11. Replaceable Electrode Reduces Instrument Maintenance and Use Costs
12. Full waterproof performance to ensure complete protection of the instrument in harsh environments
Principle
The meter measures the conductivity of the liquid through the Platinum Sensor and automatically performs temperature compensation to provide accurate values. The built-in system supports a custom TDS conversion factor to convert conductivity to TDS values, and has an automatic terminal lock function to stabilize the reading.
Applications
Research and education, water and wastewater treatment, environment monitoring, Eletroplating and printing industry, aquaculture and hydroponics, beverage industry and other industrial applications
Steps
1. Turn on the meter power
2. Select the number of calibrating points as needed and calibrate
3. Set TDS conversion factor, temperature unit and other parameters
4. Electrode immersion in the liquid to be tested
5. Wait for the reading to stabilize, and the meter automatically locks the end point.
6. Record or view measurement results
7. Clean Electrode and Power Off After Use
Notice
• Make sure Electrode is clean and free of contamination before use
• Conductivity detector standards specified should be used when calibrating
Avoid prolonged use in extreme temperature environments
• Regularly check the battery power and replace it in time
• Instrument with full waterproof performance, but still need to avoid strong Impact
• When replacing Electrode, please use the specified model to maintain accuracy
