Overview

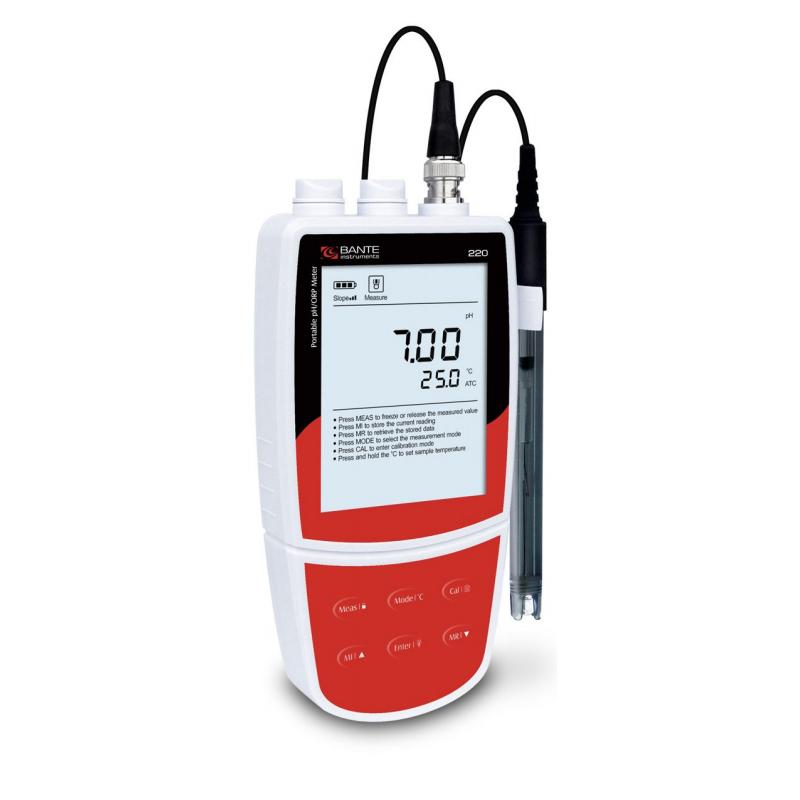

The Bante220-ORP is an economical Portable pH/ORP meter with 2 point button calibrating and automatic temperature compensation for outdoor pH/mV measurement of samples with a Measurement accuracy of 0.01 pH.
Features
1. Easy-to-use Portable pH Meter with large LCD screen.
2.2 point button to calibrate, automatically identify pH standard buffer.
3. Electrode slope display automatically prompts the user whether to replace pH Electrode.
4. Automatic temperature compensation to ensure High Accuracy measurement over full range.
5. Key data lock, keep the current Measured value for easy browsing or recording.
6. The settings menu can customize the temperature unit, time and date information.
7. Extended memory can store up to 50 sets of measurement data.
8. The built-in clock automatically marks the date and time of stored data to comply with GLP specifications.
9. USB Communication interface sends stored data to PC.
Principle
The instrument uses pH Electrode measurement of the pH or ORP value of the sample, uses automatic temperature compensation technology to correct the influence of temperature on the measurement, and ensures accuracy through the 2-point Calibration method. Data can be stored and transmitted through the USB interface.
Applications
Water treatment and wastewater discharge, environment monitoring and ecological research, aquaculture and hydroponics, Food processing, education and industrial applications
Steps
1. Turn on the meter power.
2. Adjustment using the 2 point button to automatically identify the standard buffer for calibrating.
3. Electrode immersion in the sample for measurement.
4. Optional manual data locking to preserve the current value.
5. Transfer and store data to the computer through the USB interface.
Notice
• Periodically calibrated to ensure Measurement accuracy.
• Pay attention to the Electrode slope display and replace the aging Electrode in time.
• Use the specified standard buffer to calibrate.
• Avoid instrument use in extreme temperature environments.
• Replace the battery in time when it is low to ensure normal operation.
