Overview

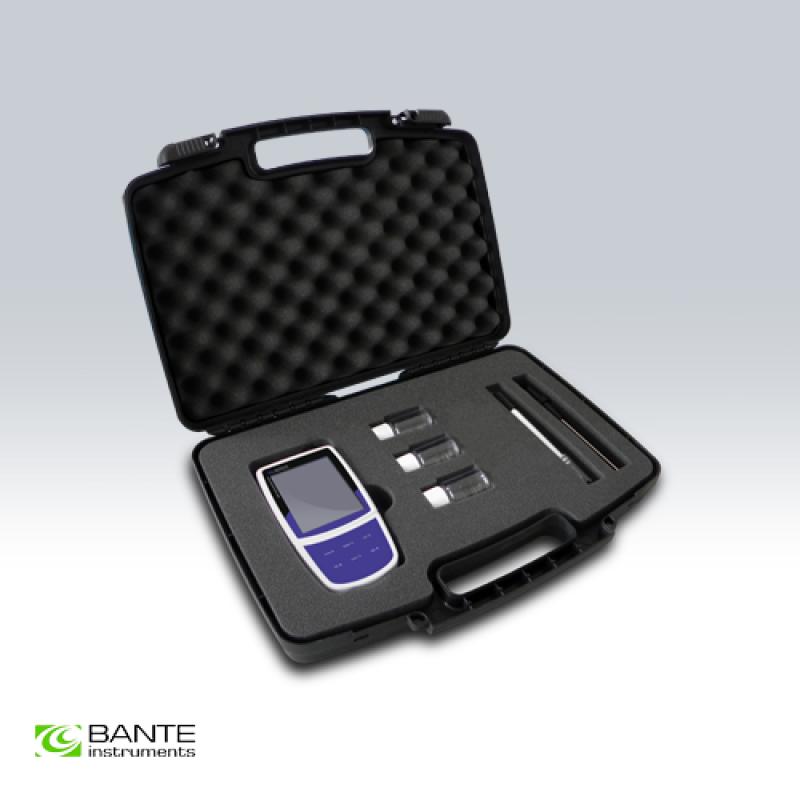

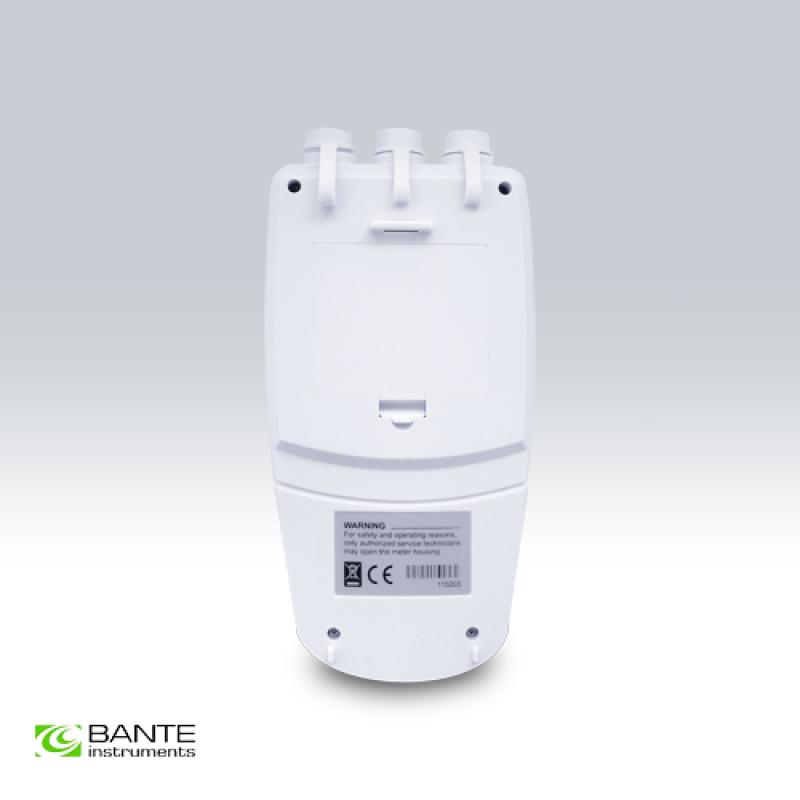

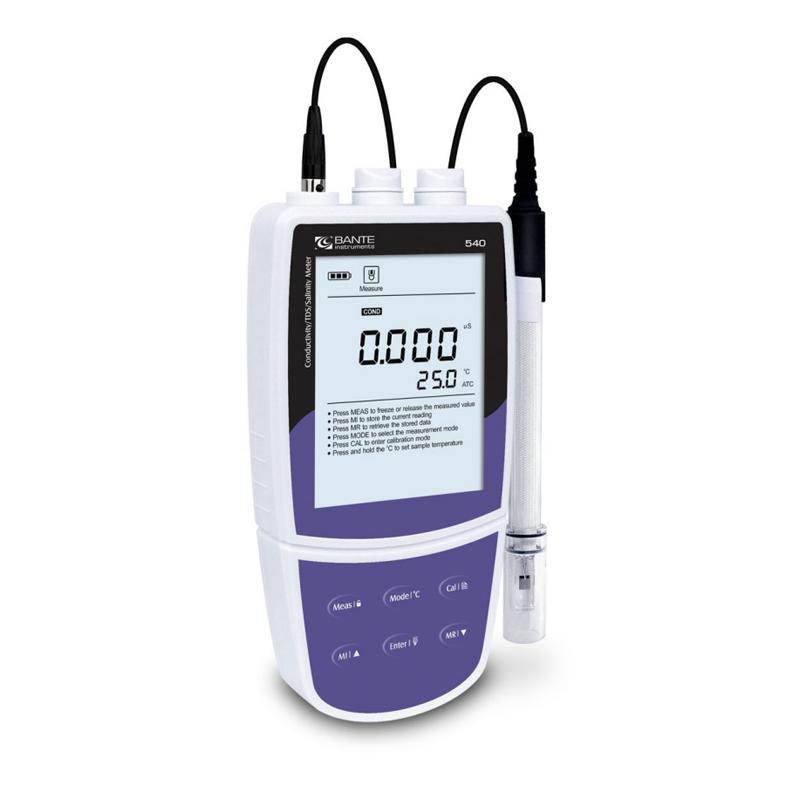

The Bante531-DH Portable Conductivity Meter is a High Accuracy Portable conductivity/Salinometer with seawater and practical salinity measurement capabilities. The meter supports 1 to 5 point button calibrating, and the built-in system menu can customize 10 functional parameters. It is suitable for outdoor measurement of liquid conductivity and salinity. Measurement accuracy is 0.5% F.S.
Features
1. High Accuracy Portable Conductivity Meter with Large Screen Backlit LCD
2.1 to 5 point button calibrated Conductivity detector standard
3. Optional Electrode constant (K = 0.1/1/10), standardized temperature (20 or 25 ° C), linear and pure water temperature compensation, seawater and practical salinity Measurement mode
4. Automatic temperature compensation to ensure accurate measurement over the full range
5. Automatic end point lock, keep stable Measured value for easy browsing or recording
6. Electrode diagnostics, check Electrode slope value (K)
7. The system menu can customize the number of calibrated points, Stability standard, Data lock mode, automatic shutdown and other 10 function parameters
8. One-click reset (Reset) automatically restores the meter to the factory default settings
9. Extended memory can store up to 500 sets of measurement data
10. Built-in clock automatically marks the date and time of stored data to comply with GLP specifications
11. USB Communication interface to send stored data to PC
12. Multi-mode power supply solution (battery, Power Adapter, USB port of computer) to ensure smooth application of the instrument
Principle
The Conductivity Meter uses the Conductivity detector Electrode measurement liquid conductivity, and the optional Electrode constant (K = 0.1/1/10) to adapt to different Measurement ranges. The meter uses automatic temperature compensation technology to ensure accurate measurement over the full range, and supports linear or pure water temperature compensation mode. At the same time, it has an automatic end lock function, which retains a stable Measured value, and supports seawater and practical salinity Measurement modes.
Applications
Water quality monitoring, geological and ecological research, chilled down tower and boiler water, printing industry, swimming pool and spa, agriculture and aquaculture, education and laboratory applications
Steps
1. Power on and select Measurement mode (conductivity or salinity)
2. Set Electrode constant as needed (K = 0.1/1/10)
3. Perform 1 to 5 point calibrate, automatically identify Conductivity detector standard solution
4. Set temperature compensation parameters (manual/automatic, linear or pure water mode)
5. Electrode immersion in the test liquid for measurement
6. After the measurement is completed, the data is automatically locked or manually locked
7. Data can be transferred and stored to the computer through the USB interface
Notice
• Make sure Electrode is clean and intact before use
• Conductivity detector standards specified (10 µS/cm, 84 µS/cm, 1413 µS/cm, 12.88mS/cm, 111.8mS/cm) should be used when calibrating
• Pay attention to temperature compensation settings during measurement to ensure accuracy
• Please remove the battery when not in use for a long time
• Avoid Violent Impact or Contamination of Electrodes
• Ensure a stable USB connection during data transmission
• Electrode status is checked regularly and calibrated if necessary
