Overview

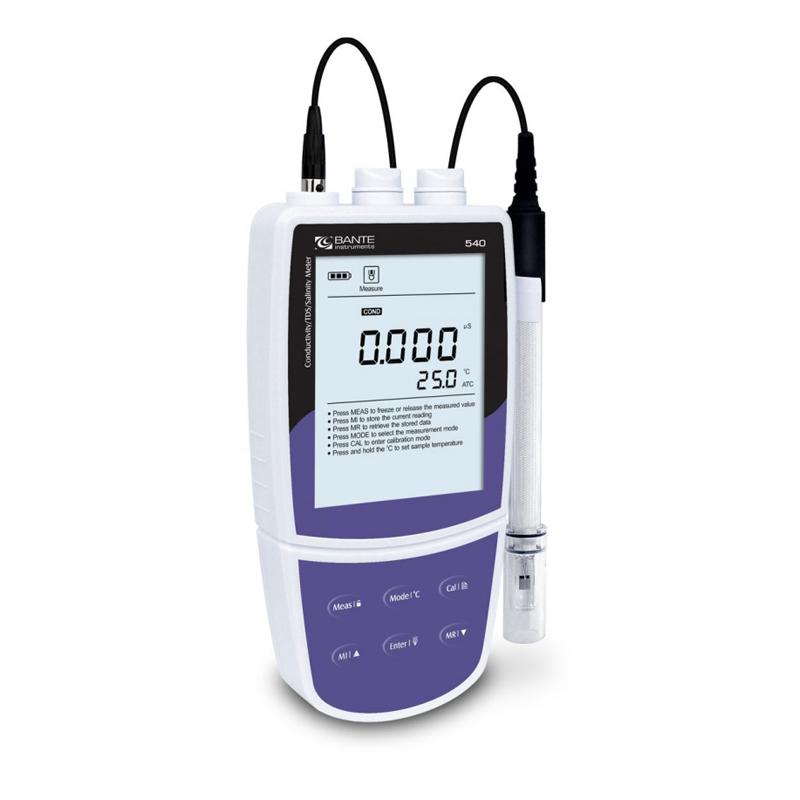

The Bante540-DH Portable Conductivity Meter is a High Accuracy Portable instrument with four measurement functions of conductivity, TDS, salinity and resistivity. The instrument supports 1 to 5 point button calibrate, built-in system menu to customize 11 function parameters, Measurement accuracy of 0.5% F.S., equipped with a large screen backlit LCD display.
Features
1. High Accuracy Portable Design with Large Screen Backlit LCD
2.1 to 5 point button calibrated Conductivity detector standard
3. Optional Electrode constant (K = 0.1/1/10), TDS factor, normalized temperature (20 or 25 ° C), linear and pure water temperature compensation, seawater and practical salinity Measurement mode
4. Automatic temperature compensation ensures accurate measurement of full scale
5. Automatic end point locking function, retain stable Measured value
6. Electrode diagnostics, check Electrode slope value (K)
7. The system menu can customize 11 function parameters such as the number of calibrated points, Stability standard, data locking mode, and automatic shutdown
8. One-click reset function automatically restores the meter to the factory default settings
9. Extended memory can store up to 500 sets of measurement data
10. Built-in clock automatically marks the date and time of stored data to comply with GLP specifications
11. USB Communication interface to send stored data to PC
12. Multi-mode power supply solution (battery, Power Adapter, computer USB port) to ensure smooth application
Principle
Conductivity detector Electrode measurement of solution conductivity and automatic temperature compensation to ensure accurate measurement over full scale. The system automatically calculates and displays TDS, salinity and resistivity values based on the set Electrode constant, TDS factor and temperature compensation mode. Built-in automatic endpoint locking retains stable Measured values for easy browsing or recording.
Applications
Water quality monitoring, geological and ecological research, chilled down tower and boiler water, printing industry, swimming pool and spa, agriculture and aquaculture, education and laboratory applications
Steps
1. Power on and select Measurement mode
2. Set Electrode constant, TDS factor, temperature compensation mode and other parameters as needed
3. Perform 1 to 5 point calibrating, the instrument automatically recognizes Conductivity detector standard solution
4. Electrode immersion in the solution to be tested
5. Measured value stable, the instrument automatically lock the end
6. Read and record measurement data
7. Data can be exported and stored through the USB interface
Notice
• Please read the instructions carefully before use
• Conductivity detector standards specified should be used when calibrating
• Electrode should be cleaned and stored properly after use
• Avoid Electrode use in extreme temperature environments
• Electrode status is checked regularly and calibrated if necessary
• Please replace the battery in time when the battery is low
• Ensure a stable USB connection when exporting data
