Overview

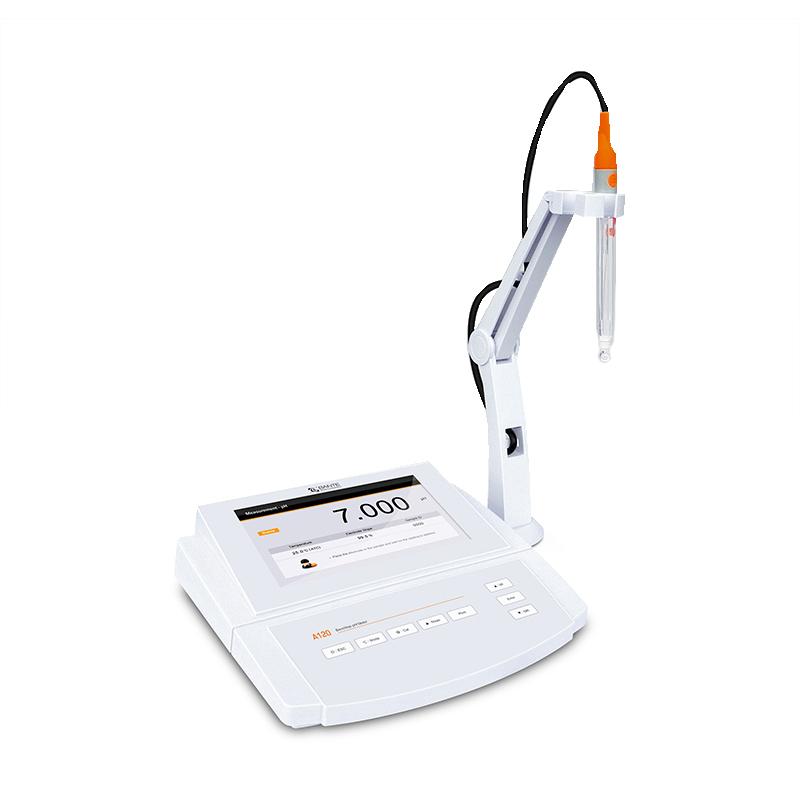

The BANTE A120-UK is a professional laboratory pH Meter with a 7-inch TFT display that supports 1000 sets of data storage. The system menu contains 17 optional parameters. Measurement accuracy reaches 0.002pH. It offers pH and ORP Measurement modes with automatic temperature compensation, Electrode diagnostics, and more for precise laboratory analysis.
Features
1.7-Inch TFT display, clear and intuitive display
2. Support pH buffer standard (USA/NIST/DIN) or 5 point custom calibrated
3. Electrode diagnostics, display Electrode slope and offset
4. Automatic temperature compensation to ensure accurate measurement of full scale
5. Solution temperature coefficient (STC), compensates for pure water measurement and converts reading to 25 ° C
6. Alarm limit function, automatic warning Measured value exceeds limit
7. Support 1 point offset calibrated and relative/absolute mV mode in ORP mode
8. Calibrate expiration reminder, regularly prompt the user to calibrate
9. Automatic end point lock, retain stable Measured value
10. Interval reading mode, regularly send data to external devices
11. Password protection to prevent unauthorized operation
12. Extended memory can store 1000 sets of data
13. USB Communication interface, easy to connect peripherals
14. One-click reset function to restore factory settings
Principle
The pH Meter detects the concentration of hydrogen ions in the solution by Electrode and converts it into a pH value display. In pH mode, automatic temperature compensation technology is used to ensure measurement accuracy at different temperatures; ORP mode provides relative or absolute mV readings by measuring Oxidation-reduction potential. The system has built-in automatic diagnostic function to monitor Electrode status and optimize Measurement accuracy through calibrate program.
Applications
Laboratories, scientific research institutions, water quality monitoring, environment testing, industrial process control, educational institutions
Standards
USA standard, NIST standard, DIN standard
Steps
1. Connect the power supply and turn it on, and check the status of the equipment.
2. Select pH or ORP Measurement mode and set parameters as needed
3. Perform calibrate: select buffer standard or custom calibrate point, perform 1 to 5 point calibrate
4. Immerse Electrode in the solution to be tested to ensure adequate contact
5. Wait for the reading to stabilize, and the system can automatically lock the destination
6. Record or store data, support manual or interval mode
7. Electrode cleaning after use and calibrating reminder check regularly
Notice
• Electrode in good condition before use to avoid damage
• Regularly calibrate the meter and follow the calibrated reminder settings
• Keep the solution temperature stable during measurement for automatic compensation
Avoid use in extreme temperatures or contaminated environments
• Memory capacity when storing data, timely export
• Do not forcibly adjust the settings during operation to prevent misoperation
• Clean and maintain Electrode in time after use to prolong service life
