Overview

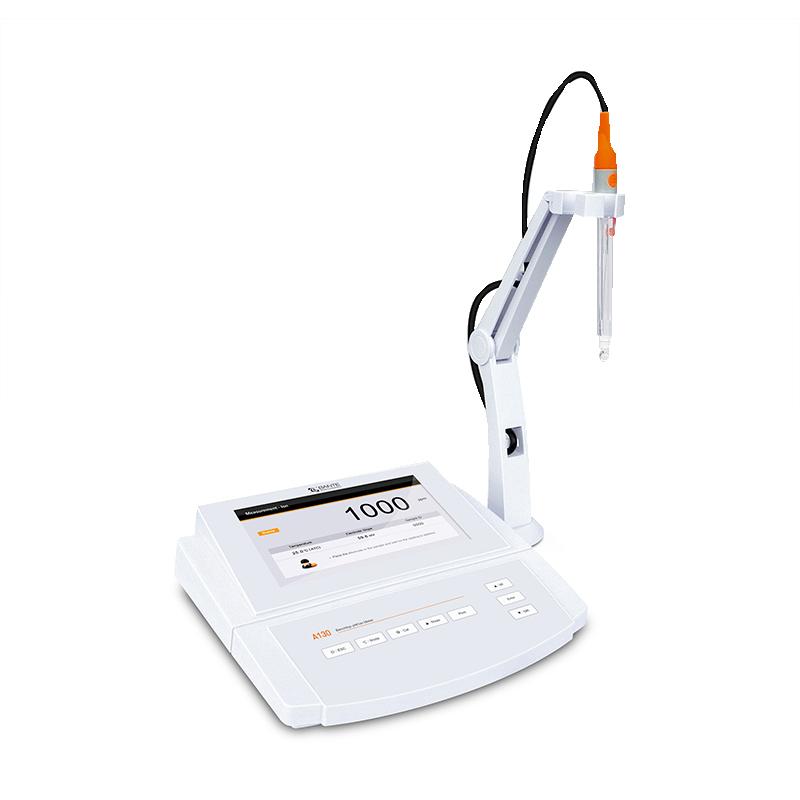

The A130-UK is a professional laboratory pH/ion meter from the BANTE brand, equipped with a 7-inch TFT display, supporting pH, ORP, Ion and Water Hardness Measurement modes. The instrument can be selected from 5 ion Measuring methods, has a data storage capacity of 1000 sets, and the system menu contains 20 optional parameters. The pH Measurement accuracy is 0.002pH, suitable for High Accuracy Laboratory Analysis.
Features
1. Professional laboratory pH ion meter with 7-inch TFT display
2. Optional pH buffer standard (USA/NIST/DIN) or 5 point custom calibrated
3. Electrode diagnostics with Electrode slope and offset display
4. Automatic temperature compensation to ensure accurate measurement over the full range
5. Solution temperature coefficient (STC), compensates for pure water measurement and converts reading to 25 ° C
6. Alarm limit, automatic warning Measured value exceeds the set range
7. ORP mode supports 1 point offset calibrated and relative and absolute mV mode
8. Ion mode can be selected from direct reading method, known addition method, known reduction method, sample addition method and sample reduction method
9. Water Hardness Mode supports 2 to 5 point button calibrating and multiple unit selection
10. Extended memory can store up to 1000 sets of data, equipped with USB Communication interface
Principle
The instrument detects the pH value, Ion concentration or ORP value in the solution by Electrode, and the automatic temperature compensation function ensures the measurement accuracy. Buffer standard calibrate is used in pH mode, ion-selective Electrode is automatically recognized in ion mode and supports a variety of Measuring methods. Water Hardness mode enables accurate measurement through concentration calibrate. All measurement data is displayed on a 7-inch TFT display after processing and can be stored or transferred to external devices.
Applications
Laboratory, water quality testing, scientific research institutions, industrial analysis, environment monitoring
Standards
USA standard, NIST standard, DIN standard
Steps
1. Connect the Power Adapter and turn it on
2. Select Measurement mode (pH/ORP/Ion/Water Hardness)
3. According to the selected mode to calibrate (1-5 points calibrated)
4. Electrode immersion in the solution to be tested
5. Record the Measured value after waiting for the reading to stabilize
6. Data can be transferred to the computer through the USB interface
Notice
• Please read the instructions carefully before use
Electrode calibrated regularly to ensure measurement accuracy
• Avoid Electrode Exposure to Air for a Long Time
• Clean Electrode in time after use
Pay attention to calibrating the expiration reminder function
• Keep Electrode in Proper Storage Liquid during Storage
• Avoid strong vibration or impact on the instrument
