Overview

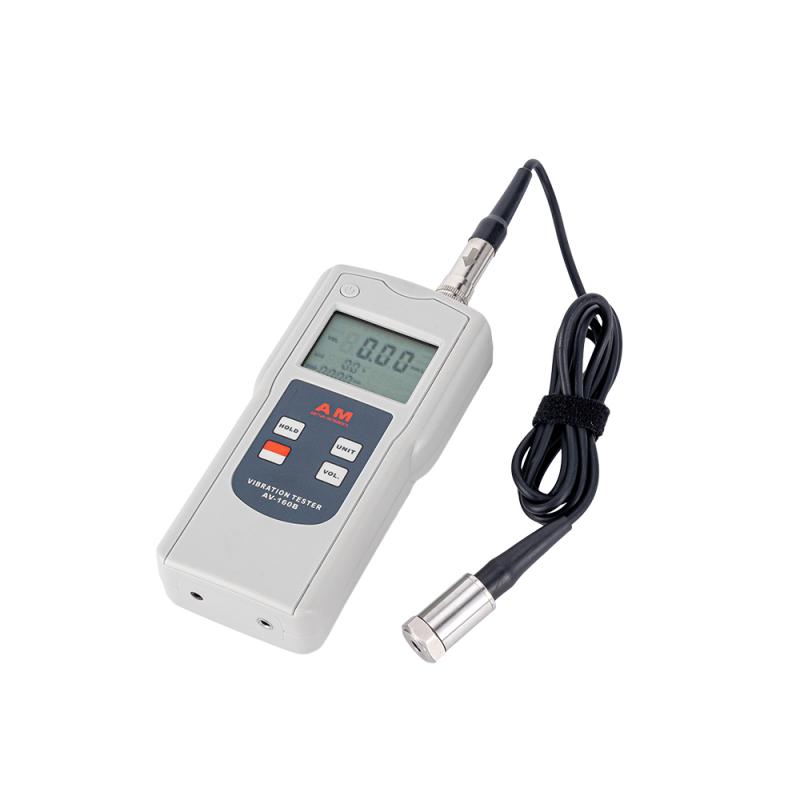

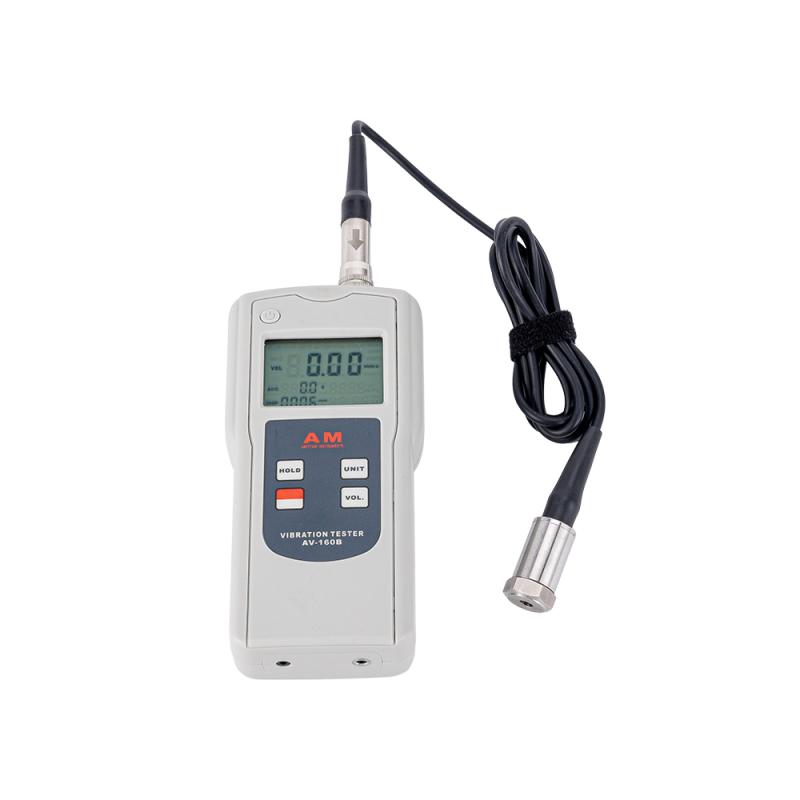

The AMITTARI AV-160B Vibration Meter is a Portable Digital Vibration Meter that simultaneously displays three Measurement parameters: Displacement, Speed and Acceleration. It is designed for on-site measurement of a wide range of mechanical vibrations and uses a high-performance accelerometer for accurate and repeatability measurements, providing data support for quality control, running time and equipment maintenance.
Features
1. Measurement parameters of Displacement, Speed and Acceleration can be displayed simultaneously
Complies with international standard ISO2954 for periodic motion measurement to detect mechanical imBalances and deviations
3. Designed for on-site measurement of various mechanical vibrations, providing data for quality control, running time and equipment maintenance
4. Select high-performance accelerometers for accurate and repeatability measurements
5. Using Piezoelectric Acceleration Sensor to Convert Vibration Signal
6. With bearing condition measurement function
7. LCD display, light weight, simple operation
8. Frequency range, Acceleration mode Frequency up to 10-10KHz
9. With AC signal output for easy auscultation and recording
10. Optional headphones can be used as a stethoscope
11. Utilize optional RS-232c software and cables to communicate with PC computers for printing and statistical functions
Principle
The AV-160B vibrator converts mechanical vibration into electrical signal through piezoelectric Acceleration Sensor, and displays three parameters of displacement, speed and Acceleration at the same time after processing, so as to realize periodic motion measurement and mechanical imBalance detection.
Applications
Mechanical vibration measurement, equipment maintenance, quality control, moving machinery imBalance detection, bearing condition monitoring
Steps
Connect Piezoelectric Sensor to AV-160B Vibrator and swirl/spin until locked

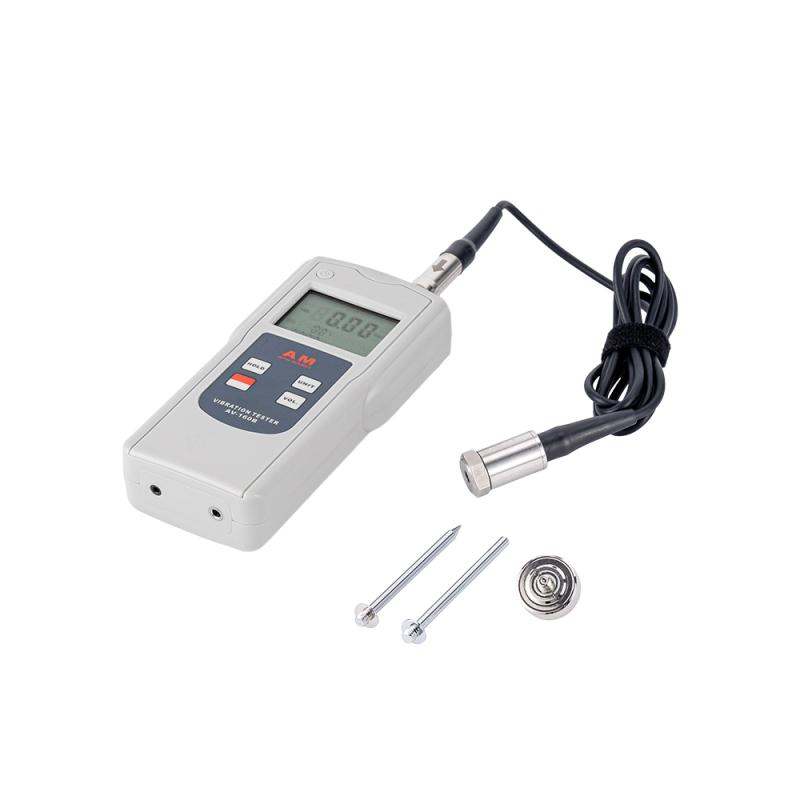

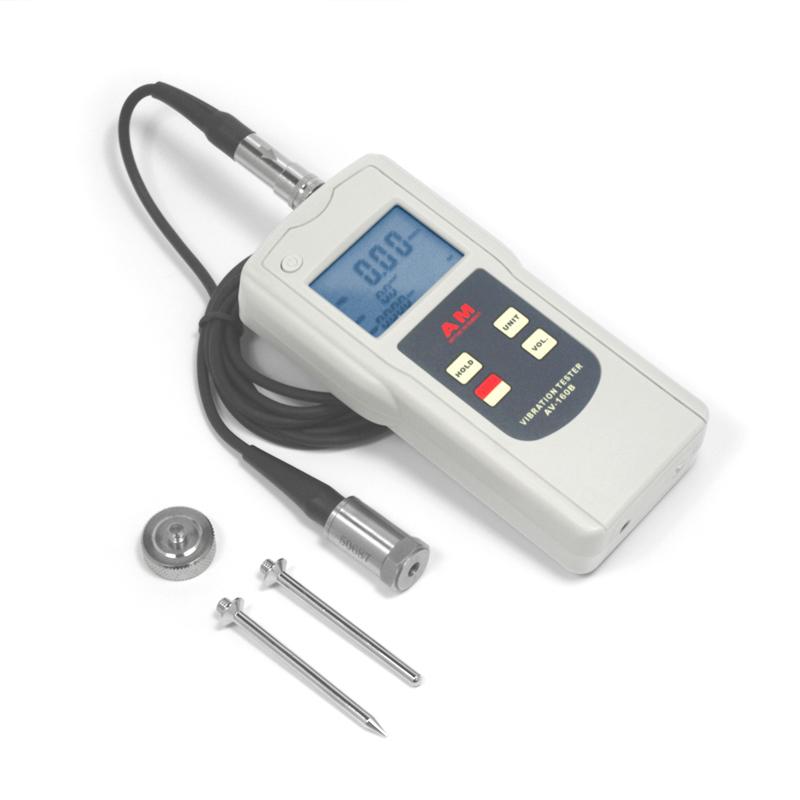

2. Use the magnetic suction seat to fix the piezoelectric Sensor on the point to be measured to ensure that the fixed surface is flat and clean, if possible, use screws to install directly
3. Tap the power button to turn on the power supply, and display three Measurement parameters at the same time
Notice
* Ensure Sensor Fixing Surface is Flat and Clean
* If possible, install the Sensor directly with screws
* Measurement speed (RMS) values should be in three orthogonal directions of the bearing housing
* Operating temperature range is 0~ 50 ℃
* relative humidity should be less than 90% RH
