Overview

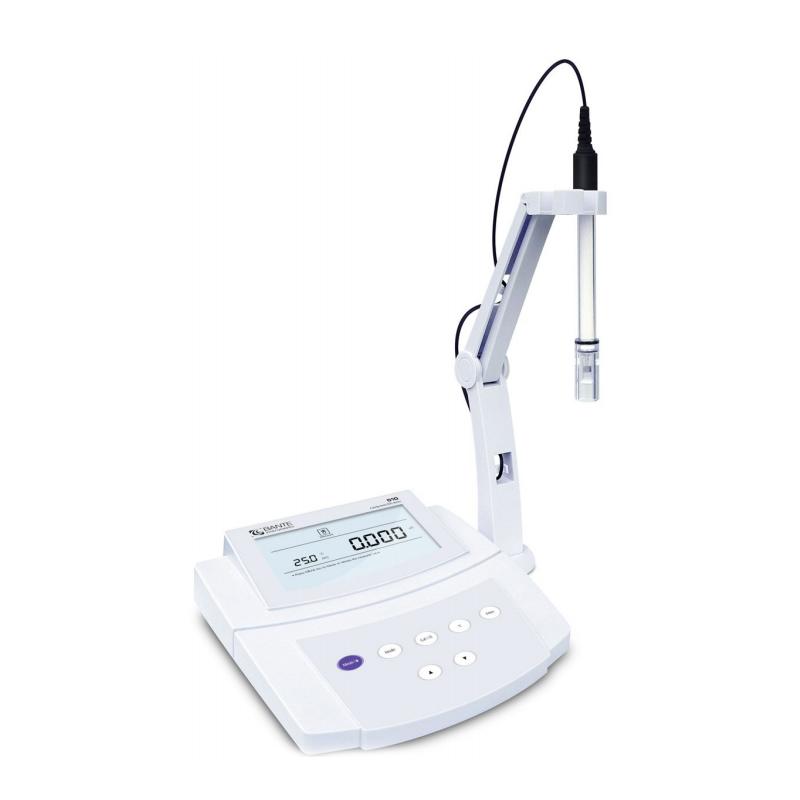

The Bante510-S is a High Accuracy laboratory conductivity /TDS meter for the measurement of liquid conductivity and total dissolved solids (TDS) values with a 1% F.S. Measurement accuracy. The meter features a large LCD backlit display, supports 3-point button calibrate and automatic end point locking.
Features
1. High Accuracy Laboratory Conductivity Meter with Large LCD Backlit Display
2.1 to 3 point button calibrated to automatically identify Conductivity detector standard
3. Optional Electrode constant (K = 0.1/1/10), suitable for matching different types of Conductivity detector Electrode
4. Optional temperature compensation factor and TDS conversion factor
5. Automatic temperature compensation to ensure accurate measurement over full scale
6. Automatic endpoint lock, keep stable Measured value for easy browsing or recording
7. Manual temperature calibrating, improve instrument temperature Measurement accuracy
8. Built-in system menu, can customize the number of calibrated points, temperature units, automatic or manual data locking, timing or manual shutdown and other 7 function parameters
9. One-click reset (Reset), automatically restore the meter to the factory default settings
Principle
Conductivity detector Electrode measurement of liquid conductivity and automatic temperature compensation to ensure measurement accuracy. The built-in system calculates total dissolved solids (TDS) values and supports automatic end point locking for stable measurement results.
Applications
Water and wastewater treatment, scientific research and education, environment monitoring and agricultural breeding, printing and chemical industry, fishery breeding and hydroponic planting, beverage industry and other industrial applications
Steps
1. Connect Conductivity detector Electrode and temperature probe
2. Select Electrode Constant (K = 0.1/1/10)
3. Perform 1 to 3 point calibrate using specified Conductivity detector standard
4. Set the temperature compensation factor and TDS conversion factor
5. Electrode immersion in the liquid to be tested
6. Instrument automatic measurement and temperature compensation
7. Measured value auto lock or manual lock
8. Clean Electrode and shut down after use
Notice
• Conductivity detector standards specified should be used when calibrating
• Make sure the Electrode Constant setting matches the Electrode used
• Regularly calibrate temperature to maintain Measurement accuracy
• Avoid Electrode Exposure to Air for a Long Time
• Clean Electrode in time after use to prevent contamination
• Pay attention to the automatic shutdown settings of the meter to avoid data loss
• Use one-click reset function to restore factory settings
