Overview

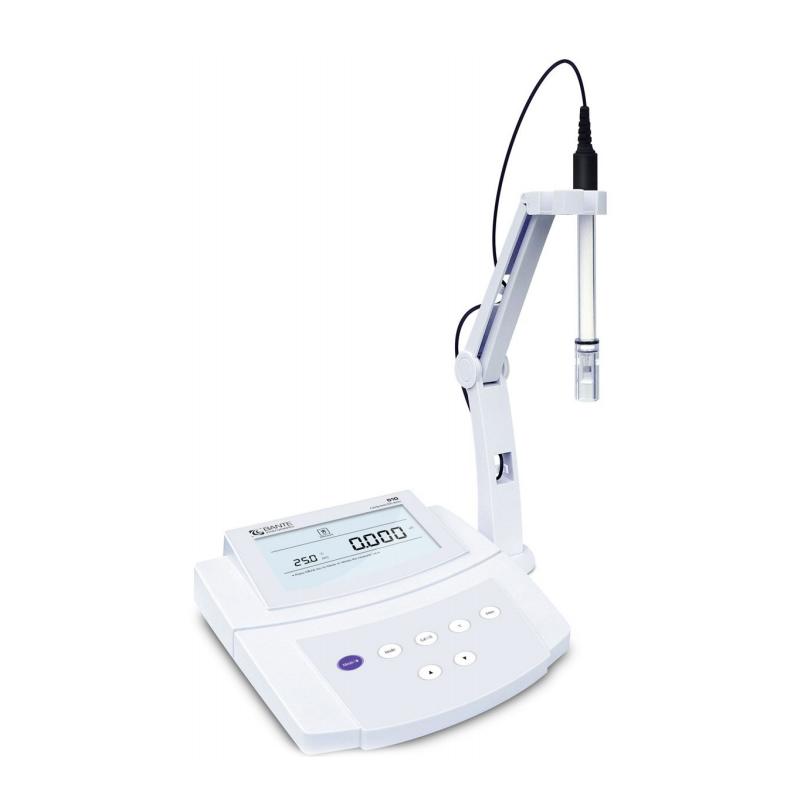

The Bante510-DL is a High Accuracy laboratory conductivity /TDS meter for the measurement of liquid conductivity and total dissolved solids (TDS) values with a 1% F.S. Measurement accuracy. The instrument features a large LCD backlit display, supports 3 point button calibrate and automatic end point locking.
Features
1. High Accuracy Laboratory Conductivity Meter with Large LCD Backlit Display
2.1 to 3 point button calibrated to automatically identify Conductivity detector standard
3. Optional Electrode constant (K = 0.1/1/10), suitable for matching different types of Conductivity detector Electrode
4. Optional temperature compensation factor and TDS conversion factor
5. Automatic temperature compensation to ensure accurate measurement over full scale
6. Automatic endpoint lock, keep stable Measured value for easy browsing or recording
7. Manual temperature calibrating, improve instrument temperature Measurement accuracy
8. Built-in system menu, can customize the number of calibrated points, temperature units, automatic or manual data locking, timing or manual shutdown and other 7 function parameters
9. One-click reset (Reset), automatically restore the meter to the factory default settings
Principle
Conductivity detector Electrode measurement of liquid conductivity and calculation of total dissolved solids value according to the set TDS conversion factor. Automatic temperature compensation technology to ensure measurement accuracy, support manual or automatic temperature calibrating.
Applications
Water and wastewater treatment, scientific research and education, environment monitoring and agricultural breeding, printing and chemical industry, fishery breeding and hydroponic planting, beverage industry and other industrial applications
Steps
1. Connect Conductivity detector Electrode and temperature probe
2. Select Electrode Constant and Measurement mode
3. Perform 1-3 point calibrate
4. Set temperature compensation parameters
5. Start measurement and read data
6. Use the data locking function to record stable values
7. Shut down after measurement
Notice
• Measurement accuracy should be calibrated before use
• Select the appropriate Electrode Constant Matching Measurement range
• Regularly check Electrode status and keep it clean
• Avoid use in extreme temperature environments
• Use the Power Adapter of the specified specification
• Please shut down in time when not in use for a long time
