Overview

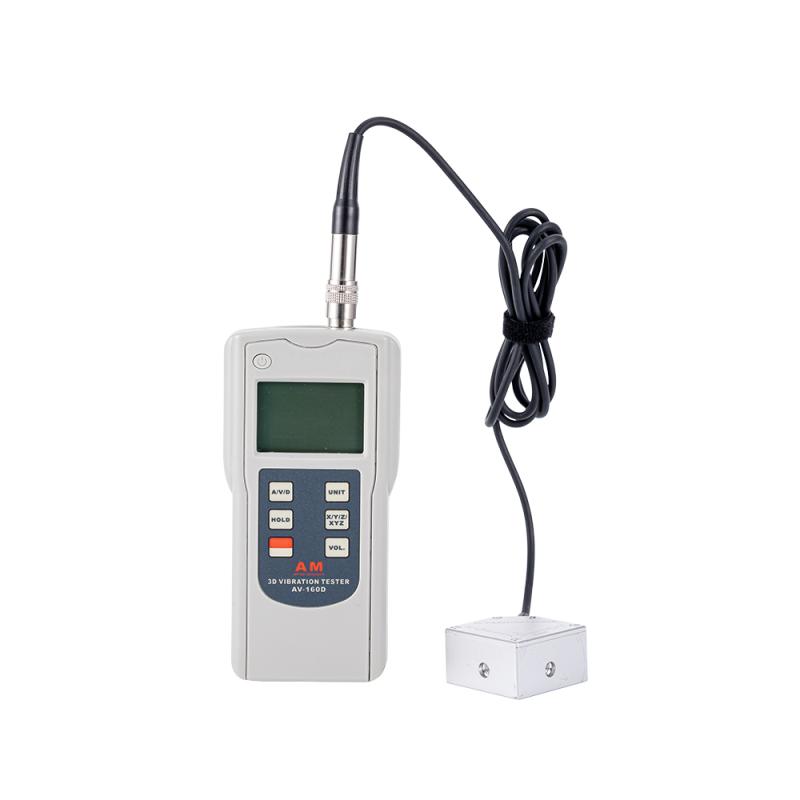

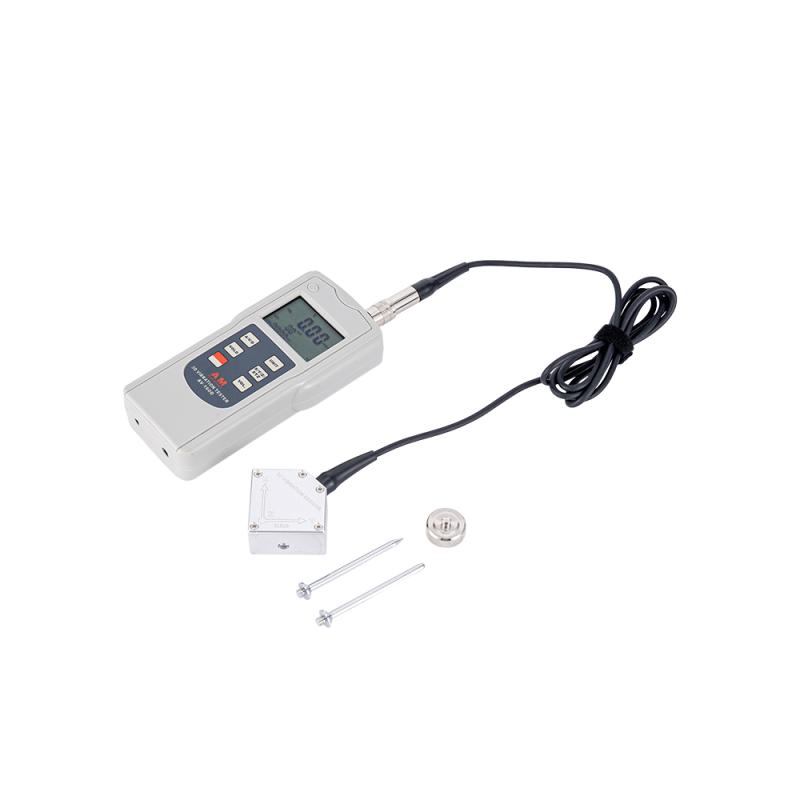

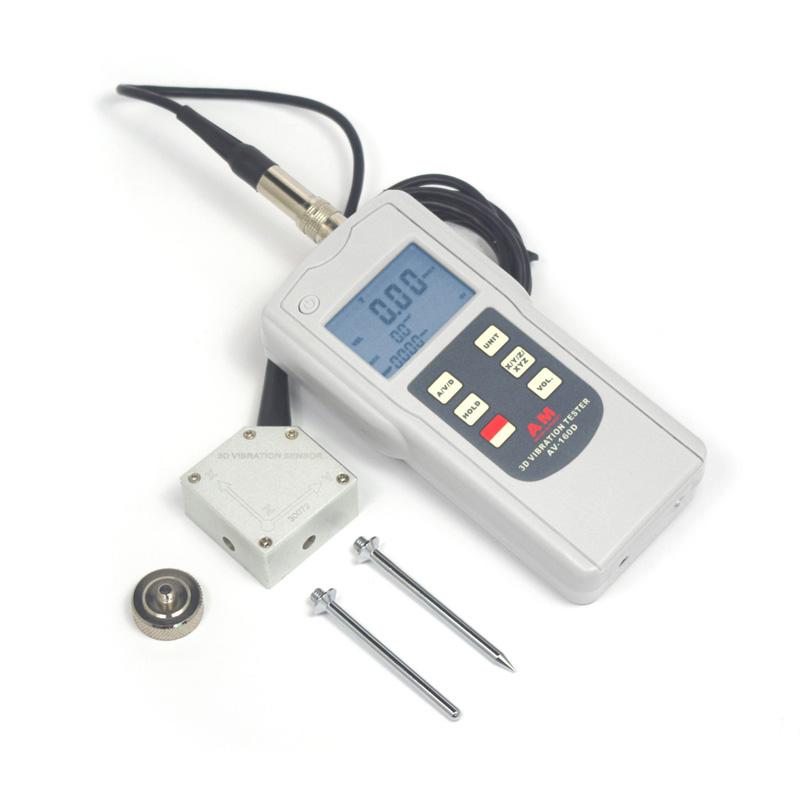

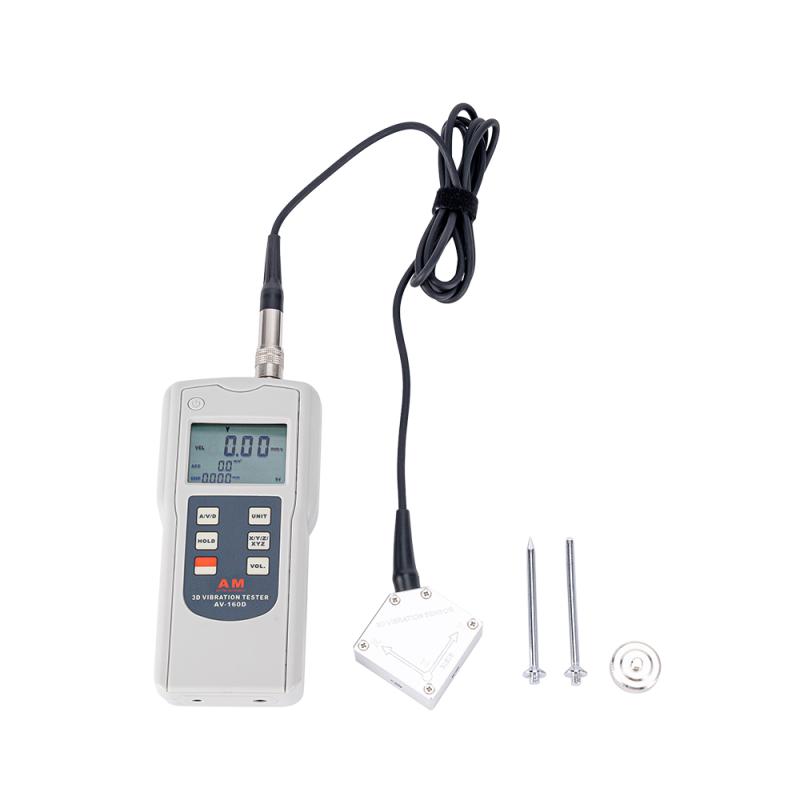

AMITTARI 3D Triaxial Vibrator AV-160D is a portable digital 3D triaxial vibrator, using a three-axis piezoelectric vibration Sensor, which can simultaneously measure the vibration parameters of X, Y, Z three axes or single axes. The instrument has bearing condition measurement function, conforms to the international standard ISO2954, and is used to test various mechanical vibrations. Measurement accuracy is +/- 5% + 2 words.
Features
1. Automatic shutdown function
2. light weight, simple operation, easy to use
3. Frequency range up to 10-10KHz
4. With AC signal output for auscultation and recording
5. With bearing condition measurement function
6. In line with international standards ISO2954 and GB13823.3
7. Designed for on-site measurement of various mechanical vibrations
8. Select three high-performance piezoelectric accelerometers to achieve three-dimensional vibration measurement
9. Liquid crystal LCD display, which can display multiple vibration parameters simultaneously
10. Optional headphones can be used as a stethoscope
11. Optional RS232 software and cable to communicate with PC computer
Principle
The instrument adopts three-dimensional piezoelectric Acceleration meter, which integrates three piezoelectric Sensors of X, Y and Z axes into one Sensor, and converts mechanical vibration into electrical signal for measurement and analysis through piezoelectric effect.
Applications
Mechanical vibration testing, bearing condition testing, equipment maintenance, quality control, sports machinery imBalance testing
Standards
ISO2954、GB13823.3
Steps
Step 1 Install the battery
2. Select Measurement mode (three axis or single axis)
3. Measuring location of Sensors
4. Read the vibration parameters on the LCD display
5. You can choose to connect headphones for auscultation or connect to PC for communication.
6. Manual shutdown or wait 5 minutes for automatic shutdown
Notice
* Operating temperature range is 0~ 50 ℃
* relative humidity should be less than 90% RH
* Measurement speed (RMS) values should be in three orthogonal directions of the bearing housing
Use the appropriate vibration level to refer to the machine vibration classification selection table
Regularly check the battery level
Avoid Strong Impact on Sensors
