Overview

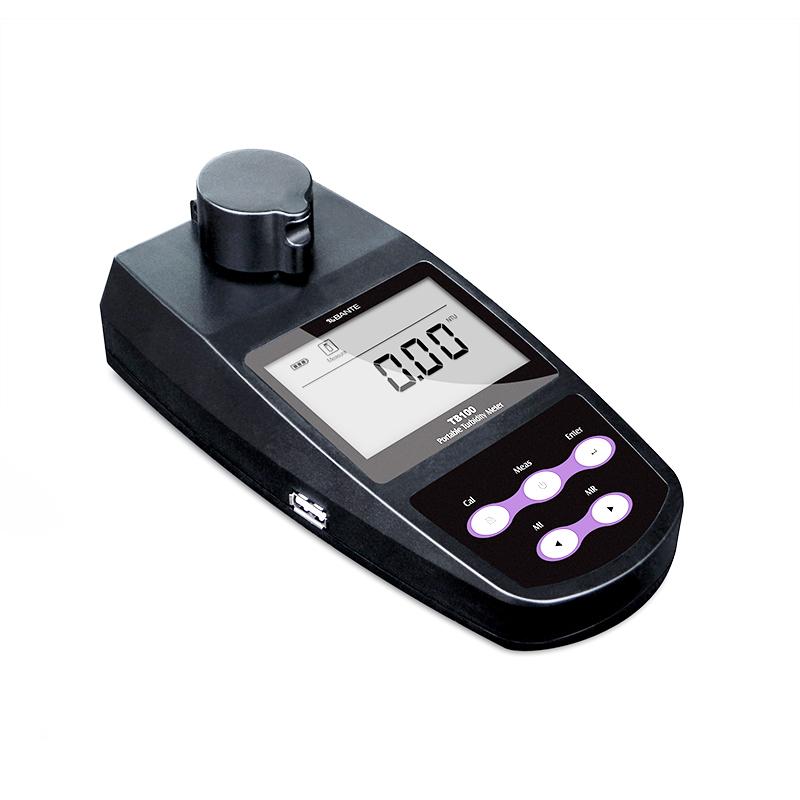

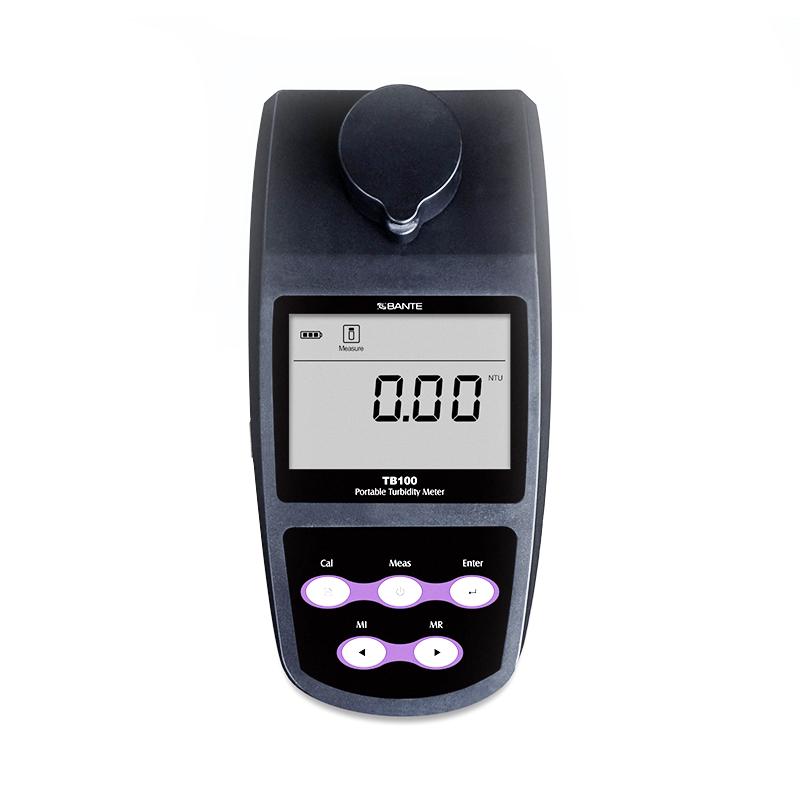

The TB100 Portable turbidity measuring instrument is a high-performance Portable turbidity measuring instrument with 2 to 5 point calibrating and optional 4 Measurement units for process control and outdoor applications. The instrument features Single and Continuous Measurement modes for accurate measurement in different scenarios.

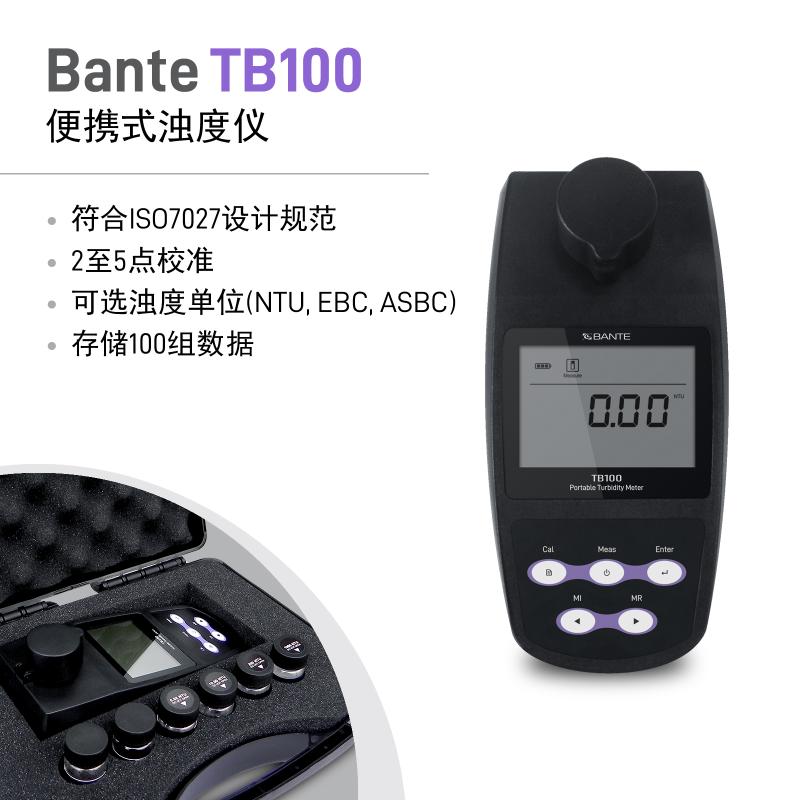

Features
1. Easy-to-use Portable Turbidity Meter with standard carrying case.
2.2 to 5 point calibrated, using formazid standard solution.
3. Optional 4 turbidity units, including NTU, FNU, EBC and ASBC.
4. Single Measurement mode automatically identifies stable readings.
5. Continuous Measurement mode can be used for indexing or matching color bottles.
6. Automatic power off, effectively saving battery energy consumption.
7. Built-in system menu, can customize the number of calibrated points, date and time, Display resolution and other 7 function parameters.
8. One-click reset, automatically restore the meter to the factory default settings.
9. Extended memory can store up to 100 sets of measurement data.

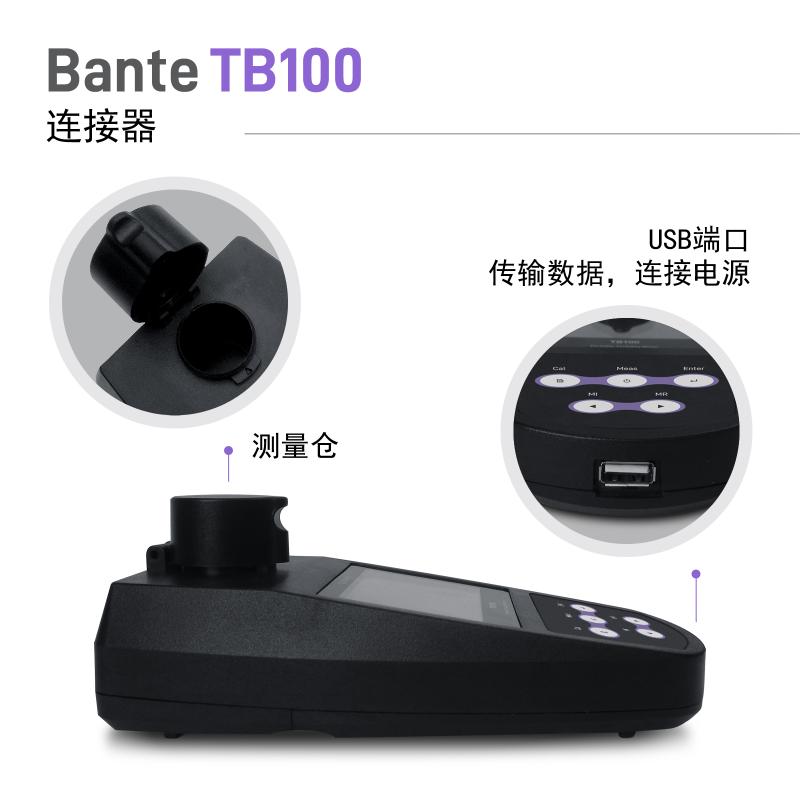

10. USB Communication interface sends stored data to PC.
11. Multi-mode power supply solution (Power Adapter, computer USB port) guarantees the smooth application of the instrument.
Principle
The TB100 Portable Turbidity Meter uses the ISO 7027 nephelometric method (90 °) Measuring method. The infrared Light Emitting Diode is used as the Illuminant, and the silicon photoelectric receiver receives the scattered light to calculate the turbidity value. The method is based on the principle of 90 degree scattering to ensure measurement accuracy and Reliability.
Applications
Process control, outdoor applications
Steps
1. Turn on the meter power.
2. Select Single or Continuous Measurement mode.
3. Use formazid standard solution for 2 to 5 point calibrating.

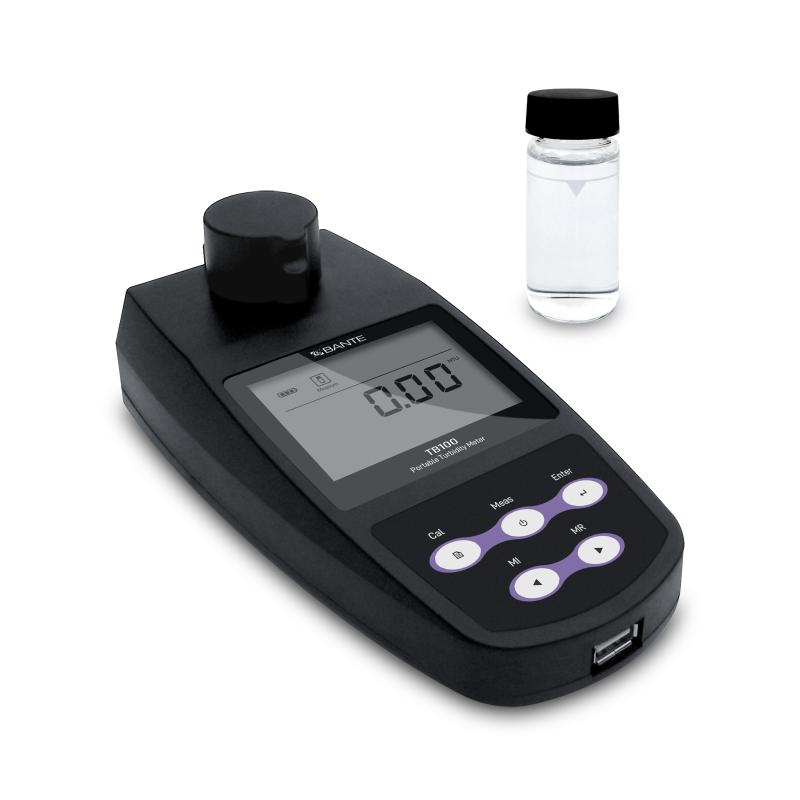

4. Put the sample into Colorimetric flask for measurement.
5. Read and record measurement results.
6. Storage data can be exported through the USB interface.
Notice
• Make sure the meter is accurately calibrated before use.
• Avoid use in environments beyond the operating Temperature range (0~ 60 ° C).

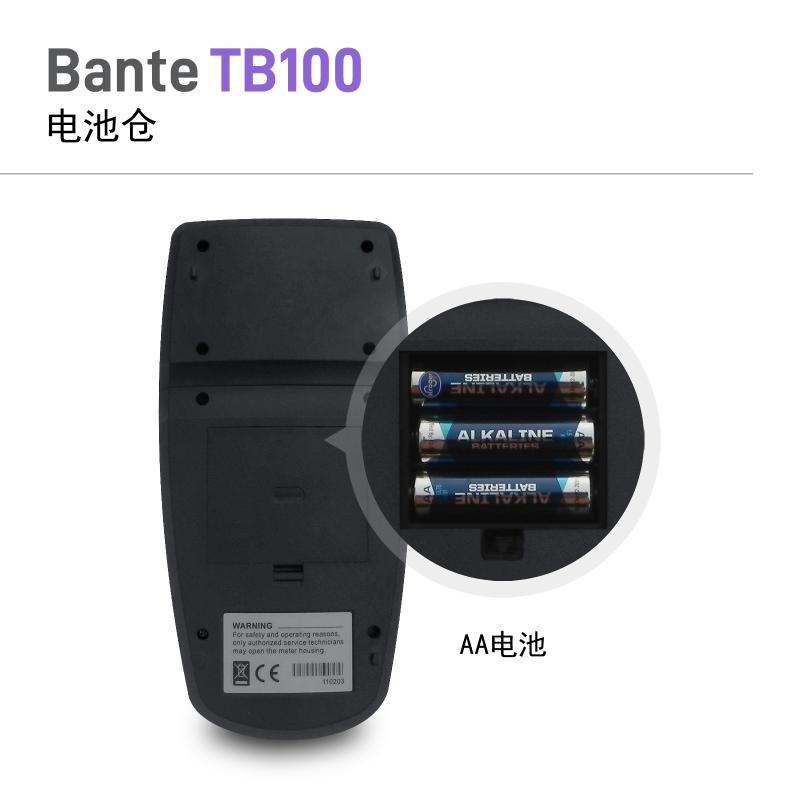

• Regularly check the battery power to avoid affecting the measurement due to insufficient power.
• Keep Colorimetric Bottles clean to prevent contamination from affecting Measurement accuracy.
• Automatically shut down 15 minutes after no button operation to save power.
• Memory capacity when storing data to avoid overflow.
